Carbon & Sulfur Analyzer for Pig Iron
- 30 Set / Sets per Month
- Shanghai or any port in China
- T/T Credit Card
Product Details
Brand Name: | Jinyibo | Place of Origin: | Jiangsu, China |
Product Description

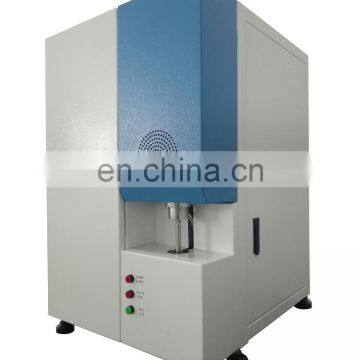

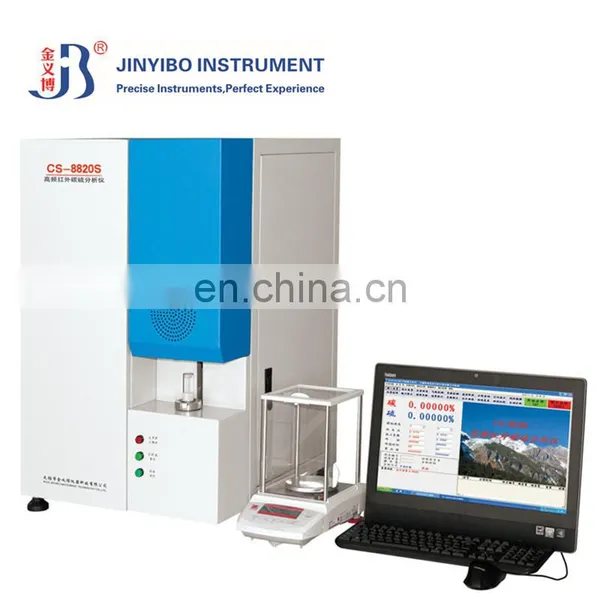

CS8820S High-frequency Infrared Carbon& Sulfur Analyzer
The Newest 2 in 1 Carbon& Sulfur Analysis Instrument
Specification
C: 0.000001%~99.999999%
S: 0.000001%~99.999999%
Integration, super light
High availability, low cost
Long service life, high stability of product
Unique analysis of gas removal device
Full scale linear calibration
Constant temperature of high-temperature furnace
Carbon monoxide conversion
Weak signal detection technology
Summary
CS-8820S is suitable for multi field and all around. Carbon and sulfur analyzer combines with high-frequency induction burner, it is a high-tech product the which based on light, machine, electricity, computer, analytical skills, it has characteristics of wide measuring range and the results of analysis is accuracy and reliable. Because of adopting computer technology, intelligent equipment, screen display, text and data collection, deal with problems and so on have reached the advanced the world level, more industries detect carbon and sulfur elements in this analysis equipment. The key components adopt high quality elements to ensure the instrument stability and high quality.
Applications
CS-8820S High-Frequency Infrared Carbon & Sulfur Analyzer is used to measure mass fraction of carbon and sulfur in steel, iron, alloy, casting core sand, nonferrous metals, cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter, graphite, refractory materials, battery materials, plants and other materials. And mainly used in new energy, metallurgy, mechanical, mine, inspection, nuclear industry, coal, automobile, shipping, aviation, food, aerospace, building materials, university, geology, petrochemical and so on.
Parameters
Item | Index |
Analysis theory | High-frequency furnace burn infrared absorptive detection. |
Range of measurement | C: 0.000001%~99.999999% S: 0.000001%~99.999999% |
Analytical error | Accord with ISO9556/ ISO4935/ JJG395-97 |
Analysis precision | C:≤RSD0.5%. S:RSD≤1.0% |
Sensibility(Min. reading) | 0.01ppm |
Detection point | C:C Pond(can add low C pond) S:S Pond(can add high s pond) |
Time of analysis | 20-60s can setting(usually 35s) |
High-frequency furnace | Power≥2.5KVA—7.5KVA oscillation frequency:20MHz |
Electronic balance | Weight the sample in variable amount Accuracy o reading:0.0001g |
Working environment | Indoor temperature: 10℃~30℃ Relative humidity:<75% Voltage:AC220V±5% Frequency50H±2% |
