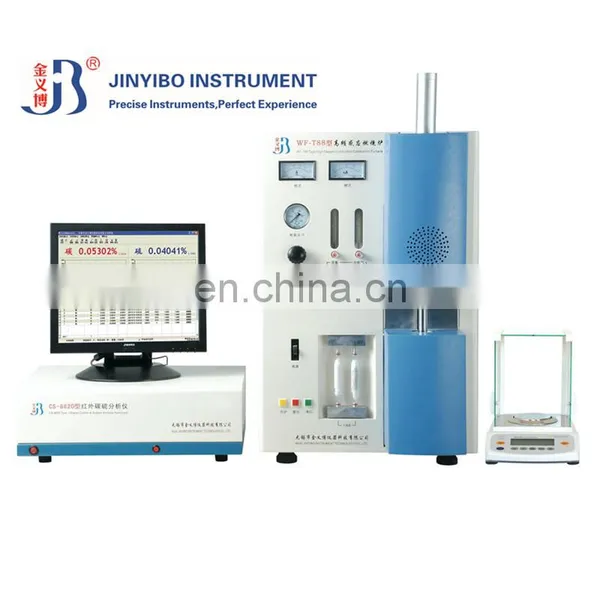

CS-8820 High-Frequency Infrared Carbon & Sulfur Analyzer
Better Carbon & Sulfur Analytical Instrument
Specification
Carbon: 0.0001%-10.0000% (can be expanded to 99.9999%)
Sulfur: 0.0001%-3.5000% (can be expanded to 99.9999%)
Convenient, practical, reliable
Automatic burner cleaning device
It adopts multi-level hidden circuit
Spectral characteristics of high efficiency
Automatic detection of solenoid valve
Simplify design, smaller size
Summary
CS-8820 is suitable for multi field and all around. Carbon and sulfur analyzer combines with high-frequency induction burner, it is a high-tech product the which based on light, machine, electricity, computer, analytical skills, it has characteristics of wide measuring range and the results of analysis is accuracy and reliable. Because of adopting computer technology, intelligent equipment, screen display, text and data collection, deal with problems and so on have reached the advanced the world level, more industries detect carbon and sulfur elements in this analysis equipment. The key components adopt high quality elements to ensure the instrument stability and high quality.
Applications
CS-8800C High-Frequency Infrared Carbon & Sulfur Analyzer is used to measure mass fraction of carbon and sulfur in steel, iron, alloy, casting core sand, nonferrous metals, cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter, graphite, refractory materials, battery materials, plants and other materials. And mainly used in new energy, metallurgy, mechanical, mine, inspection, nuclear industry, coal, automobile, shipping, aviation, food, aerospace, building materials, university, geology, petrochemical and so on.
Parameters
Item | Index |
Measurement Range | Carbon: 0.0001%-10.0000% (can be expanded to 99.9999%) Sulfur: 0.0001%-3.5000% (can be expanded to 99.9999%) |
Sensitivity | 0.1PPM |
Analytical Precision | C:RSD<0.5%;S:RSD<1% |
Analysis Error | Up to standard ofGB/T20123-2006/ISO15350: 2000 |
Analysis Time | Adjustable within 25-60 s (Normally around 35 s) |
High-Frequency Furnace | Power≥2.5kVA, Frequency: 18MHz |
Electronic Scales | Non-quantitative weighing, Reading Precision:0.0001g |
Working Environment | Room Temperature: 10-30℃, Relative Humidity: Less than 90% |
Power Supply | It is required to keep good earthing. Voltage AC220V±5%, Frequency 50Hz±2% |
Oxygen | Purity≥99.5%, Input Pressure: 0.18MPa±5% |

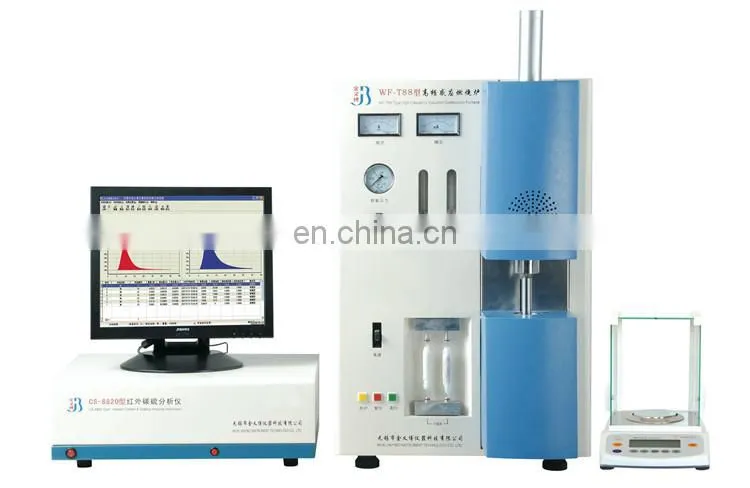

CS-8820 High-Frequency Infrared Carbon & Sulfur Analyzer
