Wavelength Range 190 -1100nm uv vis spectrometer spectrophotometer
Wavelength Range 190 -1100nm uv vis spectrometer spectrophotometer Features:
1.Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.
2.The optional PC software expands the capabilities of the instrument includes Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test, etc.
3.Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
4.Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
5.Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
6.Auto 8-cell holder is optional.
Specifications:
| Model | UV1700 | UV1710 | UV1720 | V1700 | V1710 |
| Optical System | Double beam in proportion; Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | |||
| Wavelength Range | 190~1100nm | 330~1100nm | 340~1050nm | ||
| Spectral Bandwidth | 2nm | 4nm | |||
| Wavelength Accuracy | ±0.3 nm | ±0.5 nm | 1nm | ±0.5 nm | 1nm |
| Wavelength Repeatability | <=0.1 nm | <=0.2 nm | <=0.1 nm | <=0.2 nm | |
| Photometric Accuracy | 0.3%T | 0.5%T | 0.3%T | 0.5%T | |
| Photometric Repeatability | 0.2%T | ||||
| Photometric Range | 0-200%T, -0.3A~3A | ||||
| Stray light | 0.05%T | 0.1%T | 0.15%T | 0.05%T | 0.15%T |
| Stability | ±0.0001A/h @500nm | ±0.0002A/h @500nm | ±0.0001A/h@500nm | ±0.0002A/h@500nm | |
| Baseline Flatness | ±0.002 A | ||||
| Noise | ±0.001 A | ||||
| Wavelength Setting | Auto | ||||
| Light Source | Imported Deuterium & Tungsten lamp | Imported Tungsten lamp | |||
| Display | 128*64 LCD | ||||
| Detector | Imported Silicon Photodiode | ||||
| Output | USB port & Parallel port ( Printer) | ||||
| Power | AC 220V/50Hz; AC 110V/60Hz | ||||
| Dimension | 590*460*220mm | ||||
| Net Weight | 16kg | ||||
| Shipping Size | 700*580*340mm | ||||
| Gross Weight | 20kg | ||||

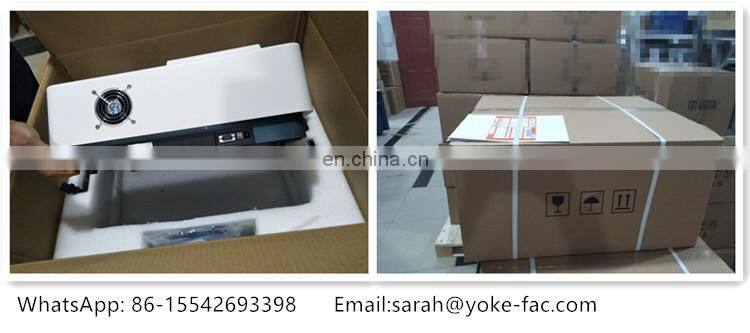

Wavelength Range 190 -1100nm uv vis spectrometer spectrophotometer will be shipped by air,sea or express.
1. 12-month Warranty period
2. Customized product appearance and operation language(OEM available)
3. More competitive price
4. Quality product to CE standard
5. Professional after-sales service training
Yoke Instrument was founded in 2007. we are a specialized manufacturer in producing analytical instruments ranging from Spectrophotometer, Analytical Balance, Moisture Analyzer, PH Meter,Conductivity Meter,Turbidity meter,DO meter,Colorimeter to Stirrer, etc..Our products have been exported to Eastern Europe, Middle East, North America and Asia.
What about the technical support and quality issue?
1.If any questions in installation and operation,we will provide customers for detailed solution or operation video within 24hours.
2.If any parts are broken during warranty period, we will replace for you without charge.
What about the payment?
We accept T/T,LC,western union,moneygram,paypal,Alipay
What about the shipping?
1.For sample order,it will be sent within 7days after payment received by express:UPS,TNT,FEDEX OR by air transportation.
2.For bulk order,goods will be sent within 10-20days by sea or air.
Sarah Wang
Shanghai Yoke Instrument Co., Ltd.
Add: No.22, Lane 5018, Shangnan road, Pudong, Shanghai, China
Mobile/Wechat/Skype/WhatsApp: 86-15542693398
Email:sarah@yoke-fac.com
