Yoke UV1801/1801S Scanning Single-beam UV/Vis Spectrophotometer China

Yoke UV1801/1801S Scanning Single-beam UV/Vis Spectrophotometer China photo-1
US$ 2,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
yoke
Place of Origin:
Shanghai, China
Model Number:
UV1801/1801S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name yoke
Place of Origin Shanghai, China
Model Number UV1801/1801S
Size 590*460*220mm
Weight 25kg
Measurement Range 0.5/1nm/2nm/4nm/5nm
Wavelength Range 190-1100 Nm
Focal Length Contact
Product Description

Yoke UV1801/1801S Scanning single-beam UV/Vis Spectrophotometer China

Product Description:

The host can independently accomplish photometric measurement and quantitative measurement, spectral scanning, dynamics, DNA/protein test, wavelength testing and data printing function, etc.

2.Using the latest ARM system, built-in double operating system in both Chinese and English, can through the USB interface transfer data storage.

Features:

1,Adopt 1200 lines/mm high-performance grating. New light control system makes the instrument light switch more quickly.

2,The instrument adopts 320 * 240 lattice highlighted LCD display, direct display scan map, the screen interface simple, convenient use.

3, With socket tungsten lamp design, it is no need optical debugging when changing lamp.

4,Large sample chamber, Can accommodate 5-100mm various specifications of the cuvettes.

5,Can be directly connected to the printer to print patterns and the experimental data.



Specifications:



Model

UV1801

UV1801S

UV1800

Optical System

Single Beam, Grating 1200 lines/mm

Wavelength Range

190 -1100 nm

Spectral Bandwidth

1nm

0.5/1/2/4/5nm

2nm

Wavelength Accuracy

0.3nm

0.5nm

Wavelength Repeatability

0.1nm

0.2 nm

Photometric Accuracy

±0.3%T

±0.5%T

Photometric Repeatability

0.1%T(0~100%T)

Photometric Range

-0.3-3A

Stray Light

0.05%T@220nm,360nm

Stability

±0.001 A/h @500 nm

Baseline Flatness

±0.002 A

Noise

±0.001 A

Scanning Speed

Fast, Mid, Slow

Wavelength setting

Auto

Keyboard

Membrane keypad

Light Source

Deuterium & Tungsten lamp

Display

320*240 dots LCD

Detector

Silicon Photodiode

Output

USB port & Parallel port ( Printer)

Power

AC 220V/50Hz; AC 110V/60Hz

Dimension

590*460*220mm

520*400*200mm

Weight

25kg

19kg

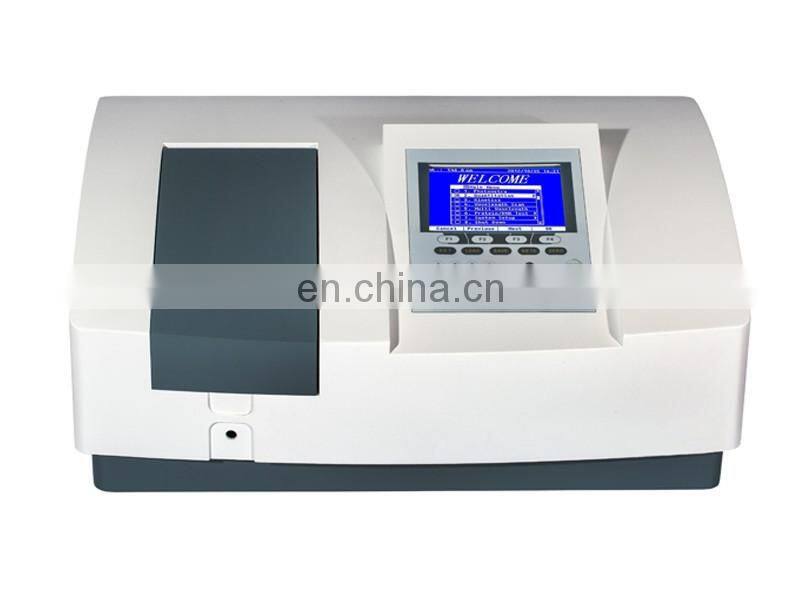

UV1801/1801S spectrophotometer Picture:Yoke UV1801/1801S Scanning single-beam UV/Vis Spectrophotometer China

Packaging & Shipping



Packaging Detail: Packed in  carton for outside

Delivery Time: Within 7 days after payment received

Our Services

1.After sell service: One year warranty

2.Provide OEM/ODM

3.Customized , such as language and appearance etc.

4. Quality problem free returns

Company Information

Shanghai Yoke Instrument Co., Ltd. Was founded in the year 2006, have 200 workers, 25000m2 non dust workshop, 20 development engineers. Yoke instrument passed the Certifications of CE, ISO14001 Environmental Management System as well as ISO 9001 Quality Management System.

 Yoke UV1801/1801S Scanning single-beam UV/Vis Spectrophotometer China

International Exhibition:

Yoke UV1801/1801S Scanning single-beam UV/Vis Spectrophotometer China

Certificate:

Yoke UV1801/1801S Scanning single-beam UV/Vis Spectrophotometer China

FAQ



Q:How about the price?

R:we are  realy manufacture,  Eliminating the middlemen. so We can keep superior quality and competitive offers.
