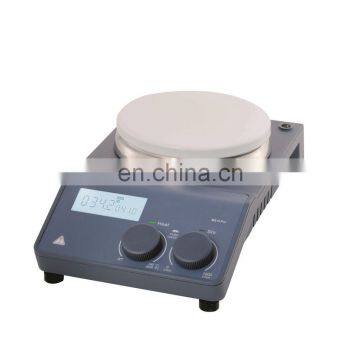

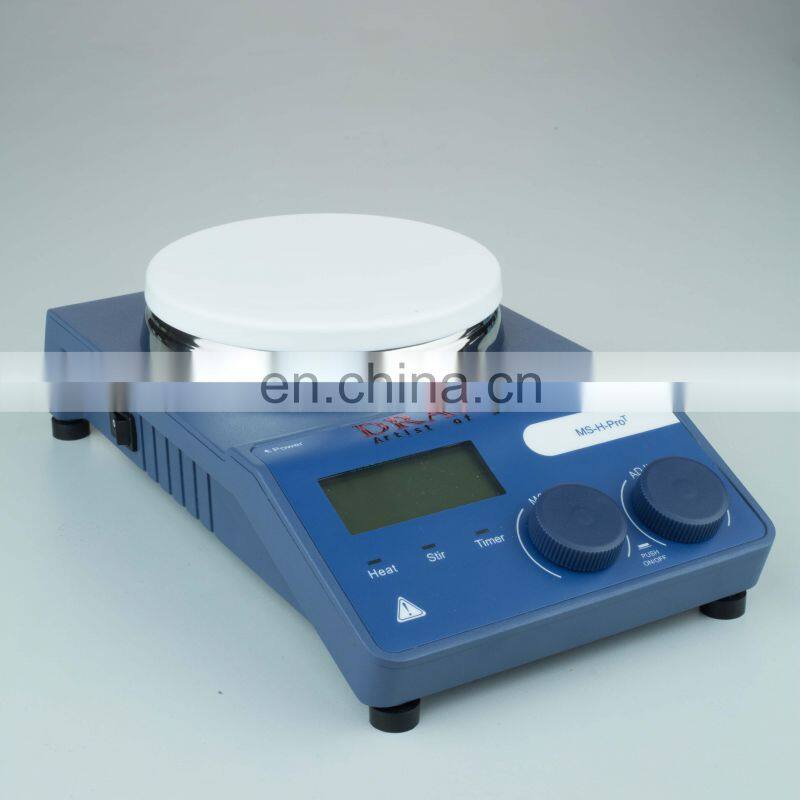

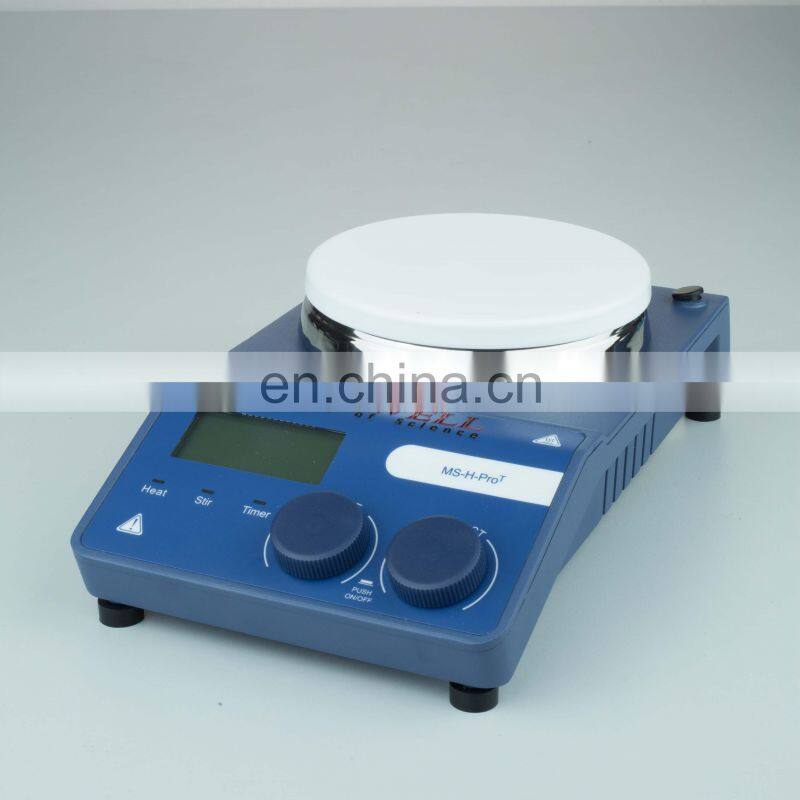

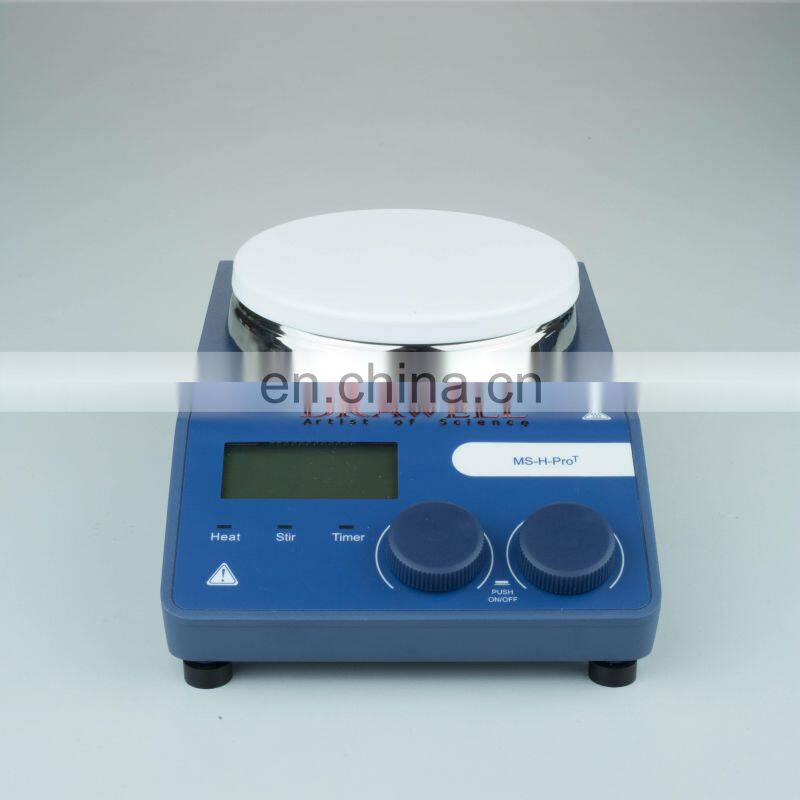

MS-H-PRO+
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
• A wide variety of accessories are available
Specifications |
MS-H-PRO+ |
Work plate dimension |
φ135mm(5 inch) |
Work plate material |
stainless steel cover with ceramic |
Motor type |
Brushless DC motor |
Motor rating input |
18W |
Motor rating output |
10W |
Power |
550W |
Heating output |
500W |
Voltage |
100-120/200-240V 50/60Hz |
Stirring positions |
1 |
Max. stirring quantity[H2O] |
20L |
Max. magnetic bar[length] |
80mm |
Speed range |
100-1500rpm |
Speed display |
LCD |
Temperature display |
LCD |
Heating temperature range |
Room temp.-340°C, increment 1°C |
Temperature control accuracy |
±1°C(<100°C) |
Over temperature protection |
360°C |
Temperature display accuracy |
±0.1°C |
External temperature sensor |
PT1000 (accuracy ±0.2) |
"Hot" warning |
50°C |
Data connector |
RS232 |
Protection class |
IP42 |
Dimension[WxDxH] |
160×280×85mm |
Weight |
2.8kg |
Permissible ambient temperature and humidity |
5-40°C, 80%RH |
