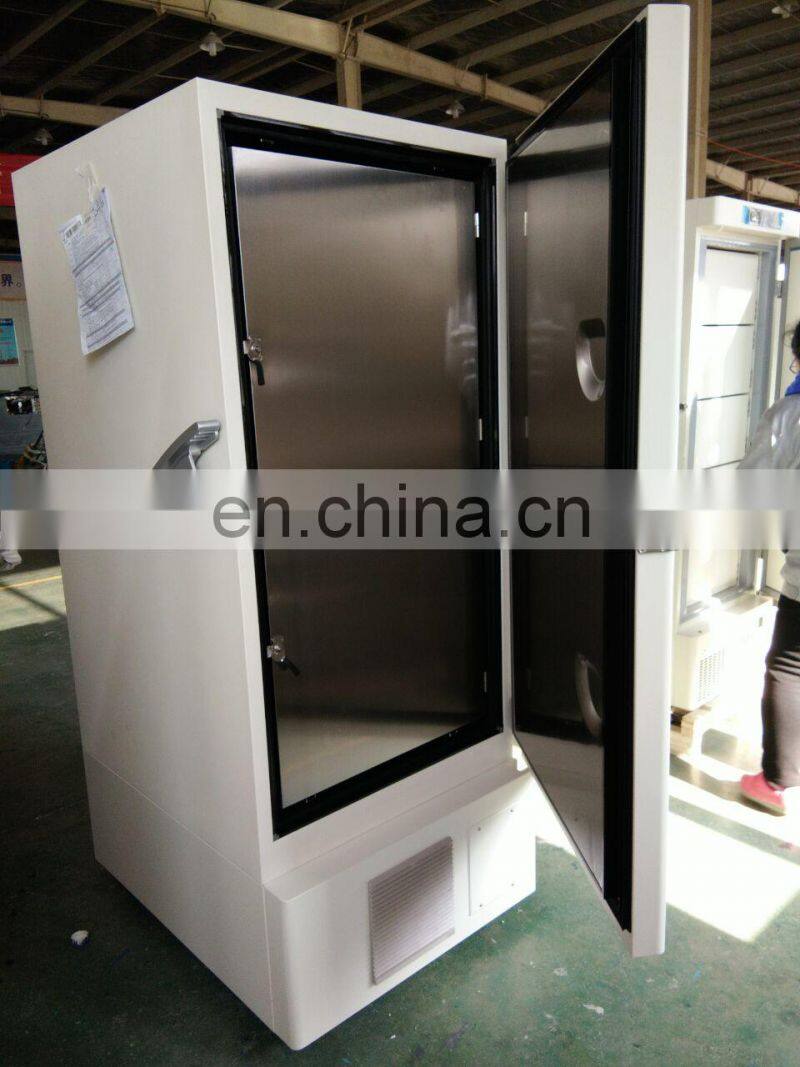

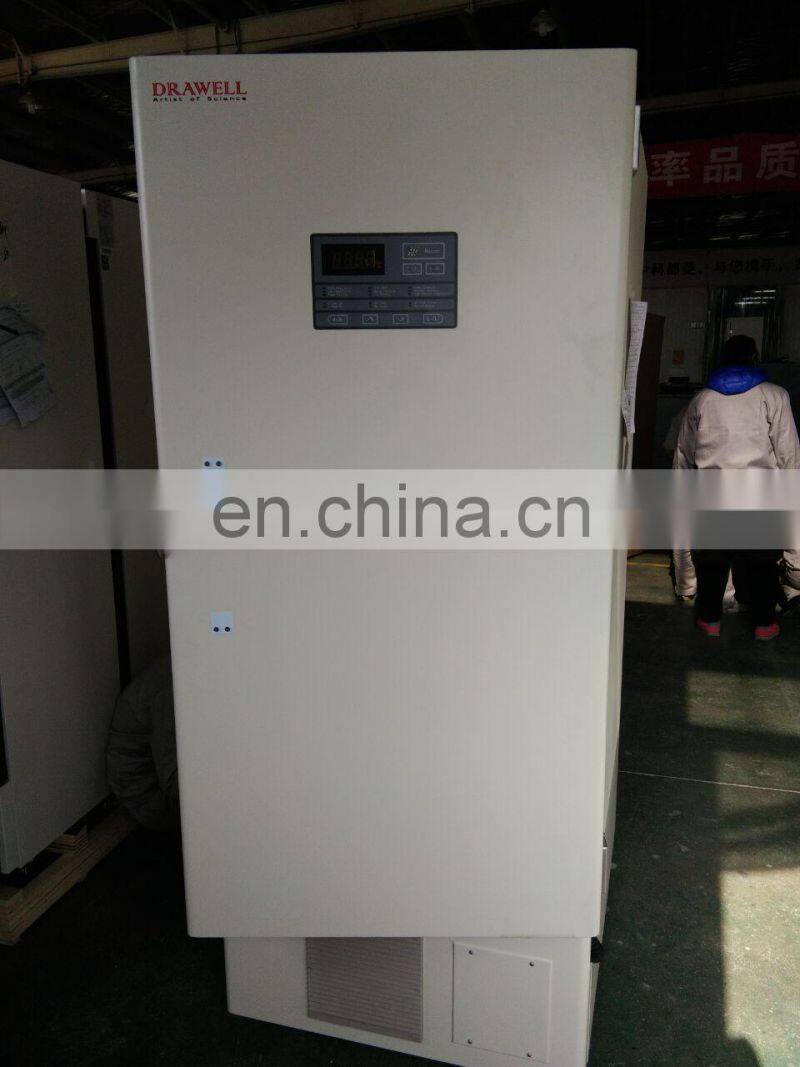

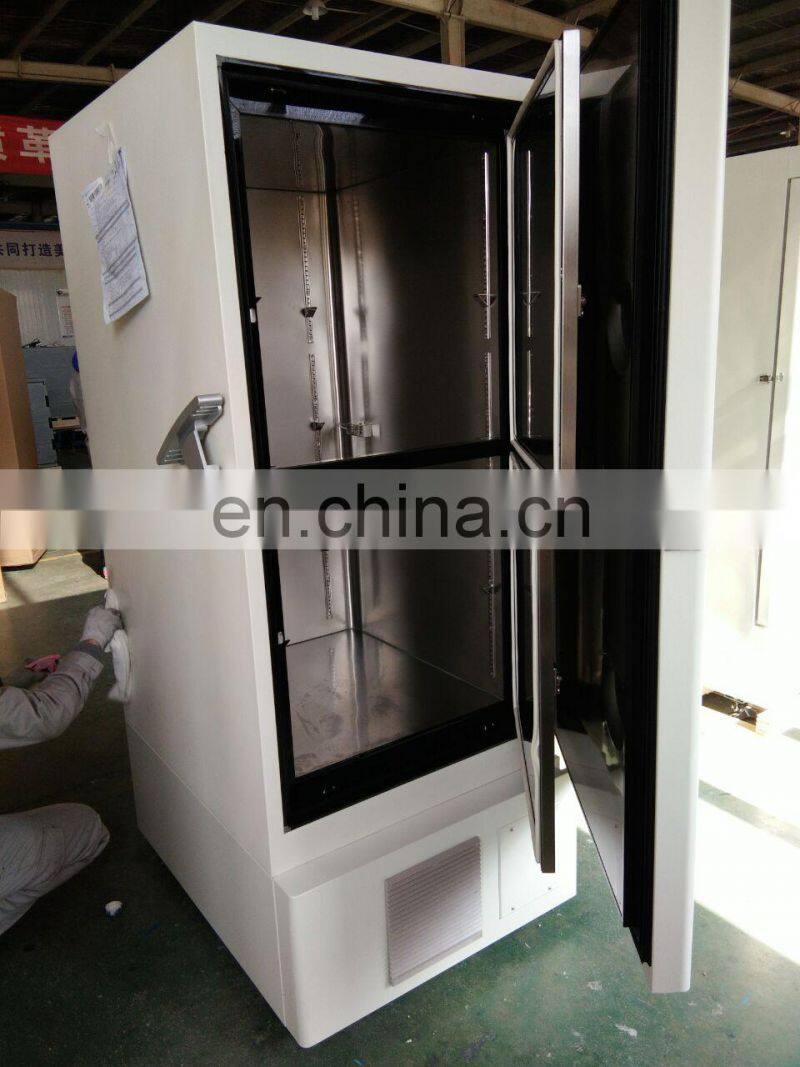

-86C Upright Ultra-Low Temperature Medical Deep Laboratory Super Freezer Refrigerator
- Shanghai
- T/T Credit Card
You May Like
-
-60 Vertical Fridge Freeser With Competitive Distributor Prices
-
50 Liter Upright Medical Refrigerator Freezer
-
MDF-40V50 Series Deep Lab&Medical Freezer Machine China
-
-25 Degree Ultra Low Temperature Cold Storage Refrigerator Freezer
-
Medical Laboratory Low Temperature Ice Refrigerator Freezer -25 Degree
-
DRAWELL BRAND 2~8 Degree Upright Pharmaceutical &Lab Refrigerator
Product Details
| Brand Name | Drawell | Place of Origin | Shanghai, China | |
| Model Number | MDF-86V50 | Certification | CE | |
| Application | Refrigeration Parts | Type | Refrigeration Compressor |
Product Description
-86℃ Upright Ultra-Low Temperature Medical Deep Freezer
MDF-86V50
To store virus, germs, blood plasma, vaccine, blood, skin, bone marrow, sperm, biological products, pelagic products and others.
Suitable for research institute, chemical, military, electronics, piscatorial industries, university labs, pelagic fishery industries and other areas
Temperature Control:
Microprocessor-based temperature controller, -40℃~-86℃ can be set freely, digital temperature display.
High and low temperature alarms, set as needed
Platinum resistance temperature sensor, temperature sensing accuracy
Safety
Alarms: high and low temperature alarms, sensor failure alarm.
Two alarm styles: buzzing, flashing
Keyboard lock, password protection function to avoid set parameter randomly
Operation parameters display, real-time monitoring, ensure the equipment safety stability
Refrigerating System
Imported branded compressor,low noise CFC-free, efficient environmental protection refrigerants
Thick and high density foam layer for thermal insulation
Using single cascade refrigeration system with optimized design, cooling speed, low power consumption, big refrigerating capacity
Humanized Design
Safety lock design prevents any abnormal door status
Wide voltage range, from 187V to 242V
Silent design, suitable for quite environment
Big screen display, easy to read
Double door seal design, lock the air conditioning, strengthen heat preservation effect
Mobile, fixed castor, convenience for the user
Parameter
Model | MDF-86V50 |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |

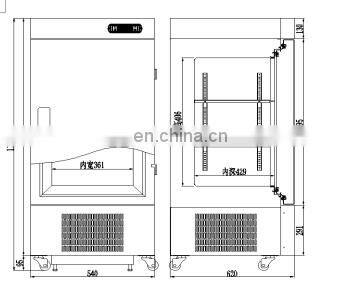

External Size(W×D×H) | 540×620×1115(mm) |
Internal size(W×D×H) | 361×429×406(mm) |
Effect Capacity | 50L |
Net Weight | 75kg |
Rated Power | 450W(220V,50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 1layer,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
MDF-86V158
Parameter
Model | MDF-86V158 |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |

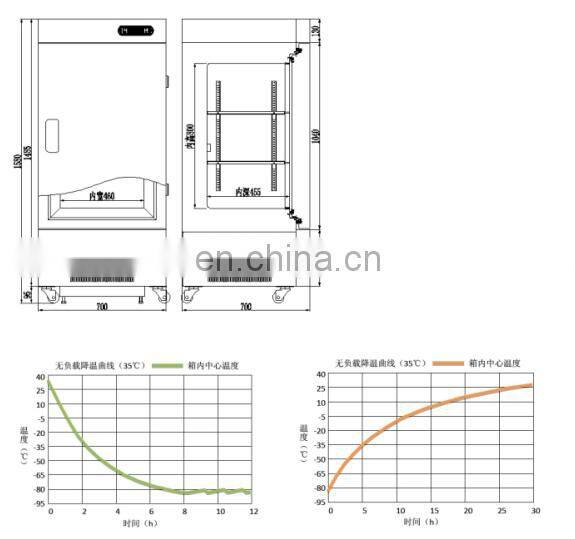

External Size(W×D×H) | 700×700×1580(mm) |
Internal size(W×D×H) | 460×455×800(mm) |
Effect Capacity | 158L |
Net Weight | 130kg |
Rated Power | 630W(220V,50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 2layers,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
MDF-86V398
Parameter
Model | MDF-86V398 |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |

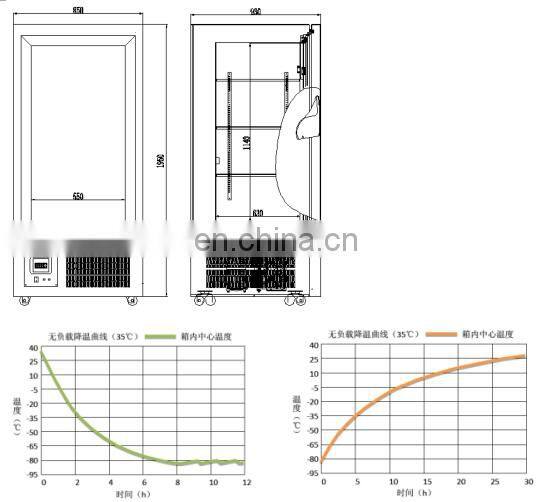

External Size(W×D×H) | 850×930×1950(mm) |
Internal size(W×D×H) | 550×630×1140(mm) |
Effect Capacity | 398L |
Net Weight | 218kg |
Rated Power | 720W(220V,50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 3 layers,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
MDF-86V598
Parameter
Model | MDF-86V598 |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |

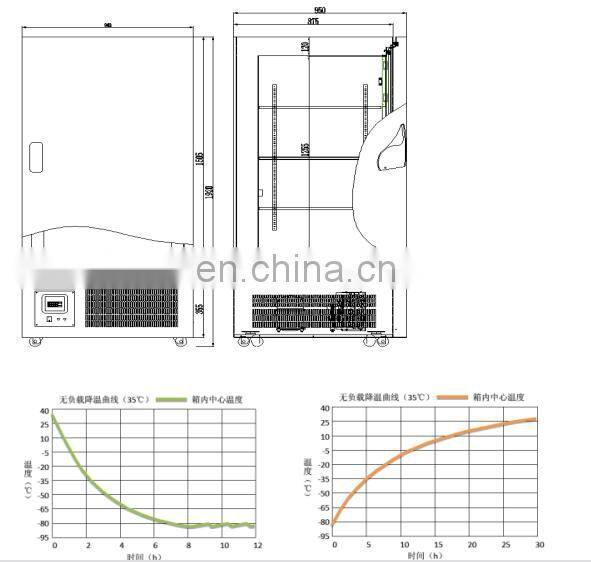

External Size(W×D×H) | 940×950×1920(mm) |
Internal size(W×D×H) | 700×680×1255(mm) |
Effect Capacity | 598L |
Net Weight | 280kg |
Rated Power | 990W(220V/50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 3 layers,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
MDF-86V136
Parameter
Model | MDF-86V136 |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |

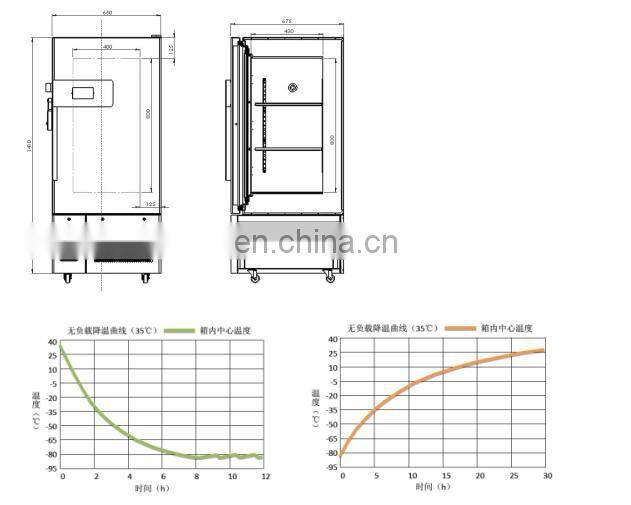

External Size(W×D×H) | 650×675×1920(mm) |
Internal size(W×D×H) | 400×430×800(mm) |
Effect Capacity | 136L |
Net Weight | 120kg |
Rated Power | 470W(220V/50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 2 layers,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
