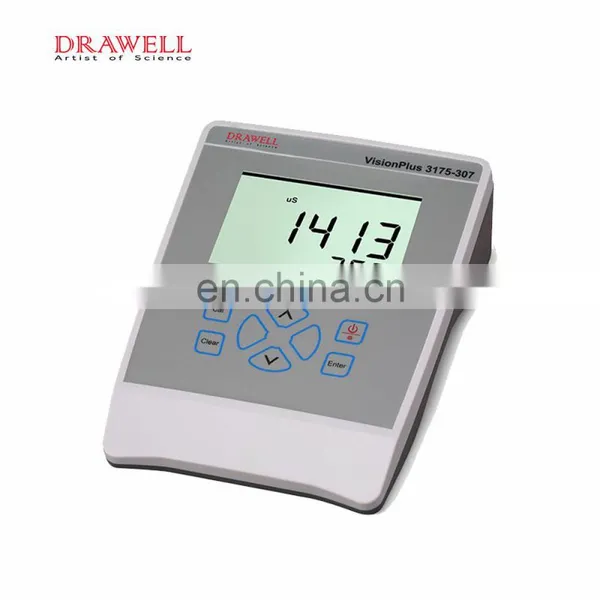

EC/ TDS/Temp Benchtop Meter
VisionPlus DW-EC3175
1. Large LCD displays conductivity and temperature simultaneously with backlight.
2. Convenient one point calibration. Calibration data is stored in memory and is ready for use on power up.
3. Accepts 2-wire conductivity cells with K=0.01, K=0.1, K=1.0 and K=10.0 cell
4. constants for improved flexibility and accuracy.
5. AC adaptor or battery power (low battery indicator).
6. RoHS compliant.
Specifications | ||
Range | Conductivity /TDS(K=0.01) | 0.000~1.999uS/cm; 2.00~19.99uS/cm 0.000~1.999mg/L; 2.00~19.99 mg/L |
| Conductivity /TDS(K=0.1) | 0.00~19.99uS/cm; 20.0~199.9uS/cm 0.00~19.99 mg/L; 20.0~199.9 mg/L |
| Conductivity /TDS(K=1.0) | 0.0~199.9uS/cm; 200~1999uS/cm; 20.00~19.99mS/cm 0.0~199.9mg/L; 200~1999mg/L; 2.00~19.99g/L |
| Conductivity /TDS(K=10) | 0~1999uS/cm; 2.00~19.99mS/cm; 20.0~199.9mS/cm 0~1999 mg/L; 2.00~19.99 g/L; 20.0~199.9 g/L |
| Temperature | 0.0~100.0℃ |
Resolution | Conductivity TDS(K=0.01) | 0.001uS/cm; 0.01uS/cm 0.001mg/L ;0.01mg/L |
| Conductivity TDS(K=0.1) | 0.01uS/cm; 0.1uS/cm 0.01mg/L ; 0.1mg/L |
| Conductivity TDS(K=1.0) | 0.1uS/cm; 1uS/cm; 0.01mS/cm 0.1mg/L ; 1mg/L; 0.01g/L |
| Conductivity TDS(K=10) | 1uS/cm; 0.01mS/cm; 0.1mS/cm 1mg/L; 0.01g/L;0.1 g/L |
| Temperature | 0.1℃ |
Accuracy | Conductivity /TDS(K=0.01) | ±0.5%FS |
| Conductivity TDS(K=0.1) | ±0.5%FS |
| Conductivity TDS(K=1.0) | ±0.5%FS |
| Conductivity TDS(K=10) | ±0.5%FS |
| Temperature | ±0.2℃ |
Reference Temperature | From 15.0 to 25.0℃, default is 25.0℃, | |
Temperature Coefficient | From 0.00 to 4.00%, default is 1.91%. | |
TDS Constant | From 0.30 to 1.00 | |
Electrode Type / Cell Constant | Two wire conductivity cell / 0.01, 0.1, 1.0, 10, default is 1.0. | |
Temp Compensation | Auto / Manual 0.0~100.0℃ | |
Power | 6 X 1.5 Volt AAA batteries or 115 / 230V AC adapter. | |
Operating Ambient Conditions | From 0~50℃, at 90% RH. | |
Case | IP-54 waterproof | |
Weight / Dimensions (W x D x H) | 504 grams (Including batteries) / 150mm x 203mm x 72mm | |
Accessories | ||
TBA | Two-wire conductivity cell with 8 PIN connector, K=0.01 (0.00~20.00uS/cm). /TDS(0.000~1.999mg/L; 2.00~19.99 mg/L) | |
109L | Two-wire conductivity cell with 8 PIN connector, K=0.1 (0.0~200.0uS/cm). /TDS(0.00~19.99 mg/L; 2.0~199.9 mg/L) | |
106L | Two-wire conductivity cell with 8 PIN connector, K=1.0 (0.02~20.00mS/cm) /TDS.(0.0~199.9mg/L; 200~1999mg/L; 2.00~19.99g/L) | |
107N | Two-wire conductivity cell with 8 PIN connector, K=10.0 (1.0~200.0mS/cm). /TDS(0~1999 mg/L; 2.00~19.99 g/L; 20.0~199.9 g/L) | |
6007D115 | 115V AC adapter. | |
6007D230 | 230V AC adapter. | |
007N | Electrode holder arm. | |
Drawell After Sales Service-----Please don't worry, our products are superior in quality, If you have any problems, please feel free to let us know, we are glad to support as below:
* Good quality firstly to avoid any defective products ;
* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;
* We could provide Online instruction ;
* During warranty time, we can send product accessories when you need;
* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );
* Products can be customized according to your requirements;
* Generaly the machine can use 5~10 years for average even longer if you use properly.
