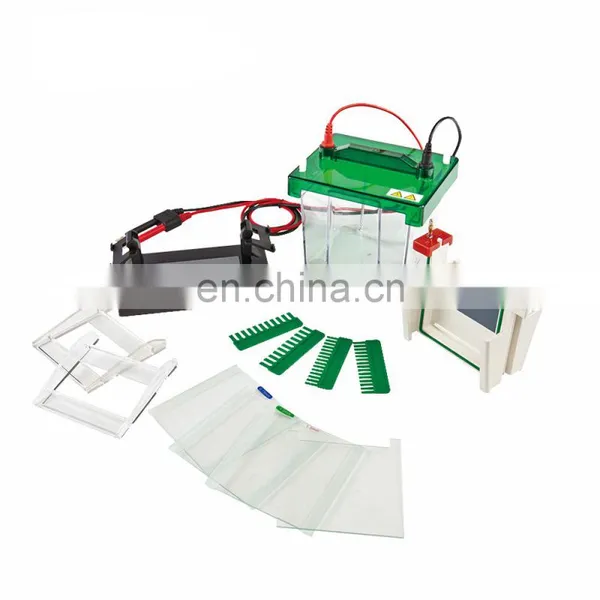

DW-SCZ2+ Vertical Electrophoresis system

Vertical Electrophoresis DW-SCZ2+

Technical specifications

Glass plate size(W×L):100×100 mm

Gel Size(W×L):82x88 mm

Gel thickness:0.75 ,1.0, 1.5(mm)

Gel amount:1~2(pieces)

Sample volume:(0.75mm)11,15 wells;(1.0mm)11,15wells;(1.5mm)11,15wells

Buffer Volume:~750(ml)

Dimension(L×W×H):150x120x115(mm)

Net weight:1.5(kg)

Characteristic features

• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.

• With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.

• High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.

• Safety cover open button design, convenient opening the cover.

• With the background color, easy to be observed in the sample adding and electrophoresis process.

• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

• Auto-switch-off when the lid is removed.
