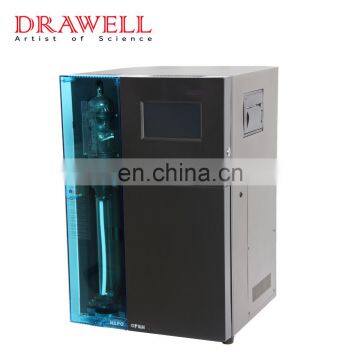

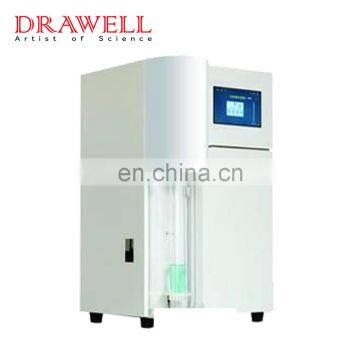

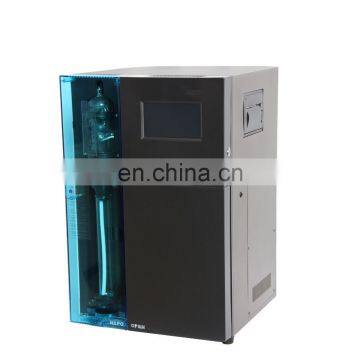

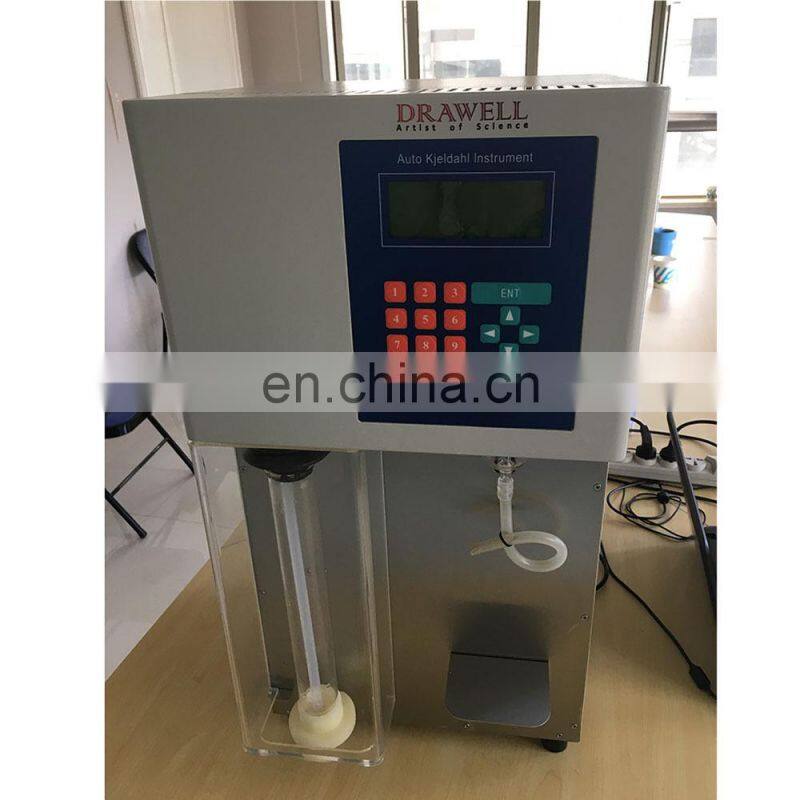

ATN-1100 Automatic Kjeldahl Nitrogen Analyzer

ATN-1100 Automatic Kjeldahl Nitrogen Analyzer

ATN-1100 automatic nitrogen analyzer is the company according to the international common Kjeldahl method designed a top automatic nitrogen analyzer (including automatic distillation and titration system), mainly used to detect food, food, milk Nitrogen, protein, ammonia, phenol, volatile fatty acids, cyanide, sulfur dioxide, ethanol and the like in products, beverages, feedstuffs, soils, water, drugs, sediments and chemicals. Detection methods in line with national standard, AOAC, EPA, DIN, ISO and so on.

ATN-1100 Automatic Kjeldahl Nitrogen Generator Features:

1, automatic distillation, titration, calculation, printing, waste, cleaning system;

2, the titration system using the authority of the world approved the organization to determine the end of the color method, easy to maintain;

3, the use of large-screen color touch screen, friendly man-machine dialogue, the operation process is easy to understand;

4, can switch between automatic analysis and manual analysis of two modes of work to meet the various requirements of customers;

5, improve the security system: digestion tube absent tips, security gate absent tips, steam oven over-temperature protection;

6, high-precision imported liquid pump and titration system to ensure that the experimental results are accurate, stable and reliable performance.

ATN-1100 automatic Kjeldahl nitrogen generator technical parameters:

Determination of varieties:   Food, food, dairy, beverages, feed, soil, water,  drugs, sediments and chemicals

Measuring range:                                   0.1mgN~240mgN

Determine the amount of sample:         Solid ≤ 5g / unit    Liquid ≤ 20ml / unit

Recovery:                                        better than 99.5%

Repeatability:                                        ≤  ± 0.5%

Minimum titration volume:                  0.5ul / step;

Distillation rate:                                   4 to 8 minutes / sample

Data storage:                                        3000group

Cooling water consumption:               1.5L / min

Cooling water requirements:                ≤ 20 ℃

Power:                                               220V 50Hz

Power:                                                1800W

Dimensions:                                         380 * 400 * 820mm

Weight:                                                  36kg
