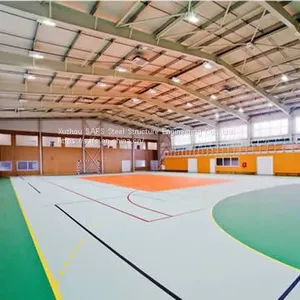

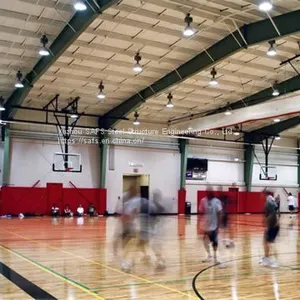

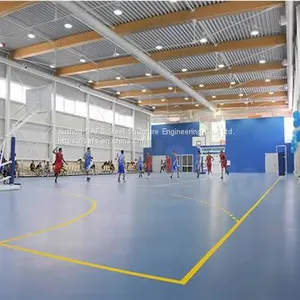

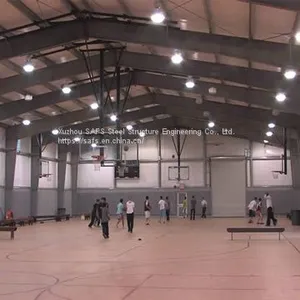

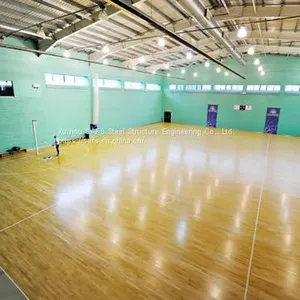

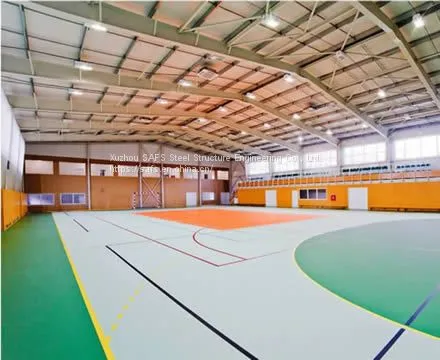

Help CenterPortal Steel Structure Indoor Gymnasium
Related Products
-
Portal Steel Structure Warehouses LogisticUS$ 30 - 80MOQ: 200 Square Meters -
Gas Station Roof DesignUS$ 30 - 80MOQ: 200 Square Meters
-
Rack Automated WarehousesUS$ 30 - 80MOQ: 200 Square Meters
-
Petrol Station Canopy DesignUS$ 30 - 80MOQ: 200 Square Meters
-
Easy Installation Steel Space Frame Petrol Station CanopyUS$ 30 - 80MOQ: 200 Square Meters
| Standard: | AiSi, ASTM, bs, DIN, GB, JIS | Grade: | Q235/Q345 Carbon Steel |
| Place of Origin: | jiangsu,China | Brand Name: | SAFS |
| Model Number: | Steel Structure Gym / Stadium / Sport Hall | Type: | Light, Light Steel Structure Frame |
| Application: | gym,stadium/sportshall,/Gymnasium/Hangar/Warehouse/workshop/sheds/poultry house /office building | Tolerance: | ±1% |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Product name: | Steel Structure Gym / Stadium / Sport Hall |
| Main structure: | Section Coulmn | Purlin: | C/Z Galvanized Steel(Q235) |
| Surface treatment: | Painting or Galvanizing | Wall&Roof panel: | Steel Sheet or Sandwich Panel |
| Structure type: | Light Portal Frame Structure | Certificate: | ISO9001:2008 ISO14001:2004 |
| Life span: | Up to 50 Years | Drawing design: | SAP2000/AutoCAD /PKPM /3D3S/TEKLA |
Supply Ability: 100000 Square Meter/Square Meters per Month steel structure Gymnasium
Packaging Details

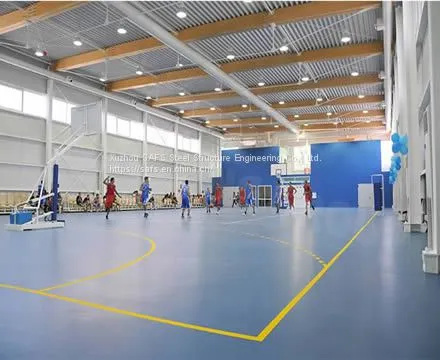

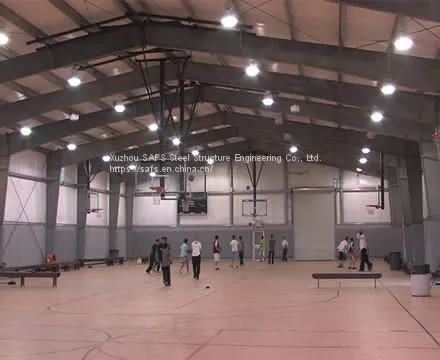

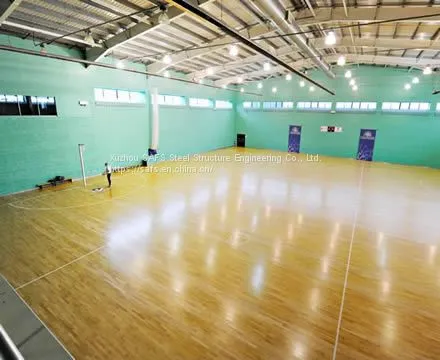

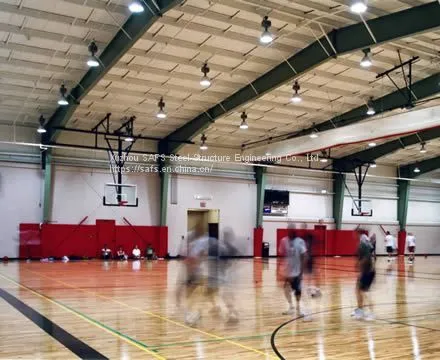

Portal Steel Structure Indoor Gymnasium
1) Steel structure components will be in nude packaging with proper protection.
2) Sandwich panels will be packed with plastic film.
3) Doors and windows will be packed with bubble plastic.
4) Bolts and other accessory will be packed in wood boxes.
Normally is 40’HQ and 40’OT container.
If you have specifical requirements,40GP and 20GP container is ok.
Port
QINGDAO PORT/LIANYUNGANG PORT/SHANGHAI PORT
Lead Time :
Quantity(Square Meters) 1 – 2000 2001 – 5000 5001 – 10000 >10000 Est. Time(days) 25 35 45 To be negotiated
1) Customized design is welcomed.
Welcome to send us your drawings,we will quote you within 1 day.
A. Customers have the drawings
We can provide you the full service of production, shipment and Installation guide, which is high quality and low cost. Because we
own all kinds of technical facilities, complete test instruments and advanced production processes.
B. No drawings
Our excellent design team will design the light steel structure Gymnasium/warehouse/workshop/poultry house/hall for you.
2) We have an excellent design team. According to the requirements of different projects and clients,we will supply different designs and steel products.In order to give you an exactly quotation and drawings, please let us know the following informations. We will quote for you promptly.
Basic design requirements of steel structure indoor Gymnasium
| Basic Design Requirements | ||
| 1.Project location | 5.Length (side wall,m) | 9.Window quantity, size |
| 2.Snow load | 6.Width (end wall, m) | 10.Door quantity, size |
| 3.Wind load | 7.Wall Height (eave, m) | 11.Brickwall needed or not. If yes, 1.2m high or 1.5m high |
| 4.Seismic magnitude | 8.Middle column allowed or not | 12.Crane needed or not |
13.Thermal insulation. If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former. | ||
Engineering Design Software:
AutoCAD,PKPM,MTS,3D3S,Tarch,Tekla Structures(Xsteel)V12.0.etc
Portal Steel Structure Indoor Gymnasium
| Items | Specifications | |
| Main Steel Frame | Column | Q235,Q345 Welded H Section Steel |
| Beam | Q235,Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z Purlin |
| Knee Brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical & Horizontal support | Q235 Angle Steel,Round Bar or Steel Pipe | |
| Maintenance System | Roof Panel |
EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel Corrugated Steel Sheet |
| Wall Panel |
EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel Corrugated Steel Sheet |
|
| Accessories | Window | Aluminum Window, Plastic Steel Window |
| Door | Aluminum Door, Rolling Metal Door | |
| Rainspout | PVC | |
| Fastener | High Strengh Bolts,Normal Bolts,Chemical Bolts | |
| Ventilation System | Natural Ventilator,Ventilation Shutters | |
| Live Load on Roof | In 120kg Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-Resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature -50°C~+50°C | |
| Certification | CE, SGS,ISO9001:2008,ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
Quick and flexible assembly.
All the components will be prefabricated in the factory before transported to the construction site. The installation process is quick and easy.
Cost- effective.
It will significantly shorten the construction period of your buildings, saving a great deal of time and money.
High safety and durability.
The steel structure has light weight but high strength, which is also easy to maintain. It can be utilized for over 50 years.
Optimal design.
The prefab steel workshop can be isolated against outdoor environments as well as avoid any leak like water seepage. It also has excellent fire resistance and corrosion resistance.
High utilization.
It is easy to move and relocate steel structure, which can also be recycled without pollution.
Solid construction.
The steel structure fabrication workshop is capable of withstanding the attack of strong winds and heavy snow. It also has excellent seismic performance.
