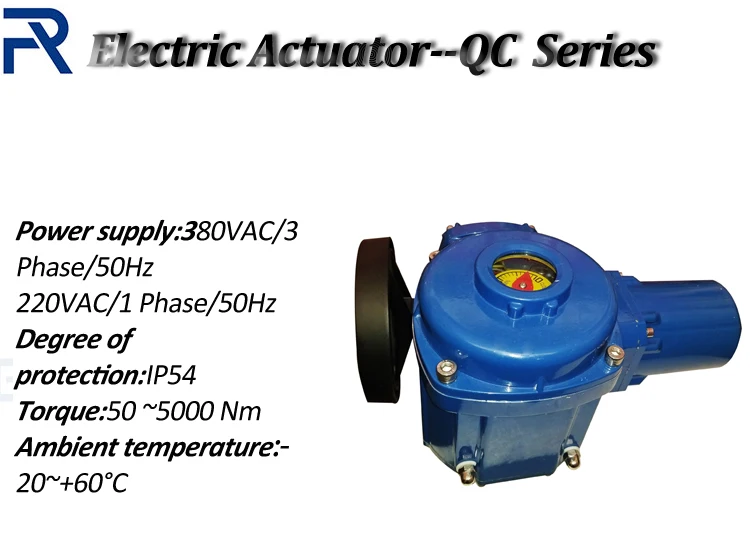

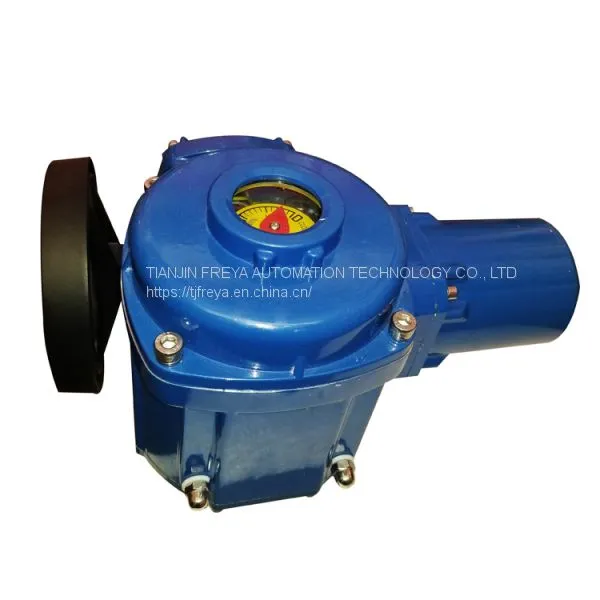

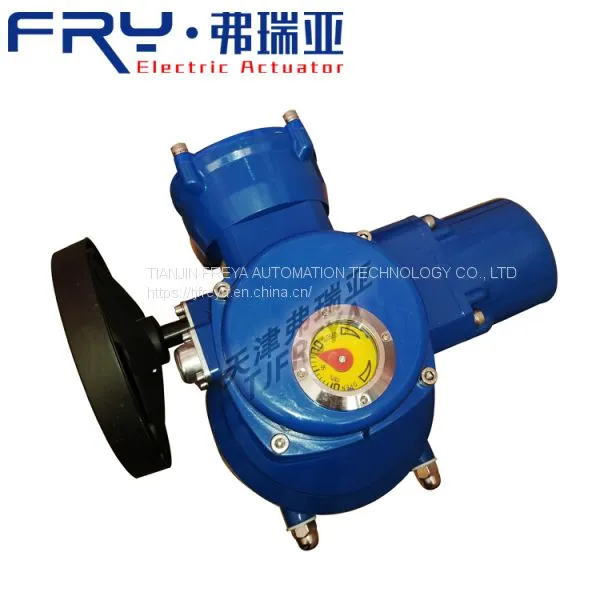

Actuator for butterfly valve QC10-1 QC20-1 QC30-1

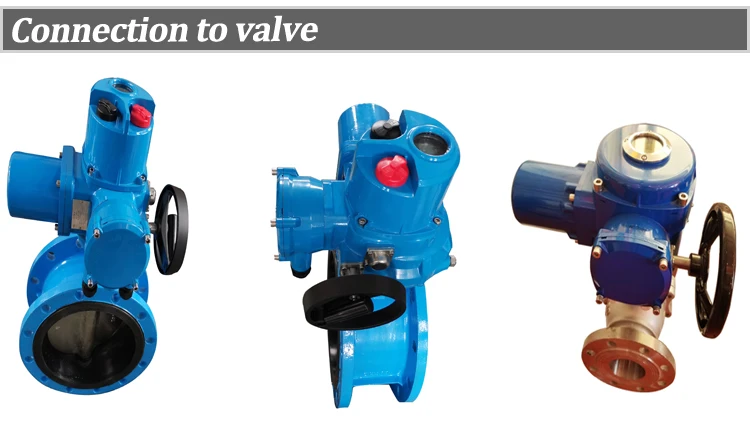

The QC series part-turn (quarter turn) electric actuator adopts a direct-connected structure and can be easily matched with the valve. It is suitable for valves with a valve flap of 90°rotation, such as butterfly valves, ball valves, plug valves, dampers, etc Use of the product. This product can realize remote control of opening and closing of valves and on-site operation control, etc. It is an indispensable driving device for electric valves. The product has the characteristics of comprehensive functions, reliable performance, small size, light weight, convenient use and maintenance, etc. Welcomed by the majority of users, it is widely used in petroleum, chemical, shop, metallurgy, papermaking, water treatment and other industries.

QC series part-turn electric actuators are divided into: standard type and explosion-proof type.

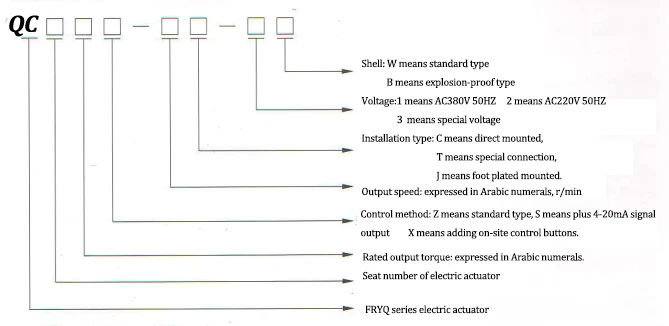

Model representation method:

For example:QC3110Z-0.5C-1W

QC3 means that the electric actuator is divided into quarter turn, the No. 1 cabinet, the output torque is 100Nm, the control method is standard, the output speed is 0.5 rpm (90°rotation time is 30 seconds), and the installation type is direct mounted , The motor power supply is AC380V 50HZ and the shell is standard.

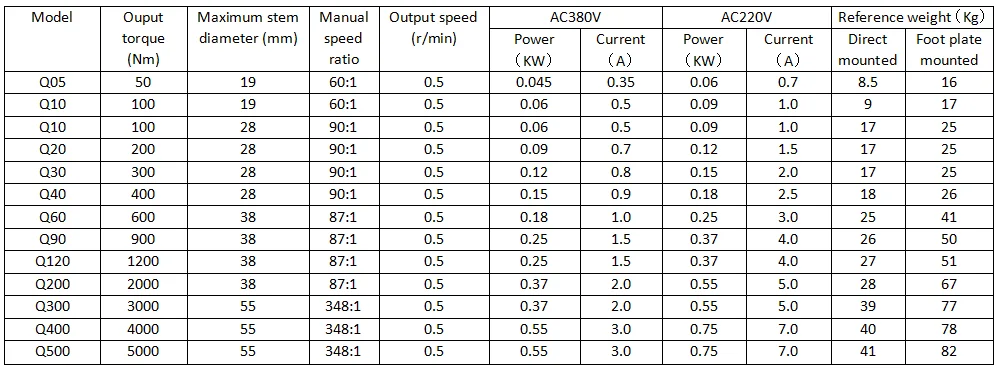

 Note: 1. Under rated voltage, the ratio of motor locked-rotor current to rated current is 7, and its tolerance is +20% of the guaranteed value.

            2. If there are special requirements, our company can provide other speeds:

0.25/1/2/3/4 (r/min), etc.

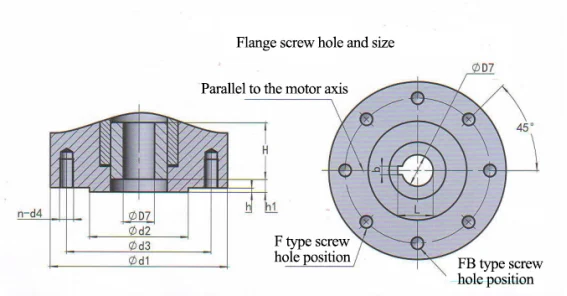

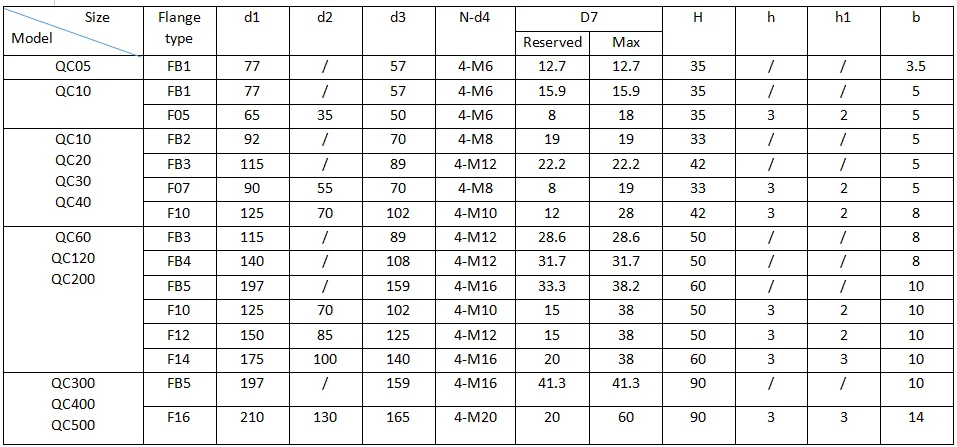

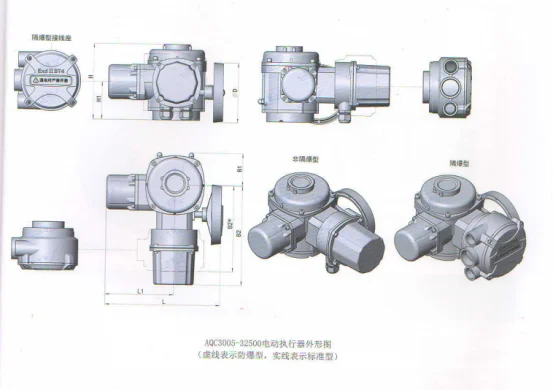

Dimensions
