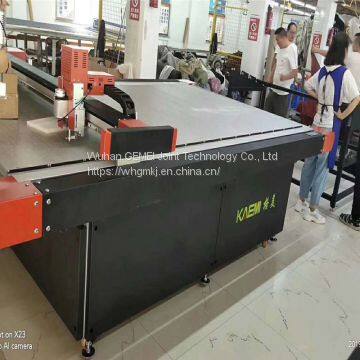

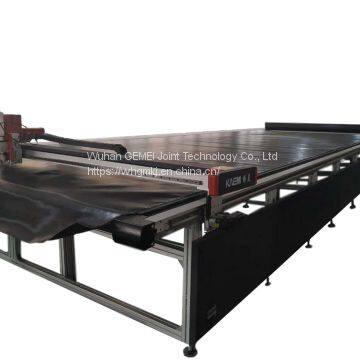

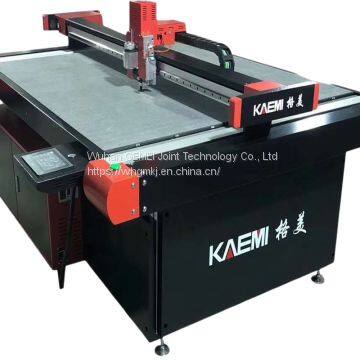

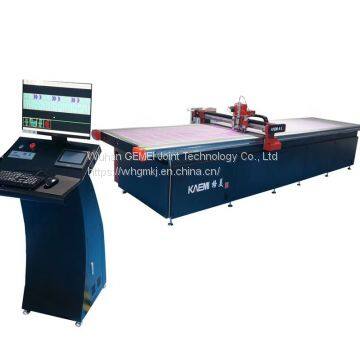

Fabric Cutter CNC Digital Cutter 2500*1600mm Cutting Scope High Quality Cutting Machine Long Cutting Table

FOB Price

USD $12850 - $13950 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or Any Other China Port
Payment Terms:T/T Credit Card Other Cash Escrow
Delivery Detail:3 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	KAEMI or GM	Place of Origin:	China	Model Number:	GM2516DK5
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Nice Cutter CNC Digital Cutter Single Ply Fabrics Textile Garment Cutting Machine

Product Description

Main Features

1. Continuous Feeding System 2.Independent Operator-Touch Screen Control 3.Various Scissors/Punching Devices 4.Digital Image Cutting Positioning System 5.Mordular Partition Table and All-alumnium Profile Fuselage 6.Imported Servo Motor/Drive System 7.Remote Wireless Remote Control Operating System 8.Intelligent Suction Zoning System

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window(Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension(mm)	342023501220	342025501220	392023501220
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials(Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board,Various Fiber Composite Materials, etc
Cutting Speed	100mm~1200mm/s (Speed Varies According to Cutting Materials)
Pen Type/Knife Type	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M(Can butter more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Way	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc

Company Profile

Wuhan Gemei Joint Technology Co., Ltd.

 is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

FAQ

1. Q: Are you a manufacturer? A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years. 2. Q: How do you pack these products? A: Usually packed in wooden case and can pack according to export standard or your requirement. 3. Q: Is it customizable? A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements. 4.Q: After-sales service A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype 5.Q: What is your lead time? A: Spot goods usually take 2-4 days, and customization takes 5-7 days

Contact Us

Wuhan GEMEI Joint Technology Co., Ltd: Contact nameRobin Deng; Phone86-027-83566125; AddressHuangpi Wuhan,Hubei
