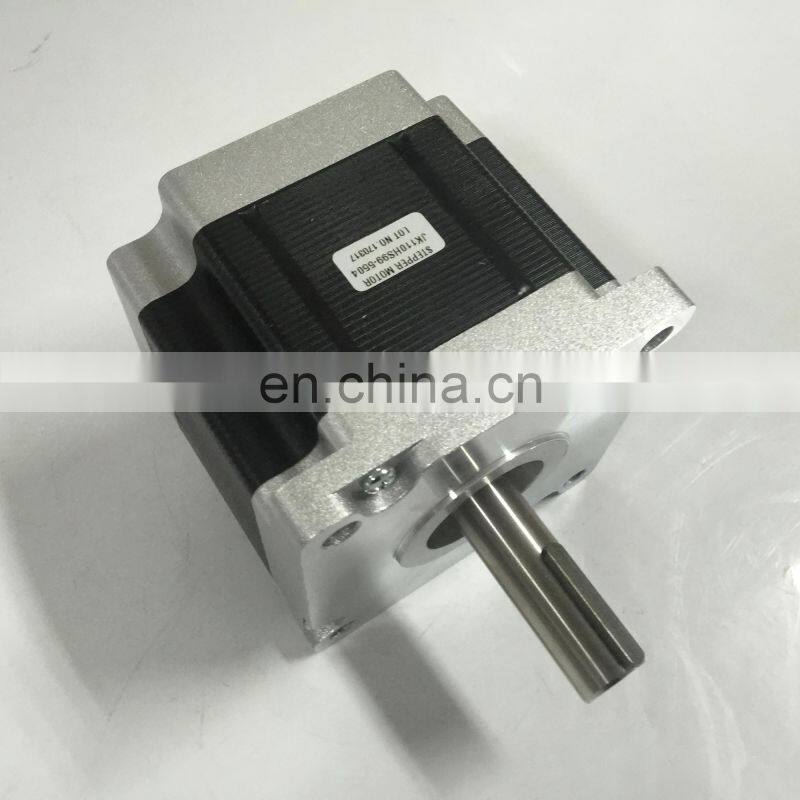

nema 42 size 110mm high power stepper motor
- Shanghai
- T/T Credit Card
You May Like
-
SM42HT47-1684 nema 17 bipolar DC stepper motor, with Holding torque 5kg.cm 70oz.in
-
0.9 degree size 35mm nema 14 stepping motor
-
nema 24 stepper motor CNC stepper motor kit holding torque upto 3Nm
-
nema 34 86mm stepper motor hybrid type
-
nema 23 stepper gear motor; 57HTJB Gearbox Stepping Motor
-
3.6 degree Nema 17 Size 42mm High Torque Hybrid Stepping Motor
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | SM110HT | |||
| Certification | CE, ROHS |
Product Description
1.8°Nema 42, Size 110mm High Torque Hybrid Stepping Motor
Technique Parameter
Item | Specifications |
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°C Max.(rated current,2 phase on) |
Ambient Temperature | -20°C ~+50°C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 1800VAC , 1s , 5mA |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 220N (20mm from the flange) |
Max. axial force | 60N |
Technique Specification
Model No. | Current | Resistance | Inductance | Holding | # of Leads | Rotor | Weight | Detent | Length |
Single shaft | A | Ω | mH | N.m | # | g-cm2 | kg | kg-cm | mm |
SM110HT99-5504A | 5.5 | 0.9 | 12 | 11.2 | 4 | 5500 | 5 | 3 | 99 |
SM110HT150-6504A | 6.5 | 0.8 | 15 | 21 | 4 | 10900 | 8.4 | 5.9 | 150 |
SM110HT201-8004A | 8 | 0.67 | 12 | 28 | 4 | 16200 | 11.7 | 7.5 | 201 |
Dimensions
Wiring
