Home > Electrical & Electronics > Electric Motor > DC Motor > 42mm Brush dc Motor With 12ppr Magnet Encoder, Used for Door Opener and Door Closer

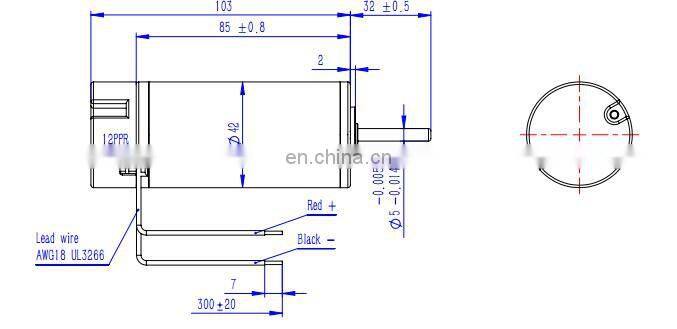

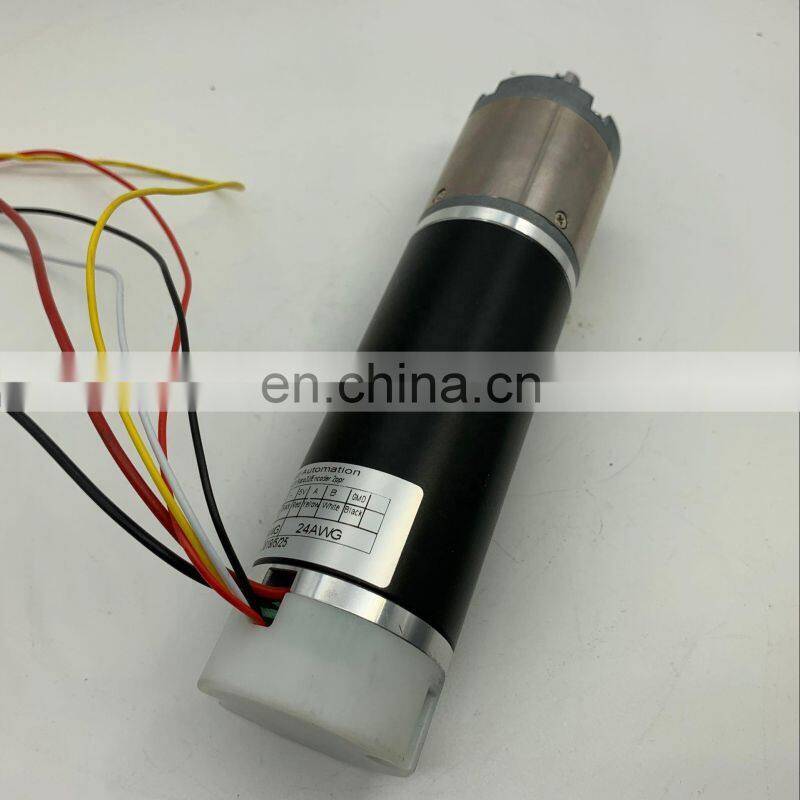

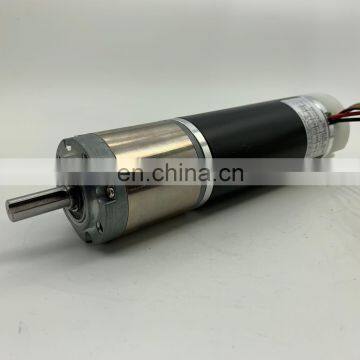

42mm Brush dc Motor With 12ppr Magnet Encoder, Used for Door Opener and Door Closer
US$ 6 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42ZYT
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
52mm Brushed Electric Dc Motor Equivalent to Gr53 Upto 200wUS$ 7 - 20MOQ: 5 Pieces -
63mm Replace Gr63 Brushed Dc Motor Specification, Power 50w 100w 150w 200wUS$ 8 - 40MOQ: 5 Pieces
-
Automatic Stair Lifting Gate Lifting DC Motors, Worm Gear Version OptionUS$ 15 - 80MOQ: 3 Pieces
-
Nema23 Flange Dc Brushed Motor Rated 12v 24v 36v 48v With Nema 23 FlangeUS$ 7 - 20MOQ: 5 Pieces
-
Good Quality Long Life Brush Dc Motor, Customized Specification, Size 30mm - 90mm, Power 10w - 800w, to Replace Dunker PittmanUS$ 5 - 49MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42ZYT
Type
Micro Motor
Certification
CE, ROHS
Torque
39mNm ~ 100mNm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
customed
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
WE CAN MAKE CUSTOMED SHAFT, PERFORMANCE AND MOTOR ADDERS
OPTION FOR ASSEMBLED WITH GEARBOX
