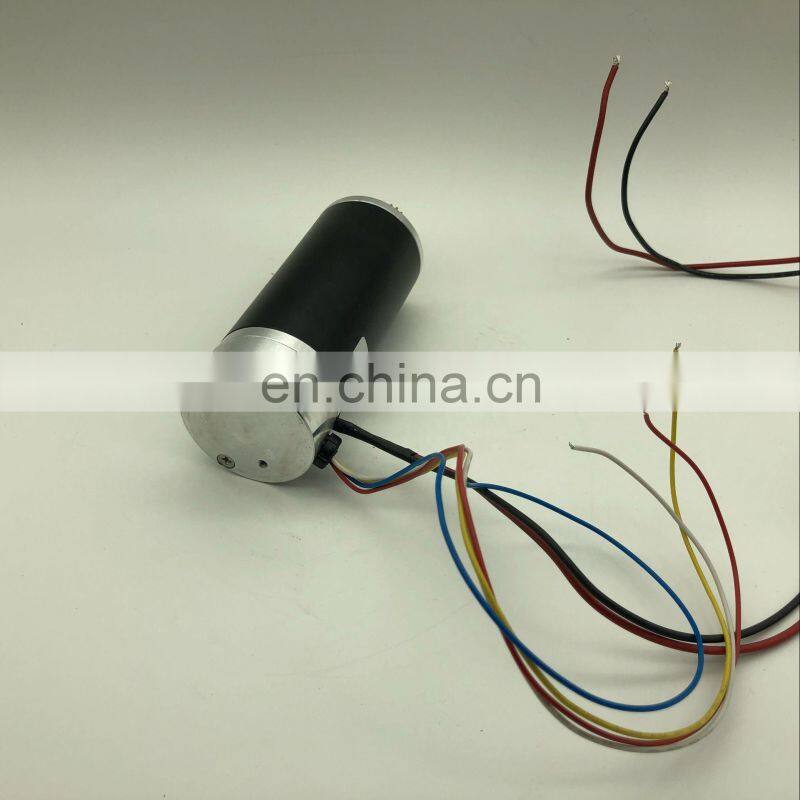

Magnetic Pulse Generators 2ppr Encoder Used for dc Motors
US$ 10 - 30
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
63mm 12v 24v Hydraulic Pumps dc Motors
-
Hall Effect Two Channel Magnet Encoder 2ppr for DC Motors Gr42 Gr53 Gr63 Gr80
-
Equivalent to Gr63x55 Brushed dc Motor 3350rpm 100w Single or Dual Shaft
-
48v Dc Planetary Gear Motor Rated 15Nm 72rpm 113w, With Electromagnetic Brake
-
OD76mm 12v Brushed Dc Motor for Water Pump 2100rpm 0.3Nm , Medical Application
-
42mm Brush dc Motor With 12ppr Magnetic Encoder, Option for Gearbox Assembled
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 39mNm ~ 500mNm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12, 24~40v | Output Power | customed | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
BELOW ARE ONLY TYPICAL MODELS.
WE CAN MAKE CUSTOMED SHAFT, PERFORMANCE AND MOTOR ADDERS

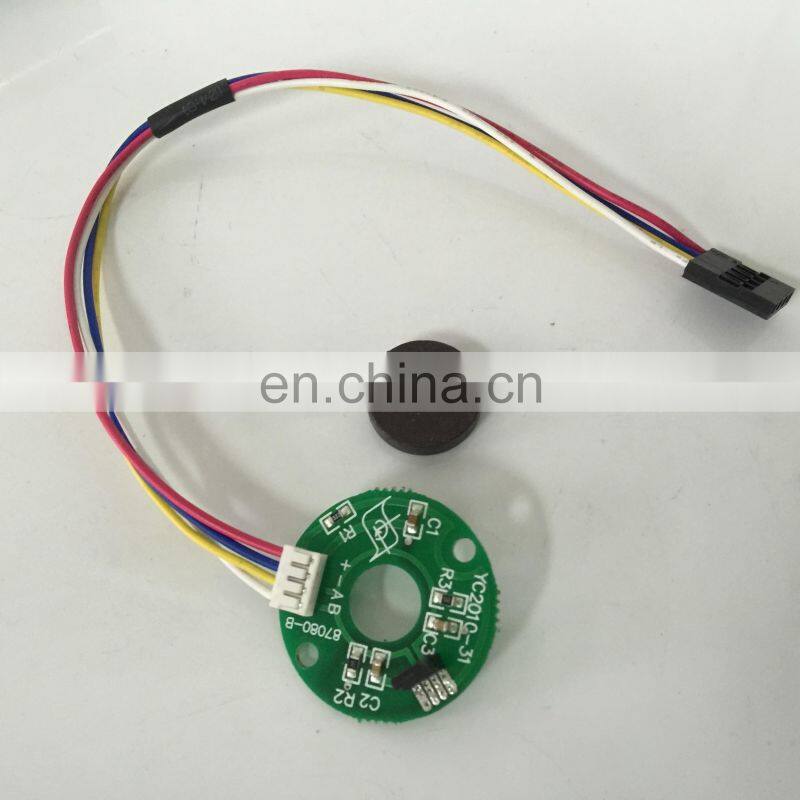

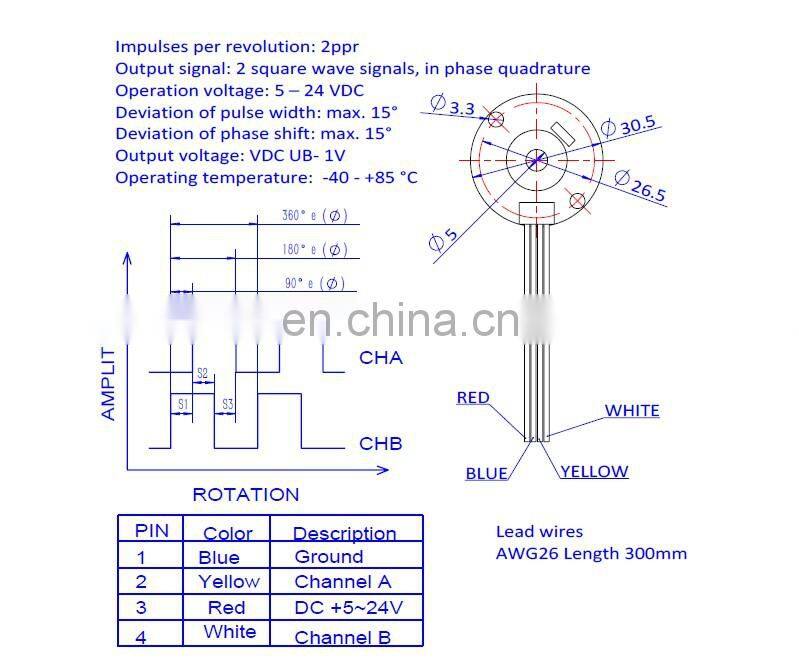

Magnetic pulse Encoder Model: EN-M2
Impulses per revolution: 2ppr
Output signal: 2 square wave signals, in phase quadrature
Operation voltage: 5 – 24 VDC
Deviation of pulse width: max. 15°
Deviation of phase shift: max. 15°
Output voltage: VDC UB- 1V
Operating temperature: -40 - +85 °C
IP54 COVER
