Help Center4'' 90mm Big Power High Torque 12 Volt 24 Volt dc Motor 300w 400w 500w Chinese Manufacturer
Related Products
-
Customized Specification DC Pump Motors,US$ 6 - 30MOQ: 100 Pieces -
63mm IP67 IP68 Water Proof Dc Motor 12v 24vUS$ 12 - 30MOQ: 5 Pieces
-
O.D 54mm Permanent Magnet Brushed dc Engine Rated 12 Volt 24 Volt POWER 50w 100w 150wUS$ 10 - 20MOQ: 5 Pieces
-
42mm 52mm 63mm 80mm Brushed dc Motor Equivalent to Dunker MotorUS$ 6 - 26MOQ: 5 Pieces
-
Permanent Magnet Construction and Brush Commutation dc MotorUS$ 5 - 50MOQ: 5 Pieces
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
Motor Main Characteristics
|
Model |
90ZYT01A |
90ZYT-180 |
90ZYT02A |
|
Rated Voltage |
24v (option for 12v up to 230vdc) |
||
|
Rated Speed (rpm) |
3000 |
3000 |
3000 |
|
Rated Torque (Nm) |
1.2 |
1.6 |
1.8 |
|
No load speed (rpm) |
3600 |
3500 |
3600 |
|
Weight (Kg) |
3.5 |
4.0 |
4.5 |
|
Motor Length (mm) |
155 |
180 |
199 |
|
Output Power (W) |
377 |
503 |
565 |

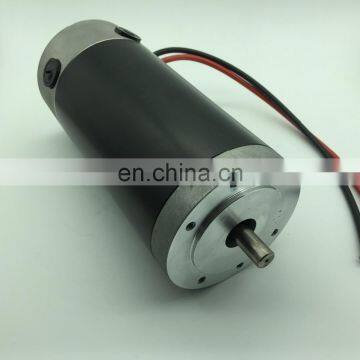

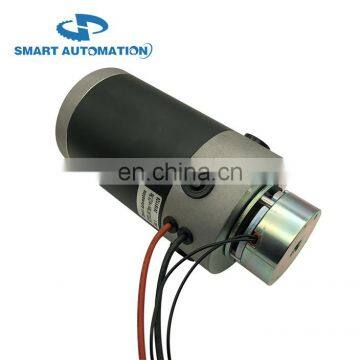

MOTOR PICTURES

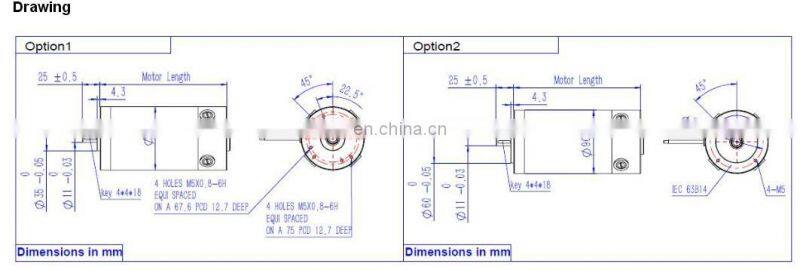

DETAILED SPECIFICATION

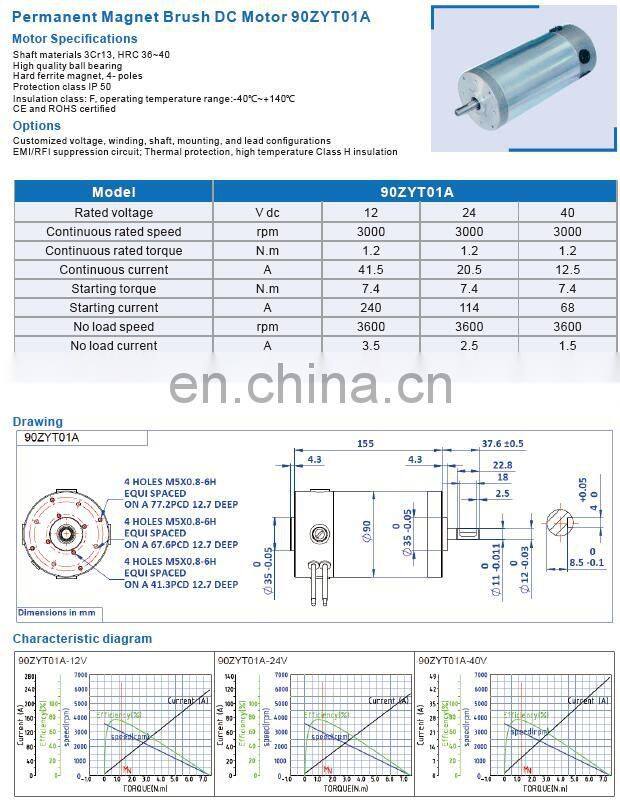

MODEL 90ZYT01A

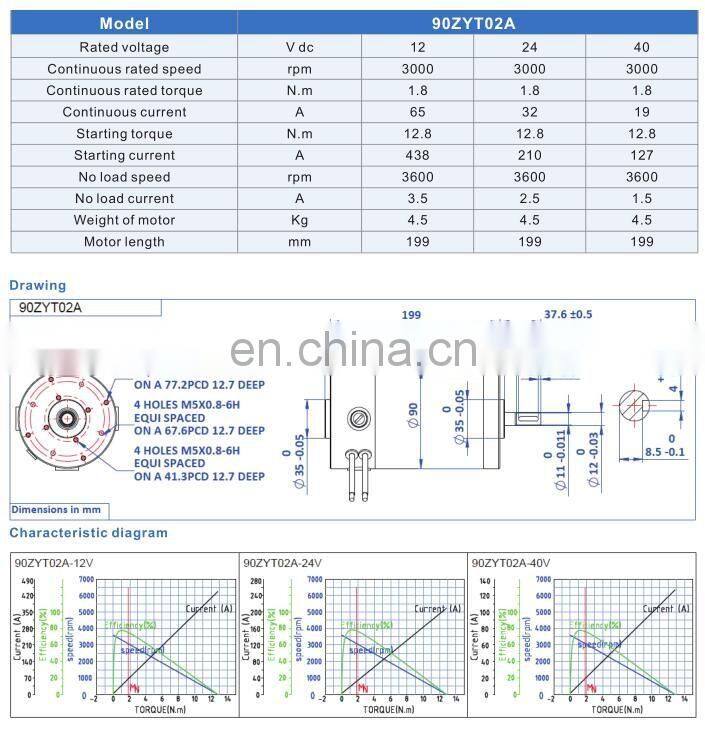

90ZYT02A

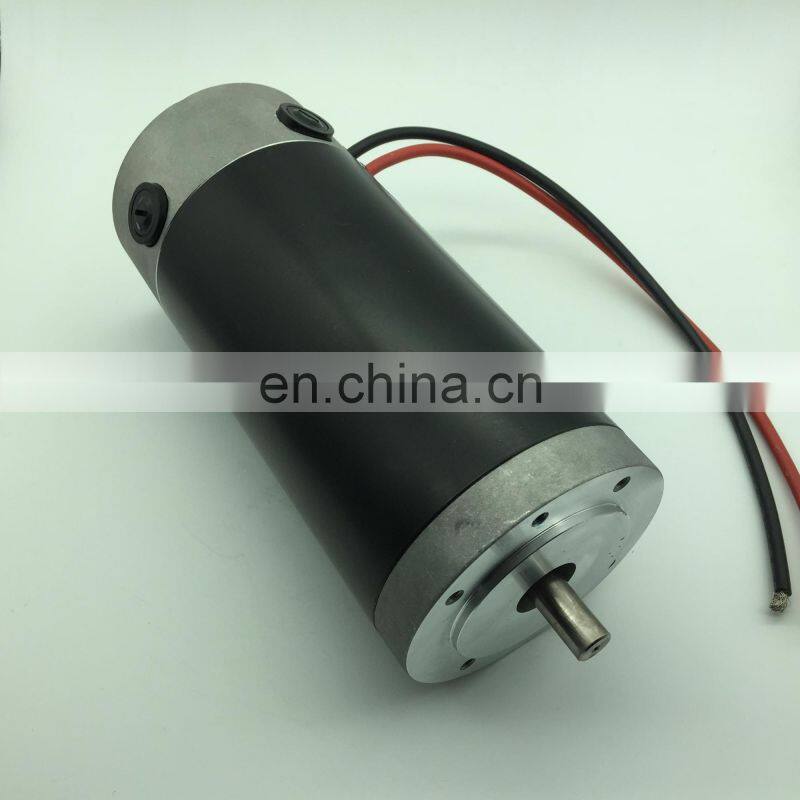

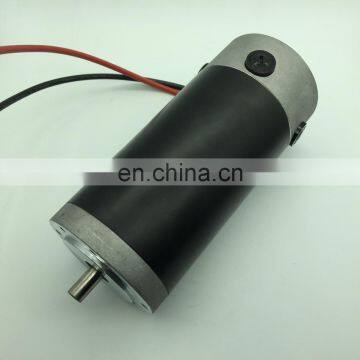

MOTOR PICTURES:

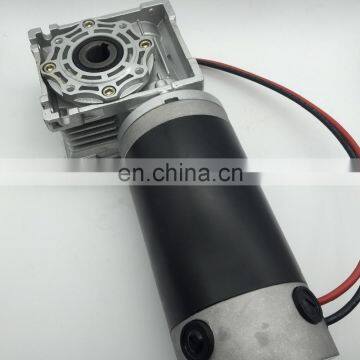

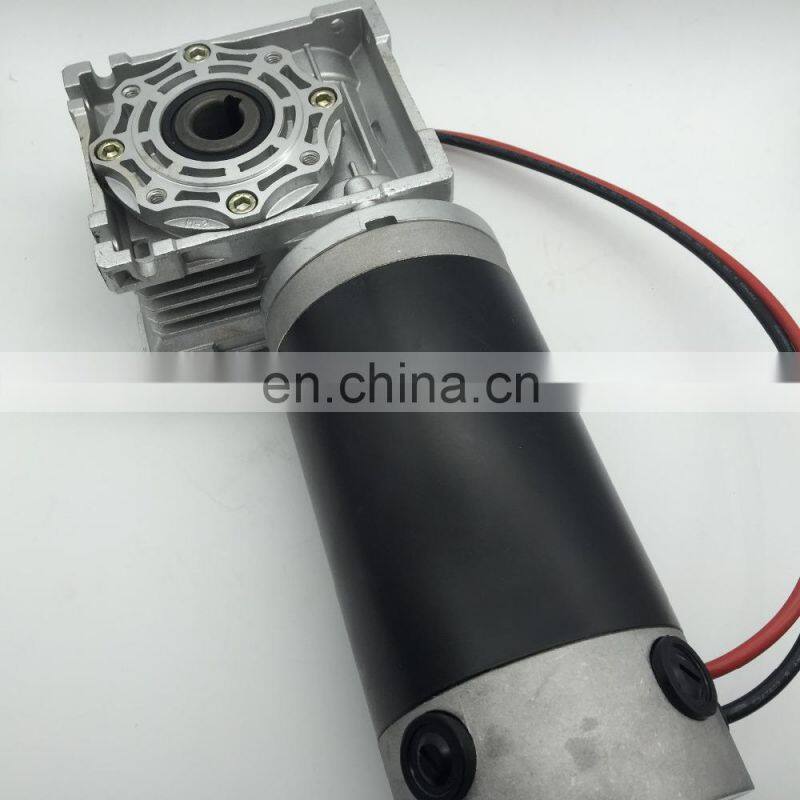

GEARED VERSION:
|
main applications of dc motor |
|
|
|
|
|
|
|
|
|
Industry |
Content |
Industry |
Content |
|
Medical equipment |
Hand-held surgical instruments |
Aerospace Industry |
Electric seat adjustment post |
|
|
|
||
|
Surgical robot |
Flight recorders |
||
|
|
|
||
|
Micro-injection pump; Peristaltic pump |
Autopilot |
||
|
|
|
||
|
Dialyzer |
Air-conditioning system |
||
|
|
|
||
|
Automatic dosing system |
Space Robot |
||
|
|
|
||
|
Radiation therapy equipment |
|
||
|
|
|
||
|
Diagnostic equipment and testing instruments |
|
||
|
Robot |
Humanoid robot |
Auto industry |
Adjustable shock absorbers |
|
|
|
||
|
Service robots |
Emission abatement system |
||
|
|
|
||
|
Teaching Robots |
Electronic steering |
||
|
|
|
||
|
|
Electronic tachometer
|
||
|
Industrial Automation |
Precision Positioning System |
Communications Equipment |
Antenna System |
|
|
|
||
|
Handling System |
Copier / printer / plotter |
||
|
|
|
||
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
