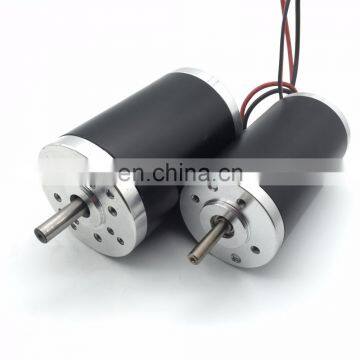

24v 12v dc Motor 2500rpm
- Shanghai
- T/T Credit Card
You May Like
-
12V 24V 10Nm 20Nm 30Nm Geared Dc Motor, With Brushless or Brushed Option
-
38mm High Torque Dc Motor, OPTION With Magnet Encoder And Planetary Gearhead
-
38zyn Small Size Big Torque Brushed 12vdc dc Motor 35w 40w 24vdc Option
-
Customized Special Worm Shaft Dc Motor Brushed With Replaceable Brushes
-
52mm High Speed Replaceable Brush dc Motor CNC Dual Shaft Upto 350w
-
63mm Automatic Door dc Motor Gate Opener Motor With or Without Worm Gearing
Product Details
| Brand Name | smart automation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT-12V 24v | Type | Micro Motor | |
| Certification | CE, UL, VDE | Torque | up to 0.5Nm | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v | Output Power | customed | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description
Motor technical parameter
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
12 volt
12V Models |
| 63ZYT01A | 63ZYT01B | 63ZYT01-2500 | 63ZYT02A | 63ZYT03A |
Continuous rated speed | rpm | 3100 | 9500 | 2500 | 3000 | 3000 |
Continuous rated torque | mN.m | 137 | 200 | 250 | 310 | 400 |
Continuous current | A | 5.2 | 24 | 9.0 | 11.5 | 15 |
Starting torque | mN.m | 820 | 1200 | 1300 | 2000 | 2700 |
Starting current | A | 27 | 208.5 | 39 | 59 | 80 |
No load speed | rpm | 3600 | 10000 | 3500 | 3500 | 3500 |
No load current | A | 0.6 | 3.0 | 1.2 | 2.0 | 3 |
Demagnetization current | A | 50 | 300 | 60 | 110 | 150 |
Rotor inertia | Gcm2 | 400 | 400 | 400 | 600 | 840 |
Weight of motor | g | 1000 | 1000 | 1000 | 1200 | 1350 |
Motor length | mm | 95 | 95 | 95 | 110 | 125 |
Rated power | W | 50 | 200 | 70 | 100 | 125 |
24 volt
Model |
| 63ZYT01A | 63ZYT01B | 63ZYT01C | 63ZYT02A | 63ZYT03A |
Rated voltage | V dc | 24 | 24 | 24 | 24 | 24 |
Continuous rated speed | rpm | 3300 | 9500 | 2500 | 3000 | 3000 |
Continuous rated torque | mN.m | 140 | 200 | 250 | 310 | 400 |
Continuous current | A | 2.7 | 12 | 4.5 | 5.8 | 7.5 |
Starting torque | mN.m | 1080 | 1200 | 1300 | 2000 | 2700 |
Starting current | A | 18 | 104 | 19.5 | 29.5 | 38.5 |
No load speed | rpm | 3600 | 10000 | 3500 | 3500 | 3500 |
No load current | A | 0.36 | 2.0 | 0.8 | 1.2 | 2.0 |
Demagnetization current | A | 24 | 150 | 30 | 55 | 75 |
Rotor inertia | Gcm2 | 400 | 400 | 400 | 600 | 840 |
Weight of motor | g | 1000 | 1000 | 1000 | 1200 | 1350 |
Motor length | mm | 95 | 95 | 95 | 110 | 125 |
Rated power | W | 50 | 200 | 70 | 100 | 125 |
