Home > Electrical & Electronics > Electric Motor > DC Motor > 63mm Permanent Magnet Brushed DC Engine Rated 12V 24V 36v 48V Replace Gr63
63mm Permanent Magnet Brushed DC Engine Rated 12V 24V 36v 48V Replace Gr63
US$ 6 - 26
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
Jiangsu, China
Model Number:
63ZYT
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63mm Brushed High Torque 12v dc Motor ; 24v dc MotorUS$ 10 - 25MOQ: 5 Pieces -
63ZYT01B 12 Volt 24 Volt Rated 4000rpm 75w dc Motor ManufacturersUS$ 7 - 25MOQ: 5 Pieces
-
63ZYT01B High Rpm 24 v 10000rpm dc Motor 200WUS$ 10 - 20MOQ: 5 Pieces
-
China Made Good Quality Zyt dc Motor 12v 24v 36v Upto 220vdcUS$ 5 - 50MOQ: 5 Pieces
-
O.D52mm dc Motors, Equalivalent to Dunkerenmotor Gr53US$ 8 - 20MOQ: 5 Pieces
Brand Name
SmartAutomation
Place of Origin
Jiangsu, China
Model Number
63ZYT
Type
Micro Motor
Certification
CE, ROHS
Torque
0.14~0.4Nm
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12V 24V 36v 48V
Output Power
50w~200w
Continuous Current(A)
customed
Speed(RPM)
1500rpm~9500rpm
Commutation
Brush
Motor technical parameter
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50 OPTION 54 56
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
standard voltage, 12V, 24V, 36V, 40V, 48v
detailed specification

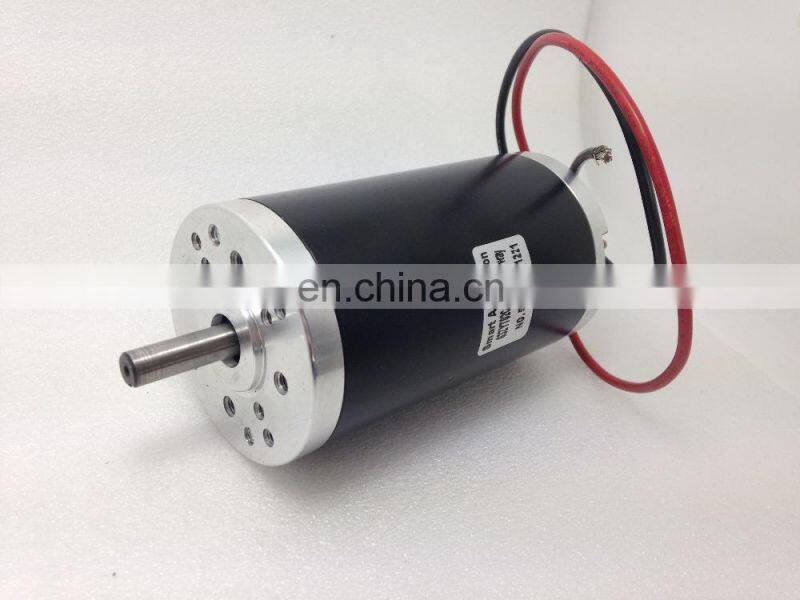

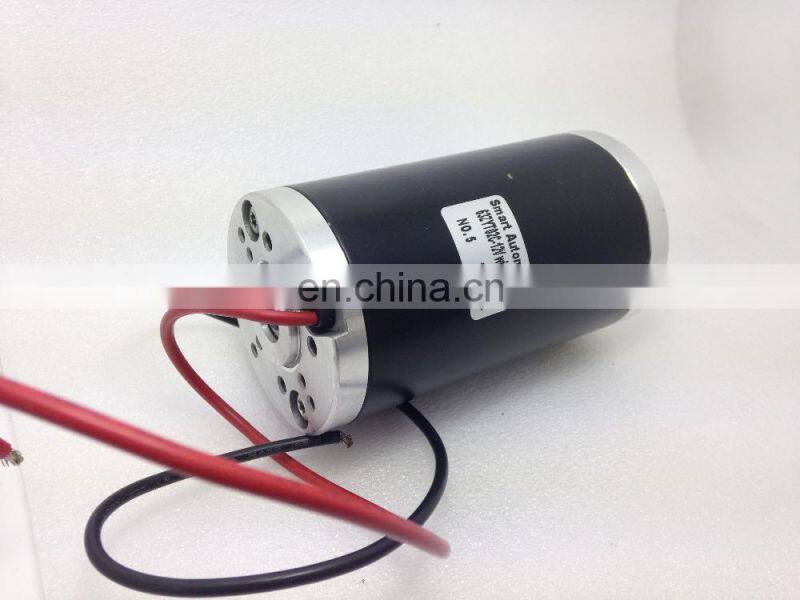

motor pictures

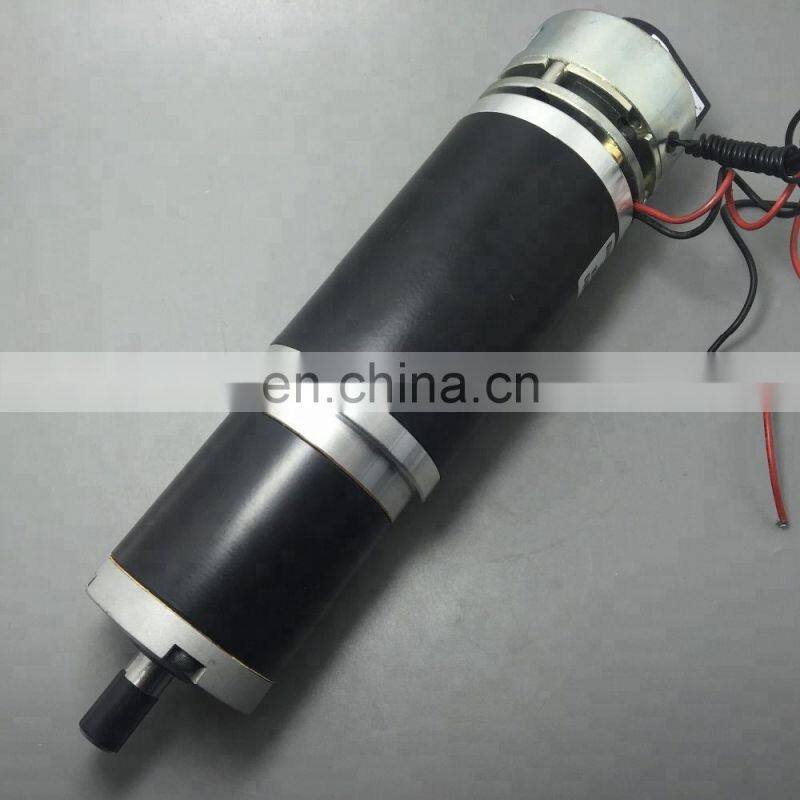

geared version
