220VAC / 380VAC Car Lift Hydraulic Power Units

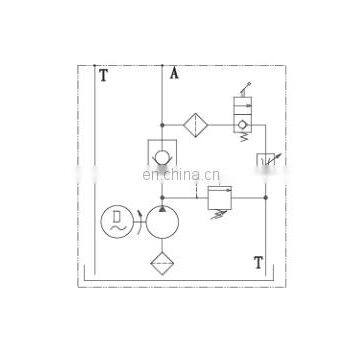

Equiped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and a tank, etc. Specially designed for two-poles Car lift, with the function of power lift and gravity lowering. The lowering speed can be controlled by manual adjustable flow valve.

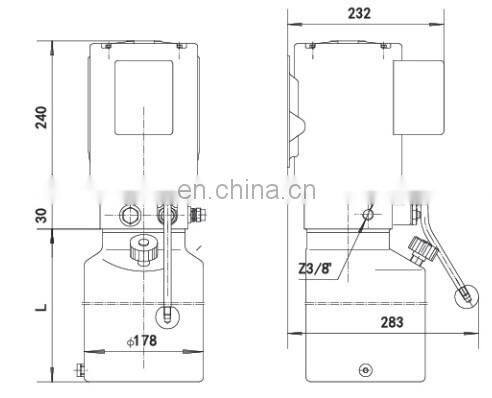

Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port | L(mm) |
HPU-04GOEMFVCFKF | 220V 2.2kW 2850rpm 50Hz | 2.1cc/r | 10L | 20MPa | vertical | 3/8''NPT | 440 |
HPU-04GOENFVCFLF | 2.6cc/r | 12L | 18MPa | 545 | |||
HPU-03HOEMFVCFKF | 380V 2.2KW 2850rpm 50Hz | 2.1cc/r | 10L | 20MPa | 440 | ||
| HPU-03HOENFVCFLF | 2.6cc/r | 12L | 18MPa | 545 |
Special Notes:
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
