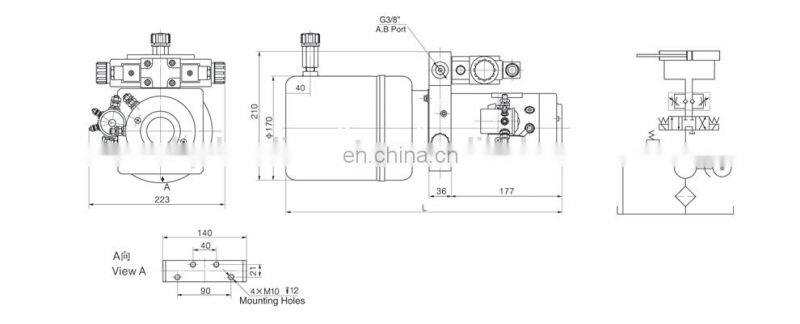

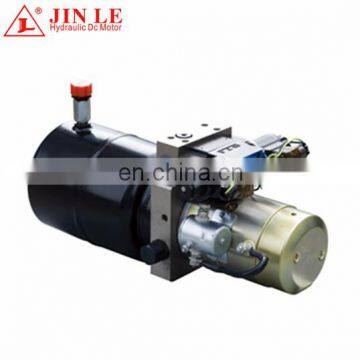

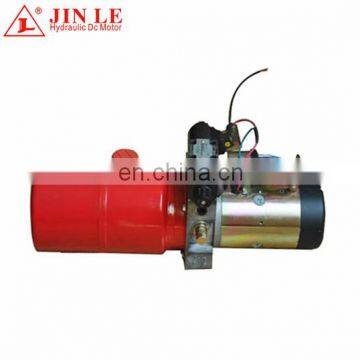

12V DC Dump Truck Hydraulic Power Pack Unit
General Description
Used to operate a double action cylinder of the dumping truck covering mechanery, this power unit consists of high pressure gear pump,DC motor, multi-functional manifod,valves and oil tank, ect. The opening and closing actions of the covers are controlled by a solenoid directional valve, while the speed is adjusted by the throttles.
Model | Motor Volt | Motor power | Displacement | System pressure | Tank Capacity | L(mm) |
JL15-HPU118 | 12VDC | 1.5KW | 1.6mL/r | 18MPa | 3.5L | 448 |
JL15-HPU119 | 24VDC | 2KW | 2.5mL/r | 18MPa | 5L | 463 |
Special notes
1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst, which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4.The power unit should be mounted horizontally.
5.Check the oil level in the tank after the initial running of the power unit.
6.Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
Features:
1. The hydraulic power units are offered for industrial, mining, water conservancy, agriculture, electric power, machine tool and construction applications.
2. Standard, compact and custom power units are available.
3. Electric control system (wire or wireless type) is optional.
4. Any kind and size of hydraulic cylinder to matching the system is optional.
5. Hydraulic power units consisting of pumps, reservoirs, relief valves, filters, sight gages, and filler breathers deliver reliable power for hydraulic systems.
Parameters:
| Place of origin | Wuxi, JIangsu,China |
| Brand | Jinle |
| Diameter | As per customers' requirements |
| Port of loading | Shanghai |
| Packing | As per customers' requirements |
| MOQ | 1 set |
| Payment term | T/T, L/C, West Union, Paypal |
| Delivery time | 7-30 days |
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
