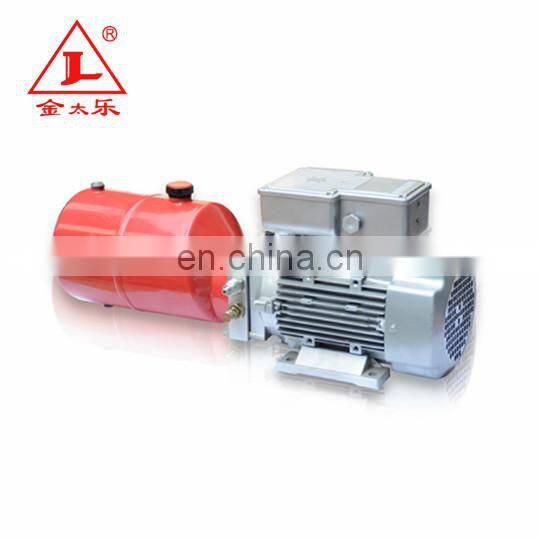

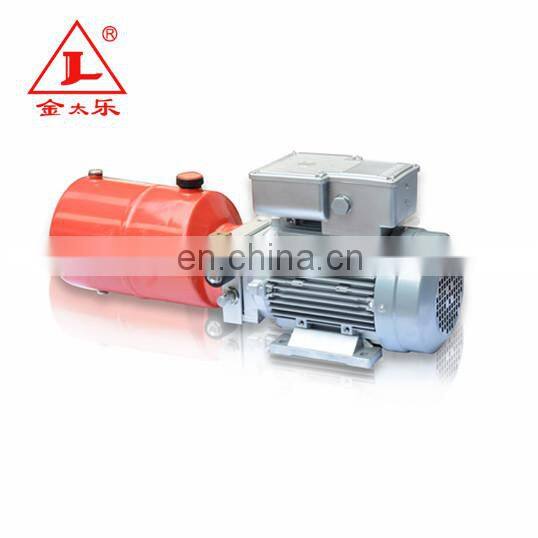

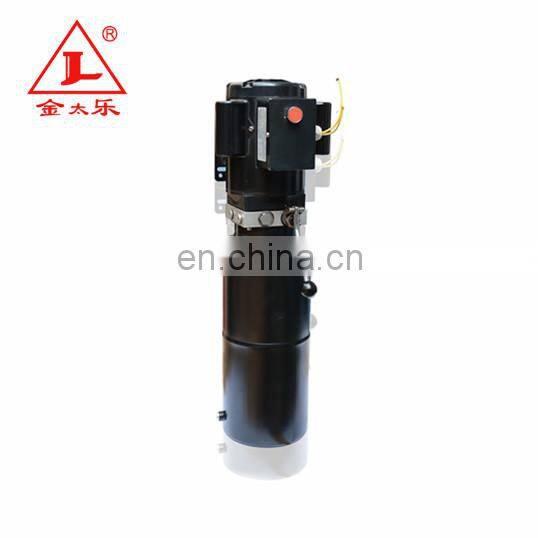

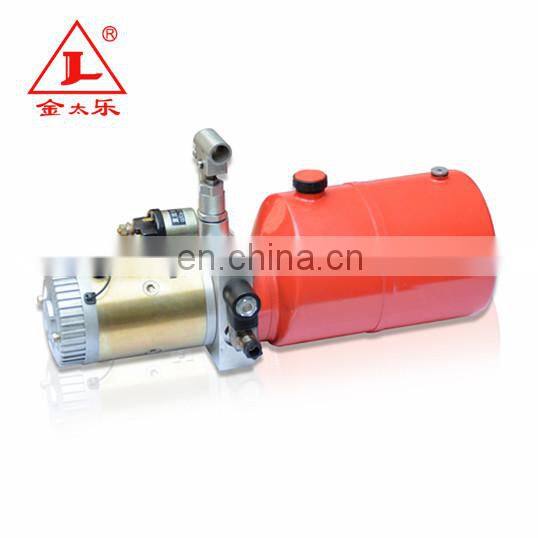

12 Volt DC Hydraulic Power Pack Units 1.6mL/r 200Bar

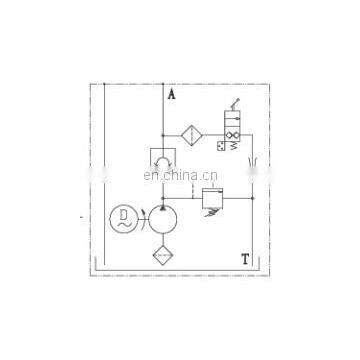

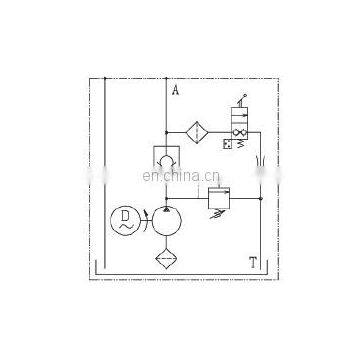

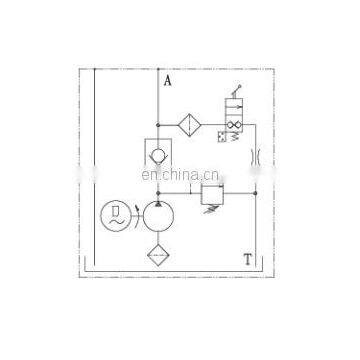

This power unit is designed exclusively for the fork lift, consist of high pressure gear pump, DC motor, multifunctional manifold, valves, tank, etc. The up and down movement are controlled by the level of the mannal release valve, which is equipped with and electric switch for the motor start. The lowering speed is automatically adjusted by the pressure compensated flow control valve.
Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port |
HPU-06ABBCAHAECA | 12V 0.8KW 3650rpm | 0.5cc/r | 1.7L | 18MPa | Horizontal | 1/4*BSPP |
HPU-06BBBCBHAECA | 24V 0.8KW 3650rpm | |||||
HPU-10ADALGSAFGF | 12V 1.6KW 2500rpm | 1.6cc/r | 5L | 20MPa
| Lateral Horizontal
| 3/8*NPT |
| HPU-10ADAMGSAFHF | 2.1cc/r | 6L | ||||
HPU-10BEAMGSAFHF | 24V 2.2KW 2500rpm | 2.1cc/r | 6L | |||
HPU-10BEANGSAFJF | 2.6cc/r | 8L | ||||
HPU-10ADALHSAFGF | 12V 1.6KW 2500rpm | 1.6cc/r | 5L | |||
HPU-10ADAMHSAFHF | 2.1cc/r | 6L | ||||
| HPU-10BEAMHSAFHF | 24V 2.2KW 2500rpm | 2.1cc/r | 6L | |||
HPU-10BEANHSAFJF | 2.6cc/r | 8L |
Special Notes:
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
Hot Products:
power unit for car lift power unit for Electric Work Platform Power Unit for Lift Table Power Unit for Tipper Trailer

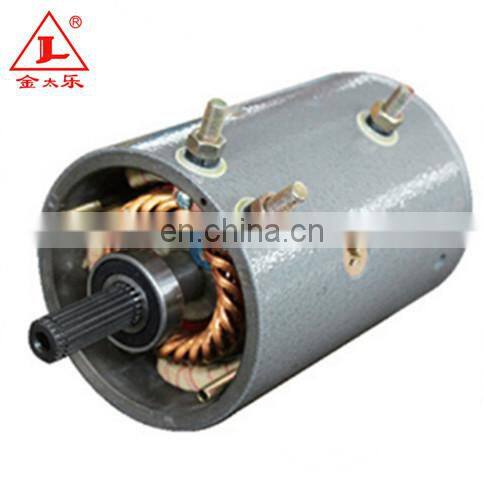

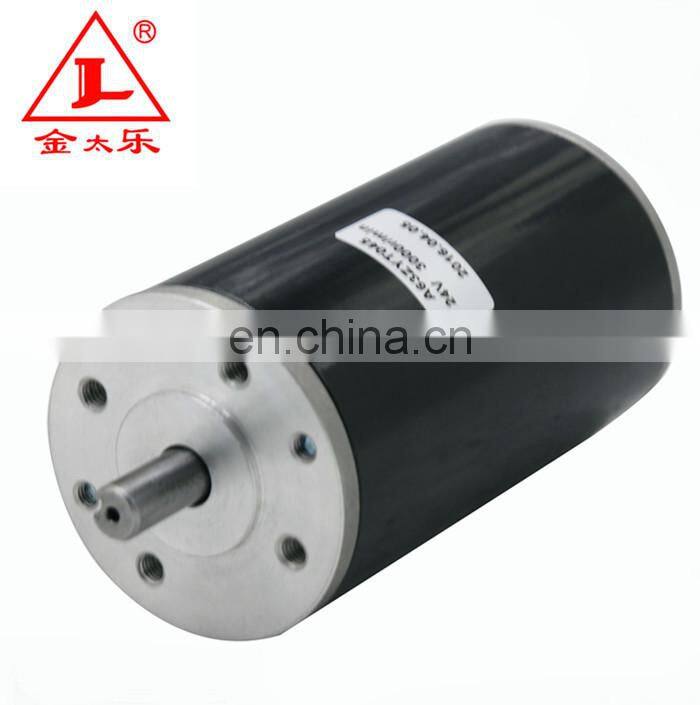

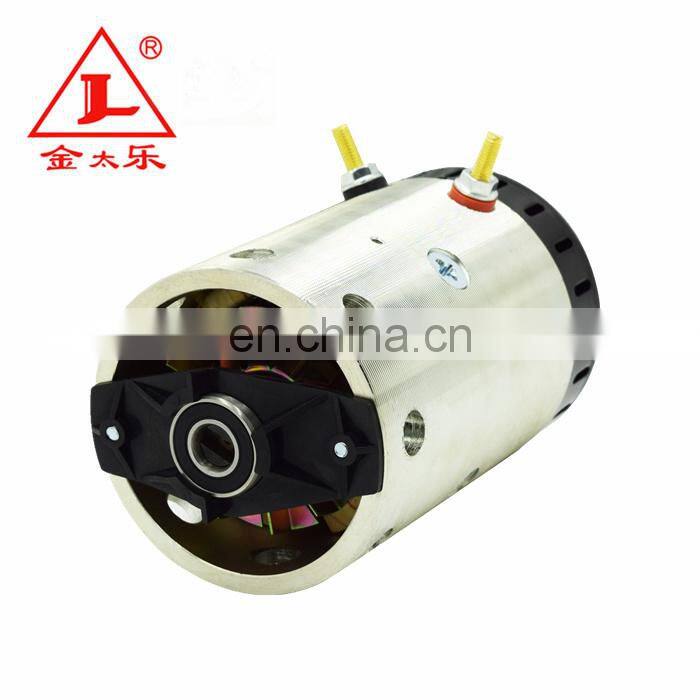

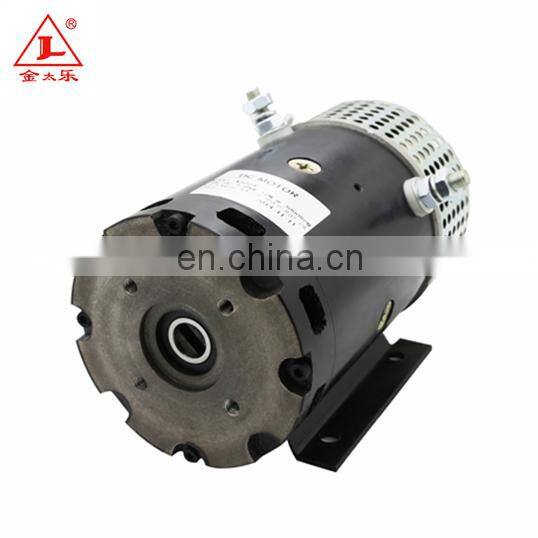

N2463: 24V 200W dc motor XQD-3C: 24V 4KW DC motor W8923: 12V 1.4KW DC motor ZD223AF: 24V 2.2KW DC motor
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
