Mini DC Hydraulic Power Unit Packs 800W

Name: Mini DC Hydraulic Power Unit Packs 800W
Brand: Jinle
Availability: InStock

FOB Price

US$ 150 - 210 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Jinle

Place of Origin

Jiangsu, China

Product Description

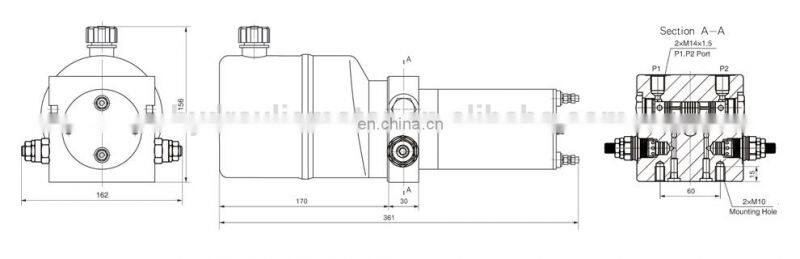

Mini DC Hydraulic Power Unit Packs 800W

General Description
Equipped with a reversible mortor, a bidirectional gear pump, double P.O. checke valves, relief valves and a tank etc. This power unit can drive a double acting cylinder to extend and retract without a directional solenoid valve. It is typically used inrecreational vehicles and machine tools.

Model Specifications

Model	Motor Volt	Motor power	Displacement	System pressure	Tank Capacity
JL15-HPU120	12VDC	0.8KW	0.5mL/r	17.5MPa	1.4L
JL15-HPU121	24VDC	0.8KW	0.63mL/r	17.5MPa	1.4L

Special notes
1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst, which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4.The power unit can be mounted horizontally or vertically.
5.Check the oil level in the tank after the initial running of the power unit.
6.Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

Features:

1. The hydraulic power units are offered for industrial, mining, water conservancy, agriculture, electric power, machine tool and construction applications.

2. Standard, compact and custom power units are available.

3. Electric control system (wire or wireless type) is optional.

4. Any kind and size of hydraulic cylinder to matching the system is optional.

5. Hydraulic power units consisting of pumps, reservoirs, relief valves, filters, sight gages, and filler breathers deliver reliable power for hydraulic systems.

Parameters:

Place of origin	Wuxi, JIangsu,China
Brand	Jinle
Diameter	As per customers' requirements
Port of loading	Shanghai
Packing	As per customers' requirements
MOQ	1 set
Payment term	T/T, L/C, West Union, Paypal
Delivery time	7-30 days
