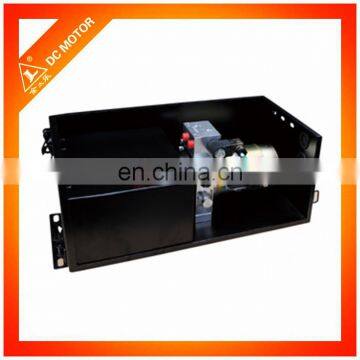

Tail Lift Hydraulic Power Unit 24v dc

 Type:               JL5-E2.5D2A70A/WUABT1

 Motor Volt:           24VDC

 Motor power:        2KW

 Rated speed:        2500RPM

 Displacement:       2.5ml/r

 System Pressure:  16MPa

Tank capacity:       11L

specification:

This Tail lift hydraulic power unit 24v dc equipped with two zero leakage double-check solenoid valves, this power unit has two independent circuits for the lifting cylinder and rotating cylinder of tailgate of electrical garbage truck. The lowering speed of the cylinders is regulated by the pressure compensated flow valve in the return line.

Usage:

This Tail lift hydraulic power unit 24v dc can also be used in those applications where two separated hydraulic circuits are needed such as double scissors lift, doublepallet mover etc.

Our power units mianly used in forklift ,meadical care equipment,pallet truck ,manual electric stacker,electric stacker,electric work paltform,aerial order picker,car lift,double-scissors lift,tail gate for car lift,basketball stands power units,power units for tyre changer,lift table,tipper trailer,snow removal truck,excavator for GOLF,hydraulic dock leveler, Sanitation truck

Advantage:

• Low noise
• Small size
• Low noise
• High efficiency
• Long life
• Convenient for mounting
• 100% copper wire
• More than 20 year's manufacture experience

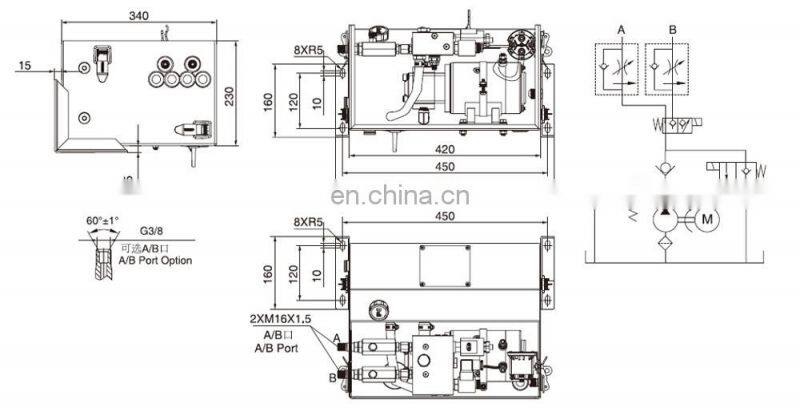

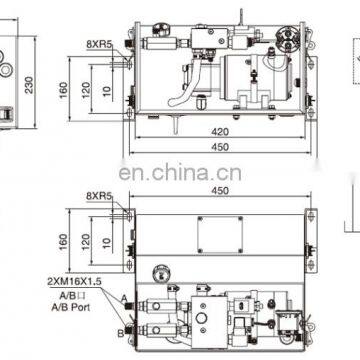

Drawing:

 Special notes:

1.The duty of Tail lift hydraulic power unit 24v dc is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended
4.This power unit should be mounted vertically.
5.Check the oil level in the tank after the initial run of the power unit.
6.Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

Remark:

1.Please feel free to contact me  consult for the different pump displacement, motor power or tank capacity of Tail lift hydraulic power unit 24v dc.

2.The manual override function is available on request.

 Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?

Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.

Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.

Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
