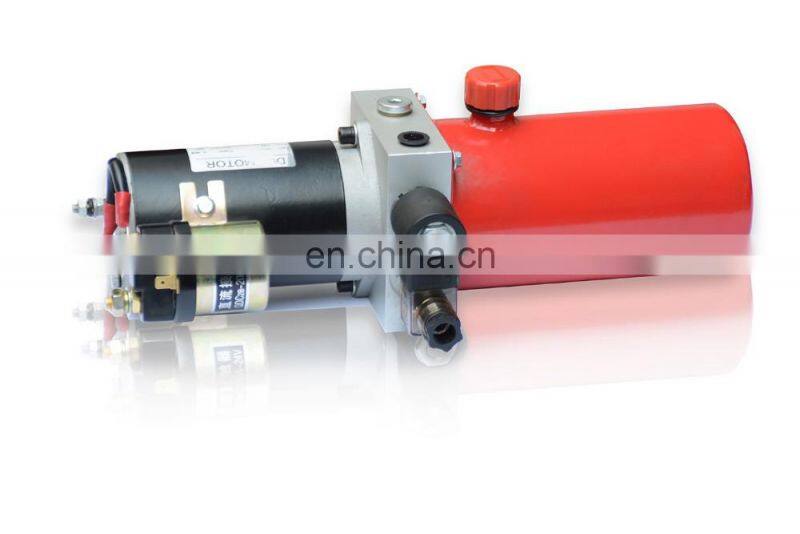

Hydraulic Powerpack For Pallet Truck
General Description

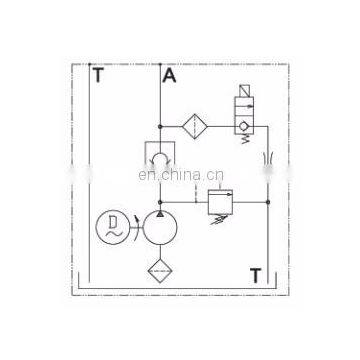

Consisting of high pressure gear pump, DC motor, multifunctional manifold, valve, tank, etc. This power unit can be widely used in the industry logistic devices such as minifork lift. The lowering movement is controlled by the solenoid valve with the sped controlled by the balance valve.

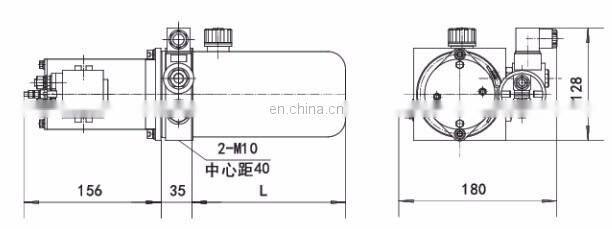

Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port | L(mm) |
HPU-10ABBCAHAEAA | 12V 0.8KW 3650RPM | 0.5cc/r | 1.0L | 16MPa
| Horizontal
| 1/4*BSPP
| 178 |
HPU-10ABBDAHAEBA | 12V 0.8KW 3650RPM | 0.75cc/r | 1.2L | 210 | |||
HPU-10BBBCBHAEAA | 24V 0.8KW 3650RPM | 0.5cc/r | 1.0L | 178 | |||
HPU-10BBBDBHAECA | 24V 0.8KW 3650RPM | 0.75cc/r | 1.7L | 170 |
Remark:
1.The manual override function, the different pump displacement, motor power, tank capacity are available on request.
Special notes
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
1,Sample service: samples can provide preferential.
2,customized services: a variety of power units can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
