AC 380V Hydraulic Power Unit/power Pack for Tyre Changer With 12v dc Solenoid Valve Volt
US$ 150 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Type:
Hydraulic Power Units
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale AC 120V Hydraulic Power Unit/power Pack for Trash Compactor With 24v dc Solenoid Valve VoltUS$ 150 - 300MOQ: 1 Piece -
Hydraulic Power Units 24V 24Volt 3hp For Tail Gate LiftingUS$ 150 - 300MOQ: 1 Piece
-
12 V dc Hydraulic Power Pack Unit for Double Acting FunctionsUS$ 150 - 300MOQ: 1 Piece
-
220v ac 2kw Double Acting Hydraulic Power Station/unit/packUS$ 150 - 300MOQ: 1 Piece
-
12v 800W Hydraulic Power Unit For Pallet TruckUS$ 150 - 300MOQ: 1 Piece
Brand Name
Jinle
Place of Origin
Jiangsu, China

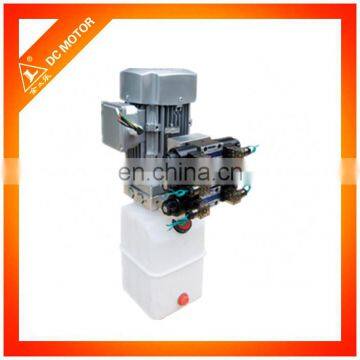

AC 380V Hydraulic Power unit/power pack for tyre changer with 12v dc solenoid valve volt
The AC 380V Hydraulic Power unit/power pack for tyre changer with 12v dc solenoid valve volt integrates gear pump,AC motor,multi-function manifold,valves,tank,etc.The solenoid valves in series connection control the extension and retracting of the double acting cylinders.
Usage:
This AC 380V Hydraulic Power unit/power pack for tyre changer with 12v dc solenoid valve volt is specially designed for Scissor Table Lift which fixed parking ,suit various types of manifold.
Advantage:
Advantage:
1.Low noise
2.special design
3.good performance in dirty environment
Special notes:
1.The AC 380V Hydraulic Power unit/power pack for tyre changer with 12v dc solenoid valve volt is of S3 duty cycle,which can only work intermittently and repeatedly,i.e.,1 minute on and 9 minutes off.
2.Clean all the hydraulic components concerned before installation of the power unit.
3.Viscosity of the oil should be 15～68 CST and the oil should be clean and free of impurities,N46 hydraulic oil is recommended.
4.Check the oil level in the tank after the initial running of the power unit.
5.Oil changing is required after the initial 100 operation hours,afterwards once every 3000 hours.
Remark:
1.Please feel free to contact me consult for the different pump displacement, motor power or tank capacity of AC 380V Hydraulic Power unit/power pack for tyre changer with 12v dc solenoid valve volt.
2.The manual override function is available on request.
Model | Motor Volt | Solenoid Valve Volt | Motor Power | Rated Speed | Displacement | System Pressure | Tank Capacity | L (mm) |
JL5-F2.7B4G40/ MNVBE1 | 380V AC | 24VDC | 1.5 KW | 1430/1650RPM | 2.7ml/r | 20Mpa | 5L | 633 |
JL5-F2.5B4G40/ MNVBE1 | 2.5ml/r | 6L | 678 | |||||
JL5-F2.1B4G40/ MNVBE1 | 12VDC | 2.1ml/r | 8L | 783 |
Details
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
