high quality AC 12v mini hydraulic power pack unit used for car lift/farm tractor

Name: high quality AC 12v mini hydraulic power pack unit used for car lift/farm tractor
Brand: Jinle
Price: USD $150 - 300 / Piece

FOB Price

USD $150 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Jinle

Place of Origin:

Jiangsu, China

Model Number:

HPU-04GOEMFVCFKF

Product Description

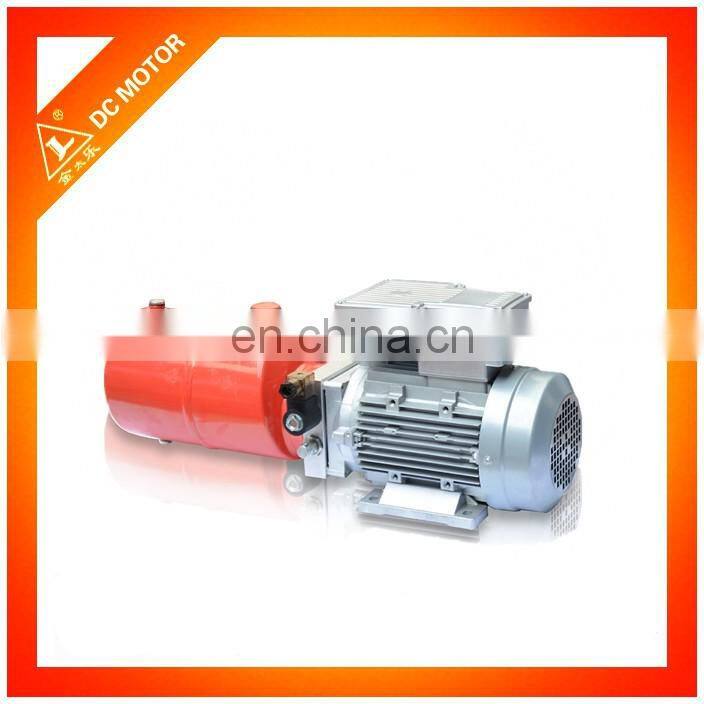

high quality AC 12v mini hydraulic power pack

unit used for car lift/farm tractor

Type	HPU-04GOEMFVCFKF
Motor	220V 2.2KW 2850rpm
Pump displacement（cc/r）	2.1
Tank capacity	10
Pressure	20
Mounting	VERTICAL
Oil port	3/8"NPT

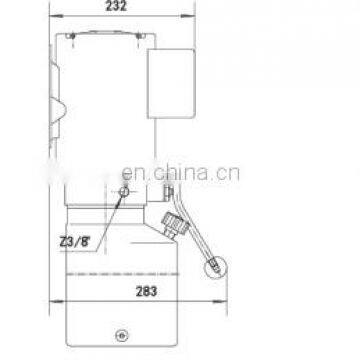

L(mm)	440mm

General Description:

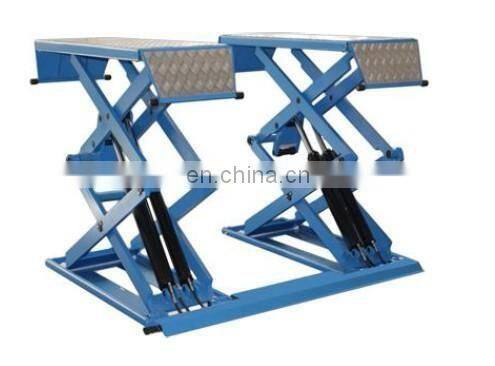

This POWER UNITS FOR CAR LIFT is equiped with a high pressure gear pump, a AC motor, a multi-funtional manifold ,values and a tank,etc. Specially designed for two -poles car lift,with the function of power lift and gravity lowering.The lowering speed can be controlled by manual adjustable flow valve.

SPECIAL NOTES:

1.The manual override function is available on request.
2. The power unit is of S3 duty, which can only be worked intermittently, i.e.1 minute on and 9 minutes off.
3. Clean all the hydraulic parts concemed before mounting the power unit.
4..Viscosity of the hydraulic oil should be 15-68 cst,which should also be clean and free of impurities. N46 hydraulic oil is recommended.
5.. This power unit should be mounted Horizontal.
6.Check the oil level in the tank after the first start of the power unit.
7..Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.

The different pump displacement, motor power and tank capacity are available on request.

Application

Our Company

Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.

We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.

Packing & Delivery

Our Service

1.Sample service: samples can provide preferential.
2.customized services: a variety of power units can be customized according to customer demand.
3. aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

FAQ

Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?

Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.

Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.

Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.

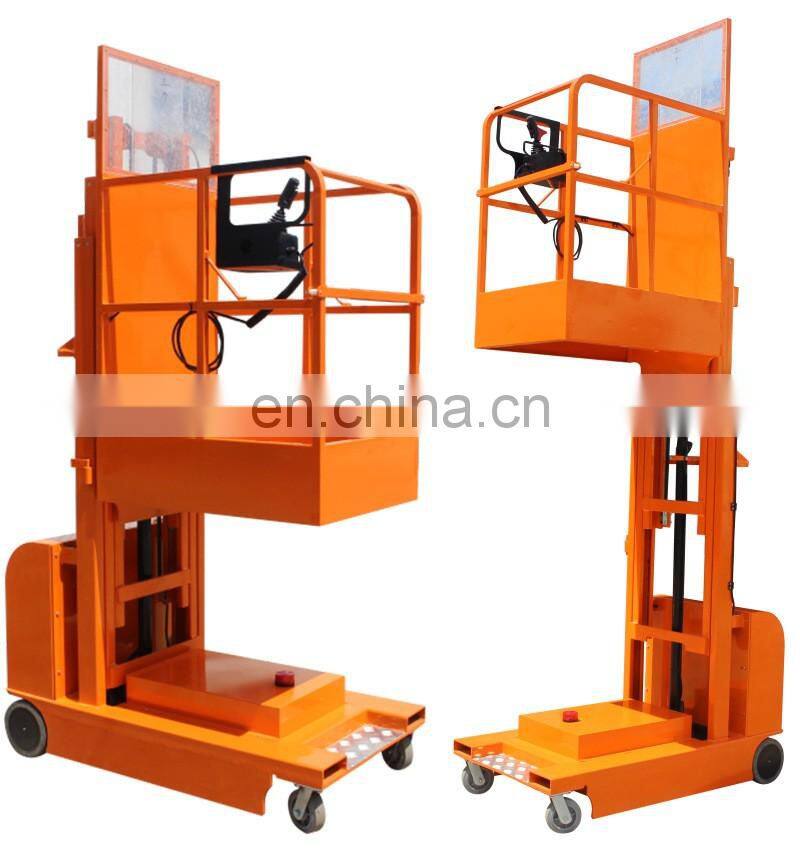

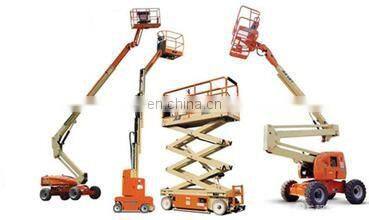

POWER UNITS FOR ELECTRIC WORK PLATFORM

1.220V 0.75KW 1440RPM 50HZ

2.220V 0.75KW 1440RPM 50HZ

12V 800W 3650 RPM

PALLET TRUCK POWER UNITS

1.12v 0.8kw 3650rpm 0.5cc/r

2.12v 0.8kw 3650rpm 0.75cc/r

3.24v 0.8kw 3650rpm 0.5cc/r

4.24v 0.8kw 3650rpm 0.75cc/r

POWER UNITS FOR MANUAL ELECTRIC STACKER

1.12V 0.8KW 3650RPM 0.5CC/R

2.24V 0.8KW 3650RPM 0.5CC/R

3.12V 1.6KW 2500RPM 1.6CC/R

4.12V 1.6KW 2500RPM 2.1CC/R

5.24V 2.2KW 2500RPM 2.1CC/R
