Electric Stacker Hydraulic Power Pack With dc Motor

Electric Stacker Hydraulic Power Pack With dc Motor photo-1
Electric Stacker Hydraulic Power Pack With dc Motor photo-2
Electric Stacker Hydraulic Power Pack With dc Motor photo-3
US$ 150 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
China
Type:
Hydraulic Power Units
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Jinle
Place of Origin China
Product Description

electric stacker hydraulic power pack with dc motor

hydraulic power units / hydraulic power pack

for electric stacker 3000W 24V 3100r/min 16MPa 10L

General description

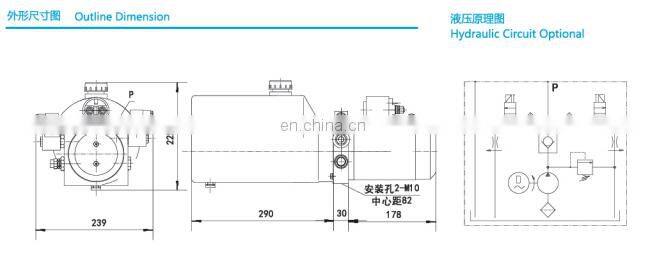

Equiped with a high pressure gear pump,a DC motor, a multi-functional manifold, valves and a tank etc. This power unit features power up and  gravity down actions. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve the lowering speed controlled by the pressure compensated flow control valve. The products are widely used in the industry of logistic devices such as fork lift, mini lift table etc.





Type

Motor

Pump

Displacement

(cc/r)



Tank

Capacity

(L)

Pressure

(MPa)

MountingOil Port
HPU-11ADALAHAFHG12V 1.6KW 2500RPM1.6620HORIZONTALM14*1.5"
HPU-11BFANBHAFHG24V 2.2KW 2500RPM2.6
HPU-11BGBOBHAEKG24V 3.0KW 3100RPM3.21016





Special Notes:
1. Please see the type instructions of hydraulic power unit or consult our sales engineer for the different pump displacement, motor power or tank capacity.
2. The duty of this power unit is S3, i.e. 30 seconds on and 270 seconds off.
3.Clean all the hydraulic parts concemed before mounting the power unit.
4.Viscosity of the hydraulic oil should be 15-68 cst,which should also be clean and free of impurities. N46 hydraulic oil is recommended.
5.The manual override function is available on request.
6.Check the oil level in the tank after the first start of the power unit.
7.Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
electric stacker hydraulic power pack with dc motor
electric stacker hydraulic power pack with dc motor
 electric stacker hydraulic power pack with dc motorelectric stacker hydraulic power pack with dc motorelectric stacker hydraulic power pack with dc motorelectric stacker hydraulic power pack with dc motor
FAQ



Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufactuing. You could give us your samples or drawings.



Q: Can we design our own package or print our own logo?

A: Yes! You should! Package will be according to your requirements.



Q: Could we get samples?

A: Yes! Definitly! The samples will be sent to you preferentially.



Q: How much time about the mass production?

A: The lead time of mass production will be depend on quantity, production and so on.



Q: Could I customize our poroducts in your factory?

A: Customization is available. You can send me your specifications and drawings.




 electric stacker hydraulic power pack with dc motor
