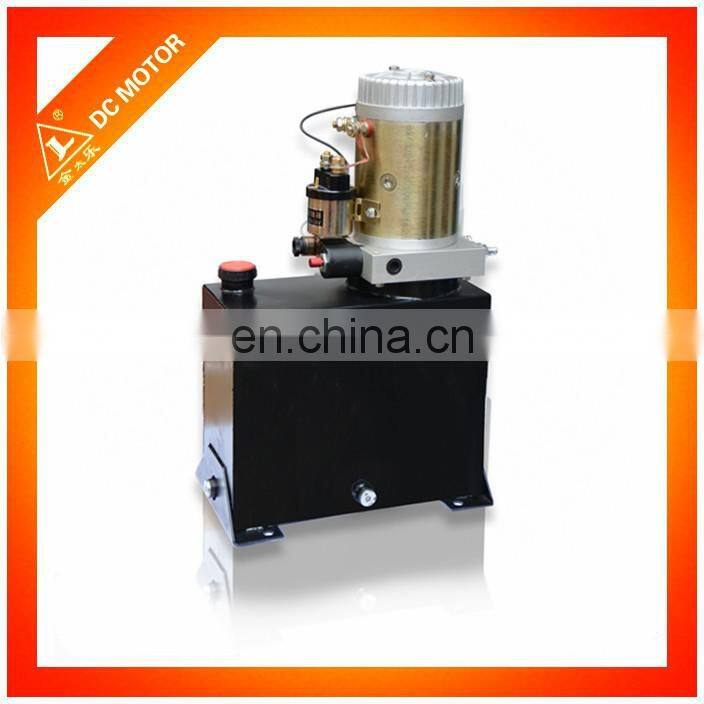

Hydraulic power unit for tailgate car lift 12v 24v
We will attend HANNOVER MESSE in 2017 in German, BOOTH No HALL020,A30-19 . From April 24th-28th.
Welcome your visit!
Equiped with a high pressure gear pump,a dc motor, a multi-fuctional manifold, valves and a tank, etc. Specially designed for tail gate, support the gate up-down and open-close automatically. The tight box package type designed is convenient for mounting.
Model
| Motor Info
| Pump Displacement
| Tank Capacity
| Pressure
| Pressure
| Oil Port
|
HPU-30AEASAHDFKI | 12V 2KW 2500RPM | 1.7cc/r |
9 |
20 |
Horizontal
|
M18x15* |
HPU-30BBFAUBHDFKI | 24V 2.2KW 2500RPM | 2.5cc/r |
Remark:
The different pump displacement, motor power, tank capacity are available on request.
Special Note
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours
Other hot products:
High quality hydraulic power pack unit DC
1,Sample service: samples can provide preferential.
2,customized services: a variety of power unit packs can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on. Often 30 days.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
