Mini Hydraulic Power Pack

Name: Mini Hydraulic Power Pack
Brand: JInle
Availability: InStock

FOB Price

US$ 150 - 220 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

JInle

Place of Origin

China

Product Description

mini hydraulic power pack

Product Description

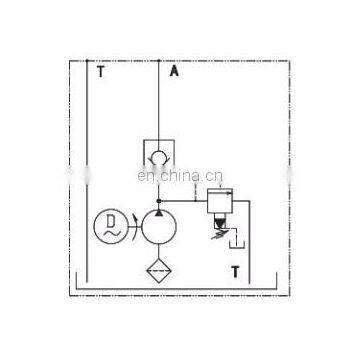

General Description of hydrualic power unit for medical care equipment 24V 500W :
Serving as the power source of operating table, this power unit is designed exclusively for lifting the electrical operating table in the application of medical care equipments, which features low noise, low current and small size. Furthermore, it is applicable to sickbed.

Model Specifications of mini hydraulic power unit :

Model

Motor Info

Pump Displacement

Tank Capacity

Pressure

Mounting

Oil Port

HPU-02BAACBHADAA

24V 0.5KW 2000RPM

0.25cc/r

1.0L

10MPa

Horizontal

1/4*BSPP

HPU-02BAACBHACAA

0.5cc/r

6.5MPa

Remark of mini hydraulic power pack unit :
1.The different pump displacement, motor power, tank capacity are available on request.

Special Note of mini hydraulic power pack :

1. The duty of this mini power unit is S3. ie: 30 seconds on and 270s off.

2. Clean all the hydraulic parts concemed before mounting the hydraulic mini power unit.

3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.

4. This mini hydraulic power unit pack should be mounted horizontal.

5. Check the oil level in the tank after the first start of the hydraulic mini power unit packs .

6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.

Packaging & Shipping

If you need other kinds of hydraulic power units pack, we can supply cusotmization service, you just need to tell me the following items :

Cutomization is avalable:

For customization, please tell me the following specifications:

Voltage

Motor power

single action or double action

with or without pressure holding

Single oil cylinder or multiple oil cylinder

gear pump displacement mL/r

flow rate L/min

Pressure( Mpa)

oil tank capacity

vertical or horizontal

square or round

voltage of solenoid valve

FAQ

1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates

CE, ISO9001 etc

3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
