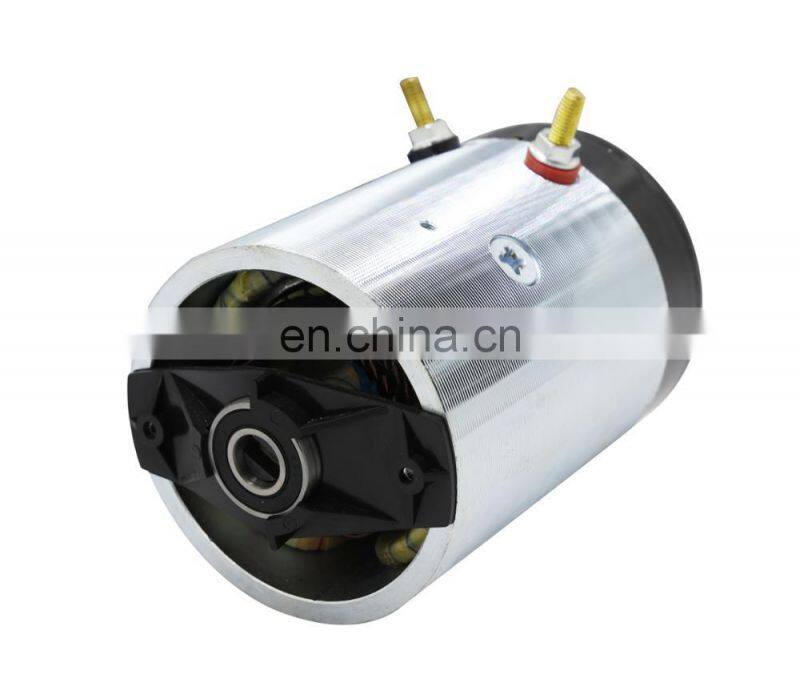

Hydraulic Pump DC Motor 24V 3HP 2700RPM

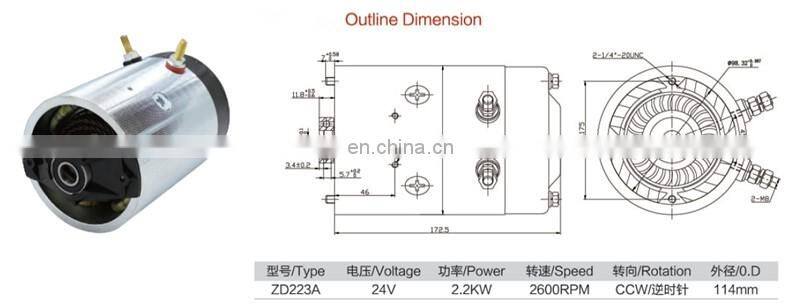

Specification of Hydraulic Pump DC Motor 24V 3HP 2700RPM:
1) Type: ZD223A
2) Voltage: 24V
3) Power: 2.2KW
4) Speed: 2700PM
5) Rotation: CCW
6) O.D. : 114mm/4.5'
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
11) Weight: 7.5KG
Features of Hydraulic Pump DC Motor 24V 3HP 2700RPM:
stable running, high efficiency, low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
ZDY1256 | 12V | 200W | 3000RPM | BI-DIRECTIONAL | 56mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3600RPM | CW | 80mm |
ZDY113S | 12V | 0.8KW | 3200RPM | CCW | 80mm |
M108XXN | 12V | 0.8KW | 3300RPM | CW | 80mm |
MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY118 | 12V | 1.2KW | 3200RPM | CW | 80mm |
W8923 | 12V | 1.4KW | 2220RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.4KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2300RPM | BI-DIRECTIONAL | 114mm |
W8901P | 12V | 1.5KW | 2220RPM | BI-DIRECTIONAL | 114mm |
ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612C | 12V | 1.6KW | 2350RPM | CW | 114mm |
W5692 | 12V | 1.6KW | 2450RPM | CW | 114mm |
ZD193A | 12V | 1.6KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2350RPM | CCW | 114mm |
MD12160 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1223 | 12V | 1.6KW | 2350RPM | CW | 114mm |
ZD1200 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1201 | 12V | 1.6KW | 2500RPM | CW | 114mm |
56363 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD193 | 12V | 1.6KW | 2600RPM | CW | 114mm |
ZD1240 | 12V | 1.6KW | 2350RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2650RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD12250 | 12V | 2.2KW | 2800RPM | CW | 114mm |
ZD1973BF | 12V | 3.0KW | 3000RPM | CCW | 127mm |
N2463 | 24V | 200KW | 3000RPM | BI-DIRECTIONAL | 63mm |
MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm |
ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm |
M208XXN | 24V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY211 | 24V | 0.8KW | 3600RPM | CW | 80mm |
ZD2480 | 24V | 0.8KW | 3000RPM | CCW | 130mm |
ZDY24800 | 24V | 0.8KW | 3200RPM | CCW | 80mm |
ZDY218 | 24V | 1.2KW | 3200RPM | CW | 80mm |
ZD2409A | 24V | 1.2KW | 2350RPM | BI-DIRECTIONAL | 126mm |
W9405 | 24V | 2.0KW | 2600RPM | CCW | 114mm |
W8950 | 24V | 2.0KW | 3300RPM | CCW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
N2024C | 24V | 2.0KW | 2700RPM | CW | 114mm |
ZD2930 | 24V | 2.0KW | 2600RPM | CW | 114mm |
MD24160 | 24V | 2.0KW | 2700RPM | CW | 114mm |
N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD293A | 24V | 2.2KW | 2750RPM | CCW | 114mm |
ZD2900 | 24V | 2.2KW | 2800RPM | CW | 114mm |
ZD2940 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223AF | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD24250 | 24V | 2.5KW | 3000RPM | CW | 114mm |
N3024 | 24V | 3.0KW | 3000RPM | CW | 127mm |
ZD2973BF | 24V | 3.0KW | 3000RPM | CCW | 127mm |
ZD2371 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 4.0KW | 3100RPM | CW | 127mm |
XQD-3C | 24V | 4.0KW | 3100RPM | CW | 142mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZDY418 | 48V | 0.8KW | 3200RPM | CW | 80mm |
ZD4201A | 48V | 2.0KW | 2700RPM | CCW | 114mm |
QZD4842 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
ZDY618 | 60V | 0.8KW | 3200RPM | CW | 80mm |
ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm |
ZD7202 | 72V | 2.0KW | 2600RPM | CW | 114mm |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
