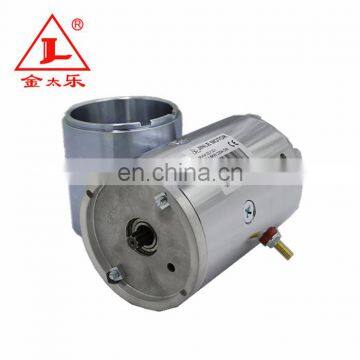

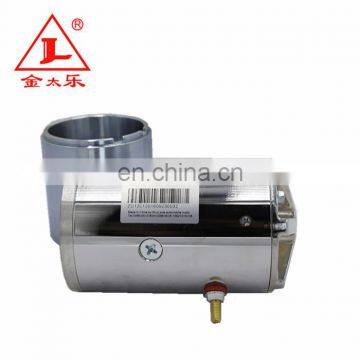

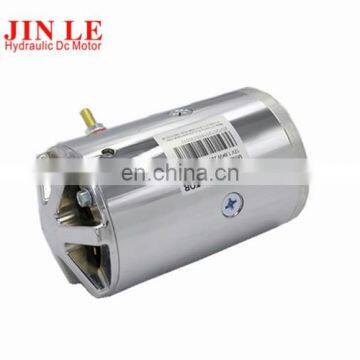

Hydraulic 12 Volt Dc Motor ZD1201
Features of Hydraulic 12 Volt Dc Motor ZD1201 :
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification of Hydraulic 12 Volt Dc Motor ZD1201 :
| Type | ZD1201 |
| Voltage | 12V |
| Power | 1.6W |
| Speed | 2500RPM |
| Rotation | CW |
| O.D. | 114mm |
| Operating Mode | S3 |
| Insulation Class | F |
| Protection Degree | IP54 |
| Weight | 7.5kg |
| Torque | 6N.m |
Curve for Hydraulic 12 Volt Dc Motor ZD1201 :
Parameter for Hydraulic 12 Volt Dc Motor ZD1201 :
| Unload | Speed | 6815 RPM |
| Current | 66.3 A | |
| Max_Torque | Torque | 6.39 N.m |
| Current | 219.91 A | |
| Speed | 2356 RPM | |
| Efficiency | 59.22% | |
| Output Power | 1575.2 W | |
| Max_Efficiency | Efficient | 77.63% |
| Speed | 5472 RPM | |
| Torque | 1.22 N.m | |
| Current | 75.36 A | |
| Output Power | 699 W | |
| Max_Pout | Efficiency | 59.22% |
| Speed | 2356 RPM | |
| Torque | 6.39 N.m | |
| Current | 219.91 A | |
| Output Power | 1575.02 W |
Welcome to inquire about Hydraulic 12 Volt Dc Motor ZD1201 .
Hot Products:
12V 1.7KW DC Motor 24V 3.5KW DC Motor 24V 0.8KW DC Motor 48V 2.0KW DC Motor
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
