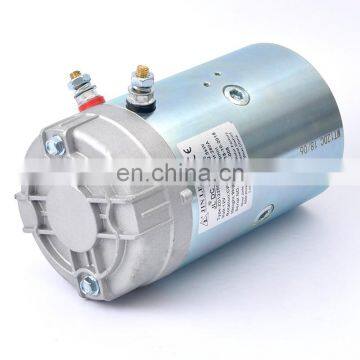

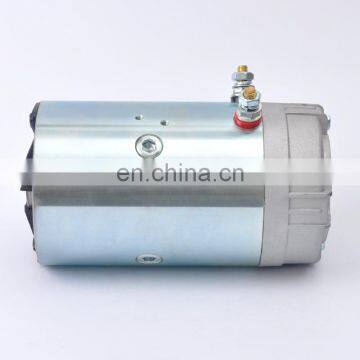

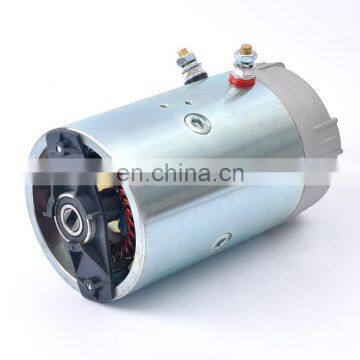

24V 2.8KW Industrial Machinery DC Motor High Torque
Product Description
500Watt and 800Watt motors are only 80mm in diameter with a variety of start switch mounting points. 1800Watt and 2kW motors have an integrated thermal overload to ensure that the brush temperature inside the motors are limited.
The 3kW 24VDC motor has a built in ventilation fan to give extended running times. This motor is extremely strong and can give the highest pressure and flows with S2 ratings up to 10 minutes.
Our Wound Field DC Motors are available in 3", 4.5″, 5", 5.6" diameters. They have outputs ranging from 1/3 to 5 HP and produce speeds from 2,000 to 3,600 RPM's at 12 to 72 volts.
SPECIFICATION FOR High Torque 3KW 24 Volt DC Motor Electric For Excavator
|
||||||||||||
Type |
Voltage |
Power |
Speed |
Rotation |
O.D. |
Current |
||||||
ZD24250 |
24V |
2.8KW |
3000RPM |
CW |
114mm |
185A |
||||||
Unload
|
Speed |
4738RPM |
Current |
16.190A |
|
Max_Torque
|
Torque |
13.210N.m |
Current |
169.720A |
|
Speed |
1846RPM |
|
Efficiency |
62.72% |
|
Output Power |
2553.60W |
|
Max_Efficiency
|
Efficiency |
69.55% |
Speed |
2539RPM |
|
Torque |
5.760N.m |
|
Current |
91.630A |
|
Output Power |
1532.40 W |
|
Max.Pout
|
Efficiency |
62.72% |
Speed |
1846RPM |
|
Torque |
13.210N.m |
|
Current |
169.720A |
|
Output Power |
2553.60W |
Q: Are you a trading company or manufacturer ?
A: We are professional hydraulic dc motors and hydraulic power units factory. We develop and manufacture various kinds of types.
Q: How about your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days for sample order. For mass order 15-30 days.
Q: Do you provide samples ?
A: Yes, you can. Welcome to place sample order to check our quality. We do believe our high quality products will bring more orders for your from your clients.
Q: Do you accept OEM/ODM service?
A: Yes! We do accept. We have experienced R&D team, so welcome to place OEM/ODM orders to us.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: How can I get your pricelist?
A: Send an enquiry to us and tell us you need our pricelist, our sales will reply you within 12 hours with pricelist.
Q: Any guarantee for your products?
A: Our company's culture is "Quality is our culture!" All of your products with 12 months FREE GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!
Q: Any certifications for your products?
A: Our dc motors pass CE, EMC, LVD certifications, so they can be sold to worldwide safely!
Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have Alibaba Pay, T/T, WU payment terms options, do business with us, your money will be in safe, your business will be in safe!
