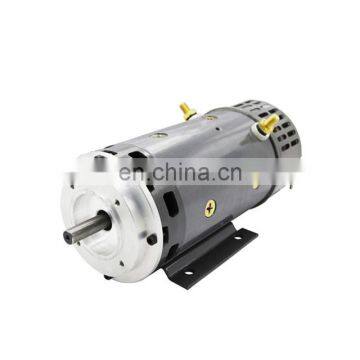

High Power 12V 3000W Direct Brush DC Motor Hydraulic

High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-1
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-2
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-3
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-4
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-5
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-6
High Power 12V 3000W Direct Brush DC Motor Hydraulic thumbnail-7
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-1
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-2
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-3
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-4
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-5
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-6
High Power 12V 3000W Direct Brush DC Motor Hydraulic photo-7
US$ 120 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINLE
Place of Origin:
China
Model Number:
ZD1973BF
Contact Supplier Request Quote Chat Now
Wuxi Jinle Automobile Motor Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JINLE
Place of Origin China
Model Number ZD1973BF
Certification CE
Torque 10N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Continuous Current(A) Current
Speed(RPM) 3000RPM
Commutation Brush
Product Description

High Power 12V 3000W Direct Brush DC Motor Hydraulic


We attend several fairs in domestic and overseas.
1) Canton Fair in Spring and Autumn
2) PTC in Shanghai
3) Hannover in Germany
4) Win Eurasia in Turkey

Product Description

Jinle motors include forklift drive motor, automobile tail gate motor, van wing door motor, truck stamped system motor and truck canopy system motor etc.

According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.
1) Motor' type can be divided into 12V , 24V , 48V , 60V , 72V voltage system.
2) Output power ranges from 0.5 KW - 4.5 KW.
3) Rotation : CW / CCW / Bi-directional
4) Outside diameter covers 56mm , 63mm , 80mm , 114mm , 127mm , 142mm.
5) Torque : 2N.m / 6N.m /10N.m
6) Motors have different adaptors to match various of pump connectors.
7) Motors' surface treatment can be chosen by customer, and we have the technique method such as zinc plated, chromium plated, powder coated with different color (e.g. black , red , grey , white , golden) on heavy duty motors.

SPECIFICATION FOR High Power 12V 3000W Direct Brush DC Motor Hydraulic
Type
Voltage
Power
Speed
Rotation
O.D.
Current
ZD1973BF
12V
3.0KW
3000RPM
CCW
114mm
210A
ZD2973BF
24V
3.0KW
3000RPM
CCW
114mm
274A

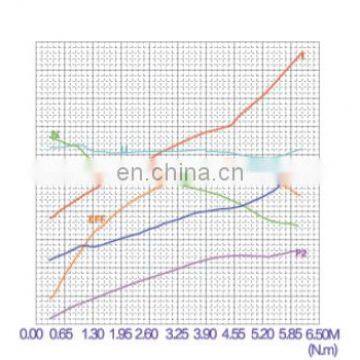

Parameter
ZD1973BF
ZD1240

Unload
Speed
5524RPM
7314RPM
Current
49.230A
57.920A



Max_Torque
Torque
13.020N.m
6.020N.m
Current
212.750A
211.930A
Speed
2620RPM
2325RPM
Efficiency
68.20%
57.86%
Output Power
3571.90W
1465.60W


Max_Efficiency
Efficiency
84.69%
67.04%
Speed
5524RPM
5947RPM
Torque
1.750N.m
1.010N.m
Current
49.230A
74.140A
Output Power
1009.90W
628.90W


Max.Pout
Efficiency
68.20%
57.86%
Speed
2620RPM
2325RPM
Torque
13.020N.m
6.020N.m
Current
212.750A
211.930A
Output Power
3571.90W
1465.60W
