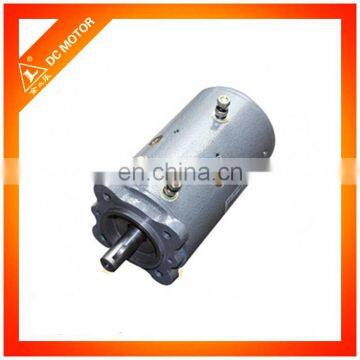

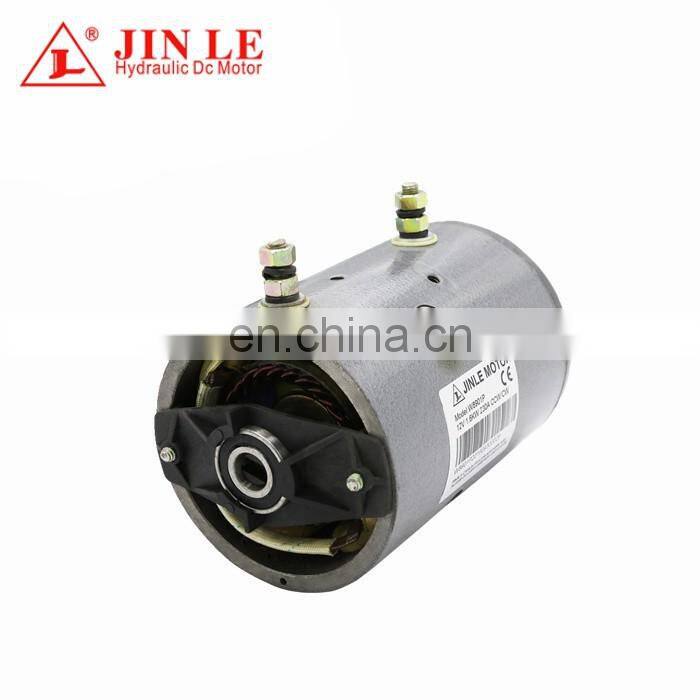

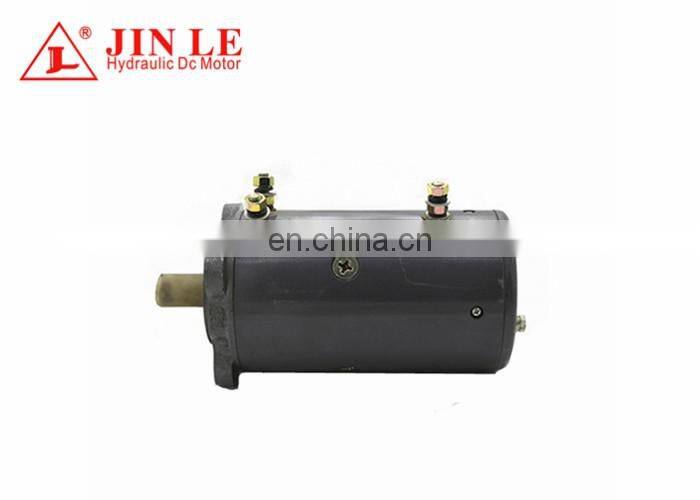

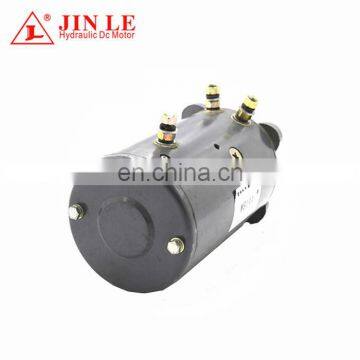

Small Electric Lift Motor 12 Volt Hydraulic Pump Motor DC With Brush

Name: Small Electric Lift Motor 12 Volt Hydraulic Pump Motor DC With Brush
Brand: JINLE
Price: USD $50 - 58 / Piece

FOB Price

USD $50 - $58 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	JINLE	Place of Origin:	Jiangsu, China	Model Number:	W9144
Certification:	CE	Torque:	6N.m
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction:	Series Wound	Efficiency:	IE 4
Protect Feature:	Drip-proof	Voltage(V):	12V	Output Power:	1.4KW
Continuous Current(A):	Current	Speed(RPM):	2150RPM	Commutation:	Brush

Product Description

Small Electric Lift Motor 12 Volt Hydraulic Pump Motor DC With Brush

We attend several fairs in domestic and overseas.

1) Canton Fair in Spring and Autumn

2) PTC in Shanghai

3) Hannover in Germany

4) Win Eurasia in Turkey

Product Description

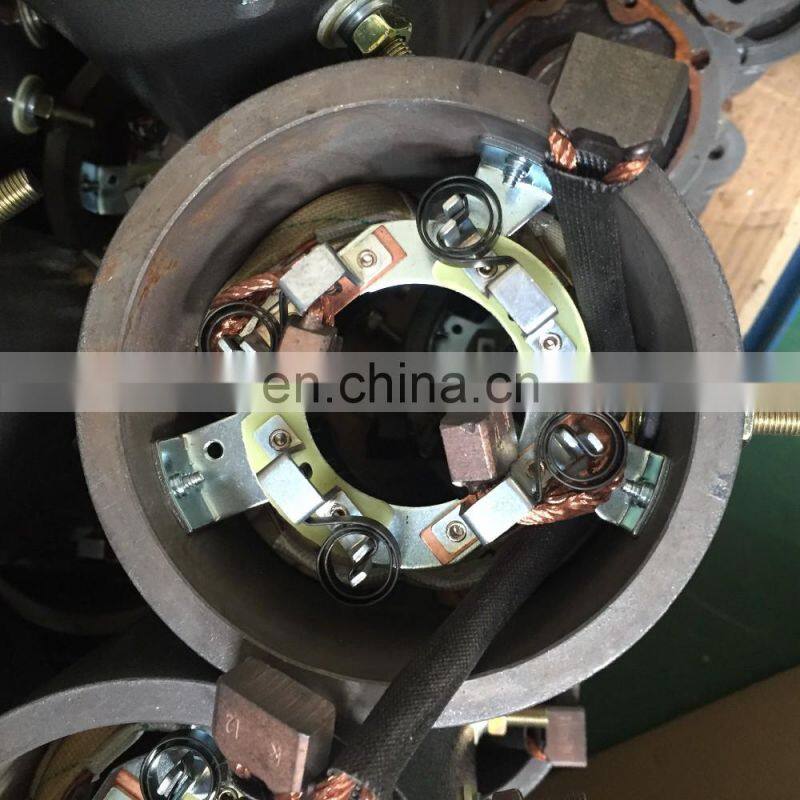

500Watt and 800Watt motors are only 80mm in diameter with a variety of start switch mounting points. 1800Watt and 2kW motors have an integrated thermal overload to ensure that the brush temperature inside the motors are limited.

The 3kW 24VDC motor has a built in ventilation fan to give extended running times. This motor is extremely strong and can give the highest pressure and flows with S2 ratings up to 10 minutes.

Our Wound Field DC Motors are available in 3", 4.5″, 5", 5.6" diameters. They have outputs ranging from 1/3 to 5 HP and produce speeds from 2,000 to 3,600 RPM's at 12 to 72 volts.

*SPECIFICATION FOR Small Electric Lift Motor 12 Volt Hydraulic Pump Motor DC With Brush*

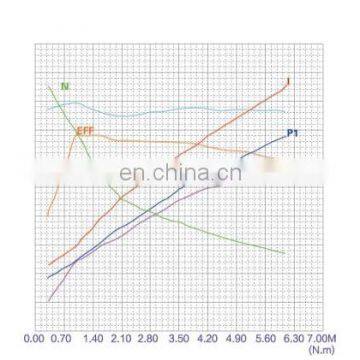

Type	Voltage	Power	Speed	Rotation	O.D.	Current
W9144	12V	1.4KW	2150RPM	BI-DIRECTIONAL	114mm	210A

Unload	Speed	7314RPM
Unload	Current	57.920A
Max_Torque	Torque	6.020N.m
	Current	211.930A
	Speed	2325RPM
	Efficiency	57.86%
	Output Power	1465.60W
Max_Efficiency	Efficiency	67.04%
	Speed	5947RPM
	Torque	1.010N.m
	Current	74.140A
	Output Power	628.90W
Max.Pout	Efficiency	57.86%
	Speed	2325RPM
	Torque	6.020N.m
	Current	211.930A
	Output Power	1465.60W

Packing & Delivery

Packaging
Size	100(L) * 83(W) * 83(D)
Weight	8.0kg/pc
Packaging Details	The normal package is carton box. It also could be according to customers special request.

Payment & Shipment

Full payment for samples orders.
For mass orders, 30% T/T deposit, 70% T/T balance before delivery.

Hot Products

Our Service

1. GOOD QUALITY AND COMPETETIVE PRICE IN MARKET
2. FAST DELIVERY SERVICE
3. SAFETY PACKAGE SERVICE
4, FAST SAMPLE PREPARING SERVICE
5. GOOD AFTER SALE SERVICE
6. 24 HOURS ON LINE SERVIC.

FAQ

Q: Are you a trading company or manufacturer ?
A: We are professional hydraulic dc motors and hydraulic power units factory. We develop and manufacture various kinds of types.

Q: How about your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days for sample order. For mass order 15-30 days.

Q: Do you provide samples ?
A: Yes, you can. Welcome to place sample order to check our quality. We do believe our high quality products will bring more orders for your from your clients.

Q: Do you accept OEM/ODM service?
A: Yes! We do accept. We have experienced R&D team, so welcome to place OEM/ODM orders to us.

Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?

Q: How can I get your pricelist?
A: Send an enquiry to us and tell us you need our pricelist, our sales will reply you within 12 hours with pricelist.

Q: Any guarantee for your products?
A: Our company's culture is "Quality is our culture!" All of your products with 12 months FREE GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!

Q: Any certifications for your products?
A: Our dc motors pass CE, EMC, LVD certifications, so they can be sold to worldwide safely!

Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have Alibaba Pay, T/T, WU payment terms options, do business with us, your money will be in safe, your business will be in safe!
