Home > Products > Hydraulic dc motors > New Design Water-proof 3.5KW Electric 24V DC Motor

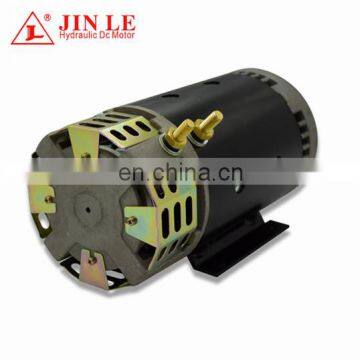

New Design Water-proof 3.5KW Electric 24V DC Motor
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
- 12V Brush 1.4KW Electric DC Winch Motor With Double Ball Bearing
- 12V Brush 1.4KW Electric DC Winch Motor With Double Ball Bearing
- 1.6KW 12V Electric DC Motor With Carbon Brush
- 24V 2.2KW China Hydraulic DC Motor With Slot Shaft for forklift
- 24V 0.8KW Permanent Magnet Motor
- Forklift Permanent Magnet Motor 24 Volts DC
Product Details
Brand Name: | JINLE | Place of Origin: | Jiangsu, China | Model Number: | XQD-30C |
Certification: | CE | Torque: | 10n.m | ||
Usage: | Boat, Car, Electric Bicycle, Home Appliance | Construction: | Series Wound | Efficiency: | IE 4 |
Protect Feature: | Drip-proof | Voltage(V): | 24V | Output Power: | 3.5KW |
Continuous Current(A): | Current | Speed(RPM): | 3100RPM | Commutation: | Brush |
Product Description
New Design Water-proof 3.5KW Electric 24V DC Motor
Features:
stable running
high efficiency
low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification:
1) Type: XQD-3C
2) Voltage: 24V
3) Power: 3.5KW
4) Speed: 3100PM
5) Rotation: CW
6) O.D. : 142mm
7) Operating mode: S2
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 10N.m
Technical Data:
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm
|
