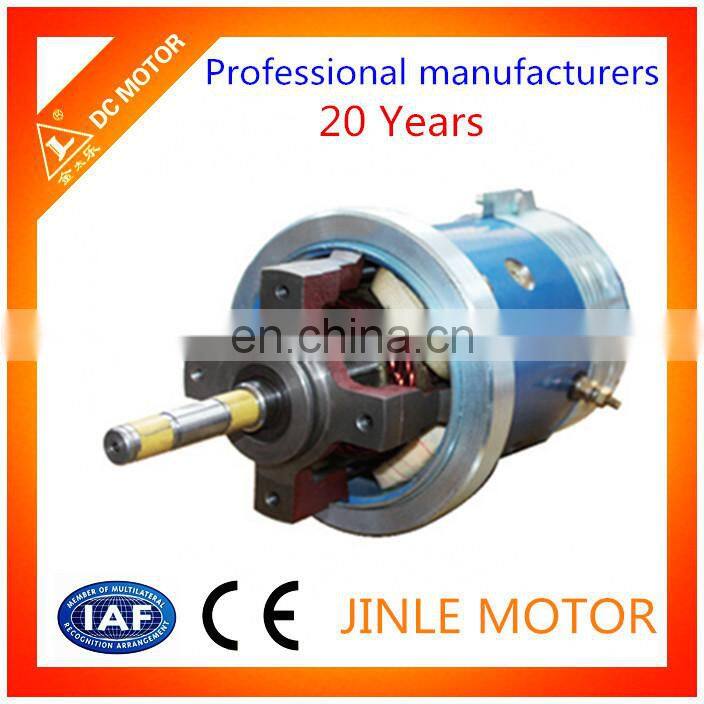

4 Poles 24V 900W Hydraulic DC Motor for Forklift
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
| Brand Name: | JINLE | Place of Origin: | Jiangsu, China | Model Number: | QZD2409 |
| Certification: | CE | Torque: | 10N.m | ||
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Series Wound | Efficiency: | IE 4 |
| Protect Feature: | Drip-proof | Voltage(V): | 24V | Output Power: | 0.9KW |
| Continuous Current(A): | CURRENT | Speed(RPM): | 2150RPM | Commutation: | Brush |
Product Description
4 Poles 24V 900W Hydraulic DC Motor for Forklift
Features of 4 Poles 24V 900W Hydraulic DC Motor for Forklift:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification of 4 Poles 24V 900W Hydraulic DC Motor for Forklift:
1) Type: QZD2409
2) Voltage: 24V
3) Power: 0.9KW
4) Speed: 2150RPM
5) Rotation: BI-DIRECTIONAL
6) O.D. : 126mm
7) Operating mode: S1
8) Insulation Class: F
9) Protection Degree: IP 54
10) Weigt: 15KG
Welcome to inquire about 4 Poles 24V 900W Hydraulic DC Motor for Forklift.
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
