24 Volt Electric Forklift Motor dc for Hydraulic Drive Wheel Motor
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | QZD2411 | |||
| Certification | CE | Torque | 10N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Continuous Current(A) | Current | Speed(RPM) | 2160RPM | |
| Commutation | Brush |
Product Description

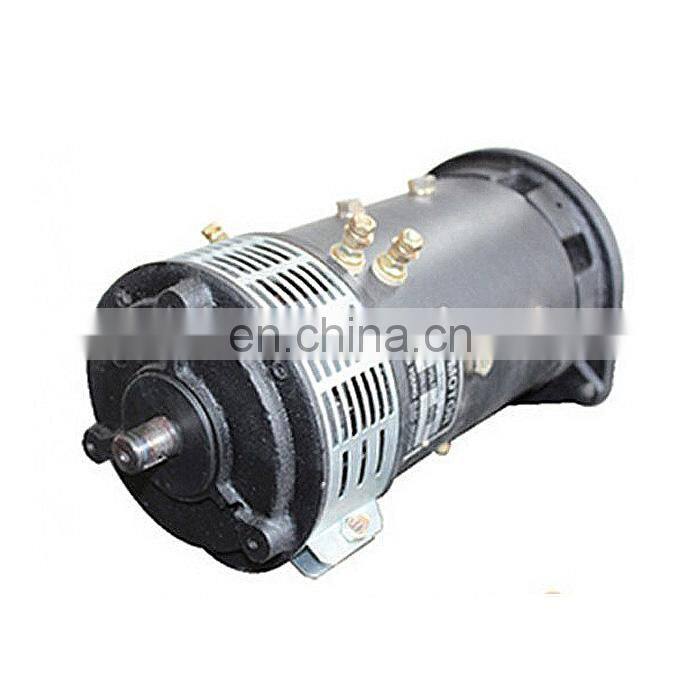

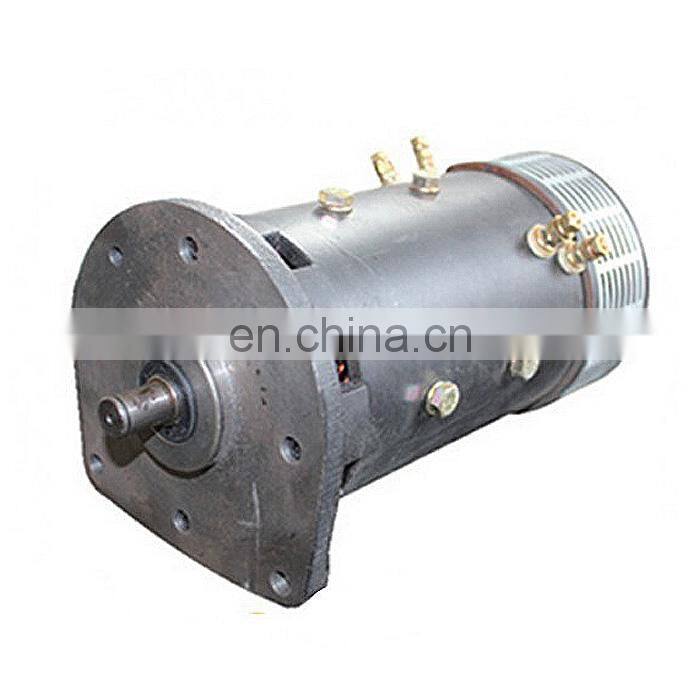

24 volt electric forklift motor dc for hydraulic drive wheel motor
Type: QZD2411
Voltage: 24V
Power: 1.1KW
Speed: 2160RPM
Rotation: BI-DIRECTIONAL
O.D. : 127mm/5'
12V, 24V, 48V, etc
100% COPPER COIL
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
