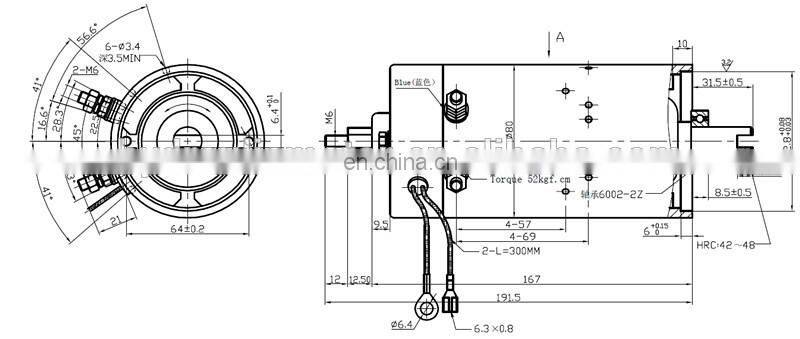

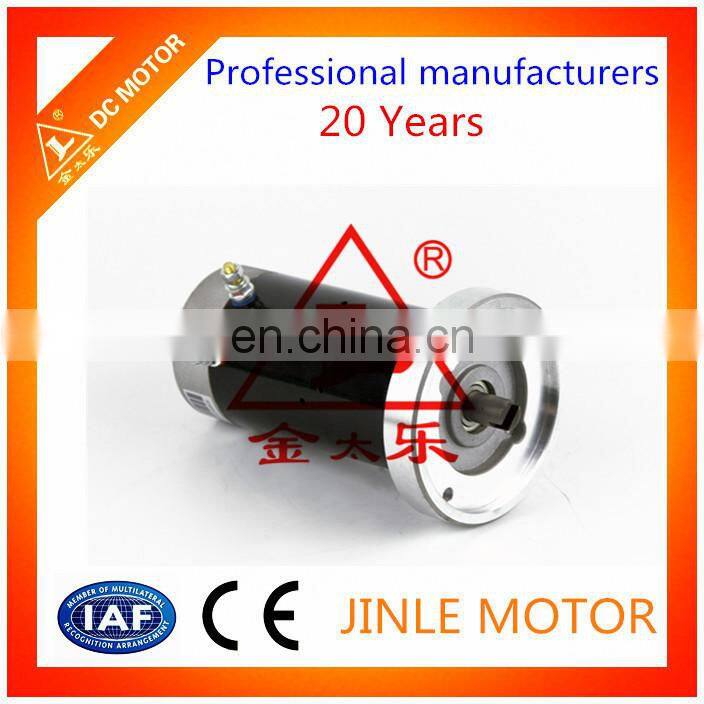

Hydraulic 12V Permanent Magnet Motor DC
Specification for Hydraulic 12V Permanent Magnet Motor DC :
1) Type: M108
2) Voltage: 12V
3) Power: 0.8KW
4) Speed: 3300PM
5) Rotation: CW
6) O.D. : 80mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 2N.m
11) Weight: 2.5KG

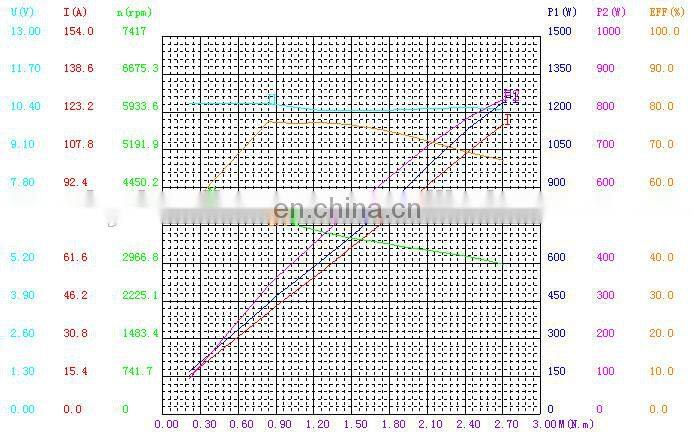

PARAMETER
1. Unload
| Speed | 4290rpm |
| Currency | 15.77A |
2. Max Torque
| Torque | 2.71N.m |
| Currency | 118.660A |
| Speed | 2951rpm |
| Eff | 67.26% |
| Output Power | 836.3W |
3. Max Efficiency
| Eff | 77.58% |
| Speed | 3893rpm |
| Torque | 0.839N.m |
| Currency | 41.35A |
| Output Power | 342.2W |
4. Max Pout
| Eff | 67.26% |
| Speed | 2951rpm |
| Torque | 2.71N.m |
| Currency | 118.66A |
| Output Power | 836.3W |
Welcome to inquire about Hydraulic 12V Permanent Magnet Motor DC
Technical Data
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
W5692 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
W6599 |
12V |
1.7KW |
2720RPM |
CW |
114mm |
W9789 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
ZD4201 |
48V |
2.0KW |
2700RPM |
CW |
114mm |
ZD1223 |
12V |
2.0KW |
2800RPM |
CW |
114mm |
ZD293 |
24V |
2.2KW |
3000RPM |
CW |
114mm |
ZD2930 |
24V |
2.2KW |
2700RPM |
CW |
114mm |
ZD1221 |
12V |
2.0KW |
2900RPM |
CW |
114mm |
ZD2931 |
24V |
2.0KW |
2600RPM |
CW |
114mm |
ZD223A |
24V |
2.2KW |
2700RPM |
CW |
114mm |
ZDY211 |
24V |
0.8KW |
3650RPM |
CW |
80mm |
ZDY212 |
24V |
0.5KW |
2800RPM |
CW |
80mm |
ZDY112 |
12V |
0.5KW |
2300RPM |
CW |
80mm |
ZDY113 |
12V |
0.8KW |
3500RPM |
CW |
80mm |
ZD2973A |
24V |
3.0KW |
3100RPM |
CW |
127mm |
ZD2973A |
24V |
3.0KW |
3100RPM |
CW |
127mm |
ZD2373 |
24V |
3.0KW |
2850RPM |
CW |
125mm |
XQD-3C |
24V |
3.5KW |
3100RPM |
CW |
142mm |
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
W8799 |
12V |
1.5KW |
2400RPM |
CCW |
114mm |
W8935 |
12V |
1.5KW |
2460RPM |
CCW |
114mm |
W8950 |
24V |
2KW |
2600RPM |
CCW |
114mm |
W8999 |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
W9405 |
24V |
1.5KW |
2400RPM |
CCW |
114mm |
ZD193A |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
ZD223A |
24V |
2.2KW |
2700RPM |
CCW |
114mm |
ZD293A |
24V |
2.2KW |
3000RPM |
CCW |
114mm |
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
QZD2402 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2409 |
24V |
0.9KW |
2150RPM |
BI-DIRECTIONAL |
126mm |
QZD2411 |
24V |
1.1KW |
2160RPM |
BI-DIRECTIONAL |
127mm |
QZD2412 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2422 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2445 |
24V |
4.5KW |
1750RPM |
BI-DIRECTIONAL |
180mm |
QZD4840 |
48V |
4.8KW |
1750RPM |
BI-DIRECTIONAL |
218mm |
QZD4841 |
48V |
4.0KW |
2030RPM |
BI-DIRECTIONAL |
170mm |
W8923 |
12V |
1.4KW |
2250RPM |
BI-DIRECTIONAL |
114mm |
W8930B |
12V |
1.5KW |
2380RPM |
BI-DIRECTIONAL |
114mm |
W8941 |
12V |
1.5KW |
2400RPM |
BI-DIRECTIONAL |
114mm |
W9144 |
12V |
1.5KW |
2150RPM |
BI-DIRECTIONAL |
114mm |
W7923 |
12V |
1.2KW |
1700RPM |
BI-DIRECTIONAL |
114mm |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
