High Rpm 3600rpm 24v dc Motor Brushed 800w 1 hp With cw Rotation

1.low noise,stable running

2.easy brush replacement

3.OEM service available high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation

4.efficient and long continuous running time

5. Customization available

6.robust construction for long and reliable service life

7.100% copper wire high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation

8.12V, 24V, 36V, 48V,60V,72V as per customers' option

9.Factory established in 1996 with nearly 20 years' manufacturing experience.

1.Specification of high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation :

Work duty : S3

Insulation class: H
Protection class: Ip54

Price:We have our own factory so that we can offer the more competitive price

Quality:Topest materials,skilled workers and strict test system to provide good quality products

Usage:The products are widely used in electric folk-lift truck, electric rail car, electric sightseeing car and so on

2.Drawings of high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation

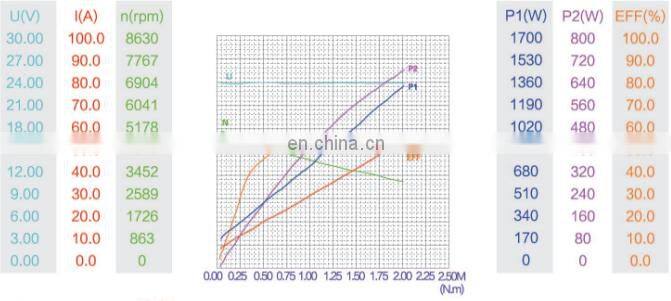

3.Parameters:



Unload	Speed(n)	5120(rpm)
	Current(l)	9.310(A)
Max_Torque	Torque(M)	2.024(N.m)
	Current(I)	56.230(A)
	Speed(n)	3242(RPM)
	Eff	50.78%
	Output Power(P2)	687.10(W)
Max_Efficiency:	Eff	55.58%
	Speed(n)	4056(RPM)
	Torque(M)	0.990(N.m)
	Current(I)	31.520(A)
	Output Power(P2)	420.50(W)
Max_Pout:	Eff	50.78%
	Speed(n)	3242(RPM)
	Torque(M)	2.024(N.m)
	Current(I)	56.230(A)
	Output Power(P2)	687.10(W)





Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation

Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?

 high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation

Q: Could we get the samples?

A: Yes! Definitly! The samples will be sent to you.
