High torque electric DC motors
for hydraulic pump 24 volt 3kw CCW
Features :
1.low noise,stable running
2.easy brush replacement
3.OEM service available High torque electric DC motors for hydraulic pump 24 volt 3kw CCW
4.efficient and long continuous running time
5. Customization available
6.robust construction for long and reliable service life
7.100% copper wire High torque electric DC motors for hydraulic pump 24 volt 3kw CCW
8.12V, 24V, 36V, 48V,60V,72V as per customers' option
9.Factory established in 1996 with nearly 20 years' manufacturing experience
1.Specification of High torque electric DC motors for hydraulic pump 24 volt 3kw CCW :
| type | voltage | power | Speed | Rotation | O.D |
| ZD2973BF | 24V | 3KW | 3000rpm | CCW | 127MM |
| ZD1973BF | 12V | 3KW | 3000rpm | CCW | 127MM |
Work duty : S2
Insulation class: H
Protection class: Ip54
Price:We have our own factory so that we can offer the more competitive price
Quality:Topest materials,skilled workers and strict test system to provide good quality products
Usage:The products are widely used in electric folk-lift truck, electric rail car, electric sightseeing car and so on

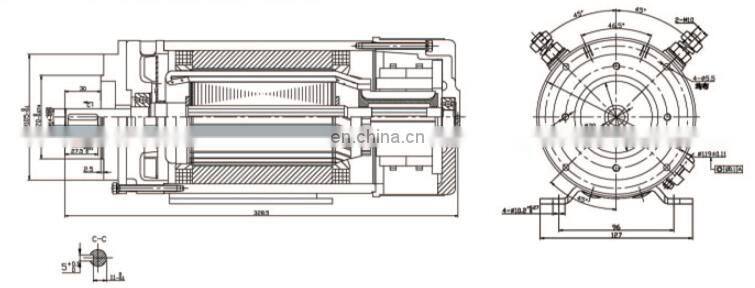

2.Drawings of High torque electric DC motors for hydraulic pump 24 volt 3kw CCW

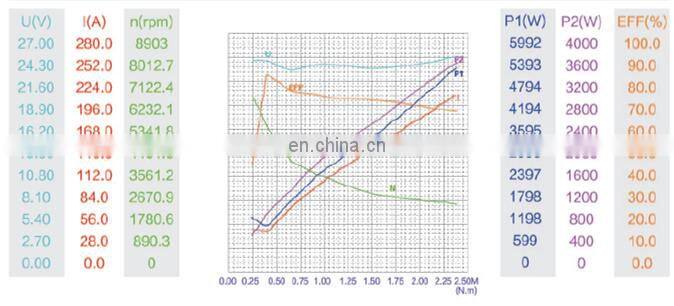

3.Parameters:
| Unload | Speed(n) | 5524(rpm) |
| Current(l) | 49.230(A) | |
| Max_Torque | Torque(M) | 13.020(N.m) |
| Current(I) | 212.750(A) | |
| Speed(n) | 2620(RPM) | |
| Eff | 68.20% | |
| Output Power(P2) | 3571.90(W) | |
| Max_Efficiency: | Eff | 84.69% |
| Speed(n) | 5524(RPM) | |
| Torque(M) | 1.750(N.m) | |
| Current(I) | 49.230(A) | |
| Output Power(P2) | 1009.90(W) | |
| Max_Pout: | Eff | 68.20% |
| Speed(n) | 2620(RPM) | |
| Torque(M) | 13.020(N.m) | |
| Current(I) | 212.750(A) | |
| Output Power(P2) | 3571.90(W) |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
High torque electric DC motors for hydraulic pump 24 volt 3kw CCW
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
High torque electric DC motors for hydraulic pump 24 volt 3kw CCW
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
