Home > Products > Hydraulic dc motors > High Power dc motor 24V 3KW for electric motor
High Power dc motor 24V 3KW for electric motor
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | N3024 | Type | Micro Motor | |
| Certification | CE | Torque | 10N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | Other | |||
| Continuous Current(A) | 120A | Speed(RPM) | 3000RPM | |
| Commutation | Brush |
Product Description
High Power dc motor 24V 3KW for electric motor
Features :
1.low noise,stable running
2.easy brush replacement
3.OEM service available High Power dc motor 24V 3KW for electric motor
4.efficient and long continuous running time
5. Customization available
6.robust construction for long and reliable service life
7.100% copper wire High Power dc motor 24V 3KW for electric motor
8.12V, 24V, 36V, 48V,60V,72V as per customers' option
9.Factory established in 1996 with nearly 20 years' manufacturing experience
1.Specification of High Power dc motor 24V 3KW for electric motor :
| type | voltage | power | Speed | Rotation | O.D |
| N3024 | 24v | 3kw | 3000rpm | CW | 127MM |
Work duty : S2
Insulation class: H
Protection class: Ip54

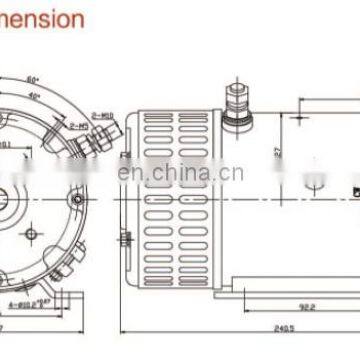

2.Drawings of High Power dc motor 24V 3KW for electric motor
3.Parameters:
| Unload | Speed(n) | 5524(rpm) |
| Current(l) | 49.230(A) | |
| Max_Torque | Torque(M) | 13.020(N.m) |
| Current(I) | 212.750(A) | |
| Speed(n) | 2620(RPM) | |
| Eff | 68.20% | |
| Output Power(P2) | 3571.90(W) | |
| Max_Efficiency: | Eff | 84.69% |
| Speed(n) | 5524(RPM) | |
| Torque(M) | 1.750(N.m) | |
| Current(I) | 49.230(A) | |
| Output Power(P2) | 1009.90(W) | |
| Max_Pout: | Eff | 68.20% |
| Speed(n) | 2620(RPM) | |
| Torque(M) | 13.020(N.m) | |
| Current(I) | 212.750(A) | |
| Output Power(P2) | 3571.90(W) |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
High Power dc motor 24V 3KW for electric motor
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
High Power dc motor 24V 3KW for electric motor
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
