Type | ZD1223 |
Voltage | 12V |
Power | 1.6KW |
Speed | 2350RPM |
Rotation | CW |
o.d | 114MM |
Operating mode | S3 |
Effiency | IE2 |
Weight | 7.5KG |
Insulation | F |
Protection Class | IP54 |






2.Features High Rpm Hydraulic DC Motor 12v 1600w
This High Rpm Hydraulic DC Motor 12v 1600w have following features:
(1)stable running, high efficiency, low noise
(2)good service after sale
(3)12V, 24V, 48V, 60V etc. on your request
(4)Customized production is available!
(5)Supply for OEM Production!
(6)nearly 20 years' manufacturing experience
3.We provide you OEM or ODM service High Rpm Hydraulic DC Motor 12v 1600w
(1) good quality service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(2) fast delivery service;(3) safety package service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(4)fast sample valves preparing service;
(5) good after sale service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(6)24 hour online service;

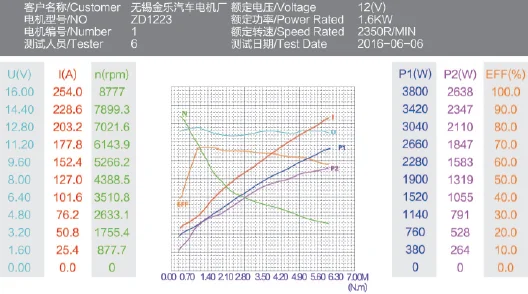

4.Parameters High Rpm Hydraulic DC Motor 12v 1600w
Current(l) =57.920(A)
Max_Torque
Torque(M) =6.020(N.m) 12volt 1.7kw dc motor for forklift truck pump
Current(I) =211.930(A)
Speed(n) =2325(RPM)
Eff =57.86%
Output Power(P2) =1465.60(W)
Max_Efficiency:
Eff =67.04% 12v 1.7kw dc motor for power unit pack
Speed(n) =5947(RPM) 12volt 1.7kw dc motor for forklift truck pump
Torque(M) =1.010(N.m)
Current(I) =74.140(A)
Output Power(P2) =628.90(W)
Max_Pout:
Eff =57.86%
Speed(n) =2325(RPM)
Torque(M) =6.020(N.m)
Current(I) =211.930(A)
Output Power(P2) =1465.60(W)












1. Business Type
High Rpm Hydraulic DC Motor 12v 1600w
a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops
2. Certificates
CE, ISO9001:2000 etc.
3. How long could we get the goods?24v 500w hydraulic manget motor with carbon brush
High Rpm Hydraulic DC Motor 12v 1600w
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders
4. We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
High Rpm Hydraulic DC Motor 12v 1600w
a. 100% inspection before packing
b. Spot inspection before shipment
