DC Motor For Forklift Truck 12V 2000W
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | Wuxi Jinle | Place of Origin: | Jiangsu, China | Model Number: | ZD1221 |
Certification: | CE | Torque: | 6N.m | ||
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Series Wound | Efficiency: | IE 4 |
Voltage(V): | 12V | Output Power: | 2.0kw | ||
Continuous Current(A): | Current | Speed(RPM): | 2800rpm | Commutation: | Brush |
Product Description
JINLE Recent Fairs we will Attend :
2017 PTC ASIA in Shanghai in Oct.31-Nov.3 , booth No: Hall E3, G3-2
2017 Autumn Canton Fair in Guangzhou
2018 Hannover Messe in April in Germany
Welcome to visit our booth!
DC Motor For Forklift Truck 12V 2000W
Our Jinle hydraulic DC Motors are widely used in forklift lifting, van tail board, wing plate and hydraulic power unit equipment etc. Consists of stator, 100% copper wire armature, commutor and carbon brush etc.
Specifications of DC Motor For Forklift Truck 12V 2000W
Model: ZD1221
Material: 100% copper wire armature
Voltage: 12V
Power: 2000W
Speed: 2800rpm
Rotation: CW
O.D: 114mm

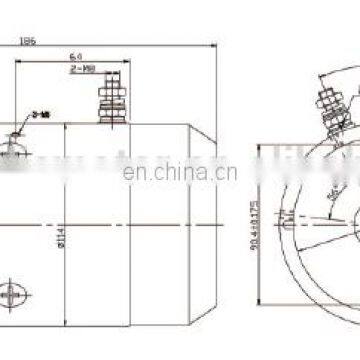

Outline Dimension of DC Motor For Forklift Truck 12V 2000W

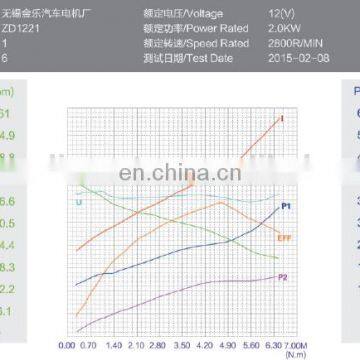

Motor Load Characteristic Curve of DC Motor For Forklift Truck 12V 2000W
Parameter of DC Motor For Forklift Truck 12V 2000W
Unload: | ||
Speed(n) | = | 3954rpm |
Current(l) | = | 106.520A |
Max_Torque: | ||
Torque(M) | = | 6.860N.m |
Current(I) | = | 274.810A |
Speed(n) | = | 2070rpm |
Eff | = | 44.72% |
Output Power(P2) | = | 1487.30W |
Max_Efficiency: | ||
Eff | = | 57.66% |
Speed(n) | = | 2642rpm |
Torque(M) | = | 4.970N.m |
Current(I) | = | 201.230A |
Output Power(P2) | = | 1347.40W |
Max_Pout: | ||
Eff | = | 44.72% |
Speed(n) | = | 2070rpm |
Torque(M) | = | 6.860N.m |
Current(I) | = | 274.810A |
Output Power(P2) | = | 1487.30W |
Advantage of DC Motor For Forklift Truck 12V 2000W
1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable
5) Advanced automatic and semi-automatic equipments
6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option
8) High class professional R&D team and skilled workers
9) Factory established in 1996 over 20 years' manufacturing experience
10)Highly qualified service, able to solve any problems
Some pictures about raw materials, advanced equipments and exhibitions of Jinle motors. Click the picture for more details.
For more options of Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit, please click on the picture to enter Jinle .
Customized production is available. Send me the parameters, we will customize for you!
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit mainly for fixed boarding bridge, dump truck, electric stacker, van wing door, lift platform, vehicle tailboard, car lift, forklift etc.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit use export standard packaging:
Internal packing: air bubble pad or plastic bag with corrugated carton with required lables
External packing: pallet with required lables
Of course, any special package requirements are depend on your esteemed company.
We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for research and development. The motors' annual output has been more than 200,000 sets.
So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK, Turkey Hidros and HELI in China.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit
We have been attentively persisting in manufacturing hydraulic dc motors for 20 years.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit
Below is the information about Jinle Factory transactions conducted via . If you require further details regarding the transaction data, please click on the below picture.
Wuxi Jinle Automobile Motor Factory has passed Certificate of Compliance (CE certification) and the quality management system certification (ISO9001:2000). The Jinle staff are always take the company development as self task. With years of effort, Jinle hydraulic dc motors have acheived "private techinology enterprises in Jiangsu province","Jiangsu Province integrity rights shuangyou demonstration unit" awards. Now we are Chinease quality service honor AAA demonstration unit.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v etc. and ac/dc hydraulic power pack unit
Click on the below picture for industrial certification details of Jinle hydraulic dc motor/12v 24v 48v 60v 72v electric motor and hydraulic power pack unit.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v and ac/dc hydraulic power pack unit
Total Annual Revenue: above US$100 million
Export Percentage: 71%-80%
No. of Employees in Trade Department: 3-5 people
Average Lead Time: 30 days
Please click on the picture for details.
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v and power pack unit
1. Business Type
a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops
2. Certificates
CE, ISO9001:2000 etc.
3. How long could we get the goods?
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders
4. Quality Control
We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
a. 100% inspection before packing
b. Spot inspection before shipment
If you need catalog , pls no hesitate to ask:
Any questions about hydraulic dc motor, hydraulic power unit or our factory informations, please no hesitate to contact me. I'm always here waiting for you.
Please click on the picture to browse our homepage.
