1.1KW 24v dc Motor Drives
- SHANGHAI
- T/T Credit Card
You May Like
-
Hydraulic DC Motor 24V 2.2KW 114mm O.D N2024
-
Hydraulic dc Power Motor 12V 1.6KW Model for Forklift
-
Aerial Platform Truck DC Motor Hydraulic 24V High Power/speed/torque
-
3kw Hydraulic DC Motor 24V High Torque S2 Duty
-
Power Pack Electric Motor 12V 1.6KW N1612C
-
Electric Vehicle Hydraulic 24V DC Motor 3000W
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | QZD2411 | |||
| Certification | CE | Torque | 6NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24v | Output Power | 1.1kw | |
| Continuous Current(A) | 120A | Speed(RPM) | 1750RPM | |
| Commutation | Brush |
Product Description

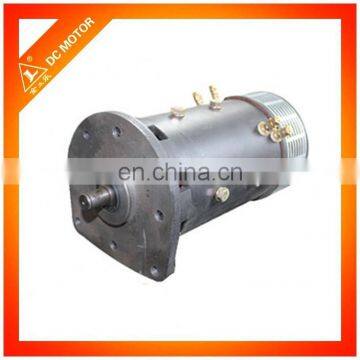

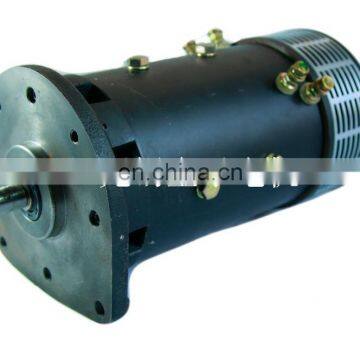

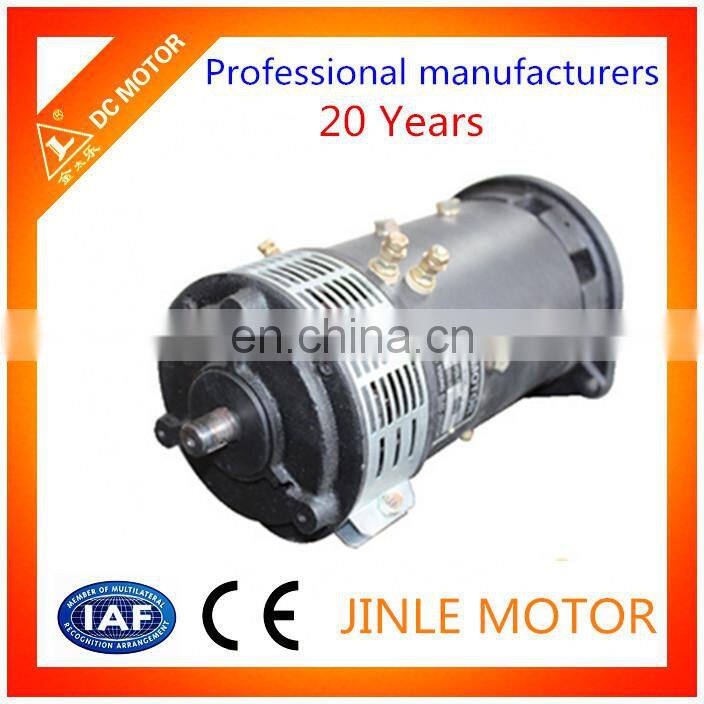

1.1KW 24v dc motor drives
Details of 24v dc motor drives
Type: QZD2411
Voltage: 24V
Power: 1.1KW
Speed: 2160RPM
Rotation: BI-DIRECTIONAL
O.D. : 127mm/5'
Torque: 10N.m
Weight: 25KG
12V, 24V, 48V, etc

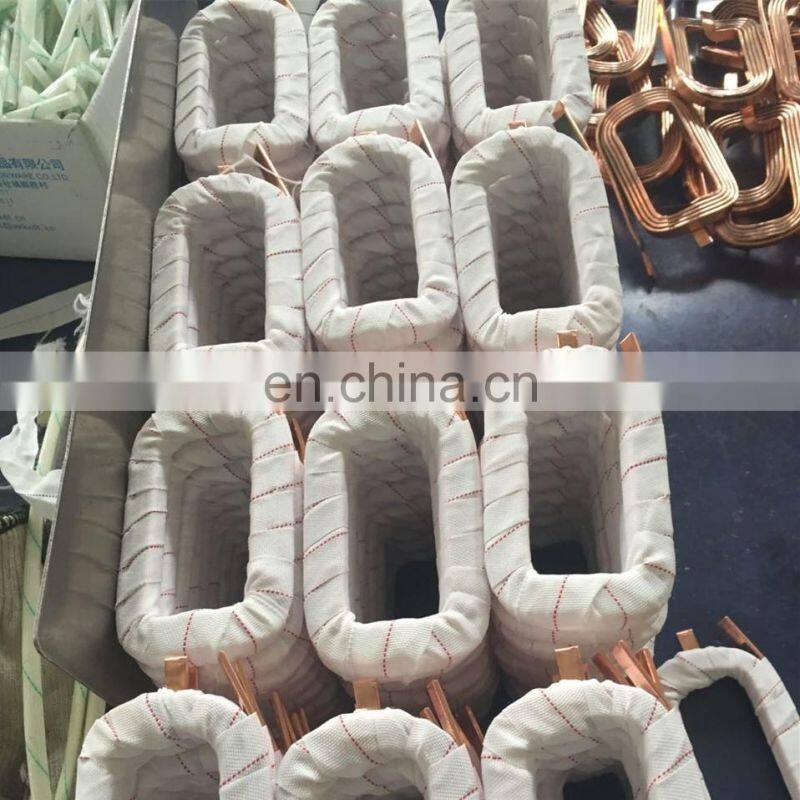

100% COPPER COIL
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
| XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
| QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
| QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
| QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
| QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
Some of other models:
