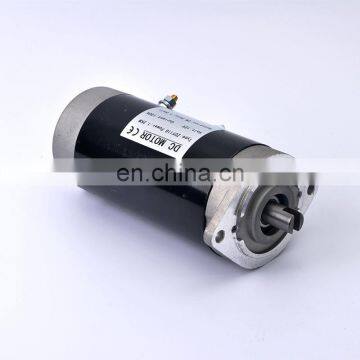

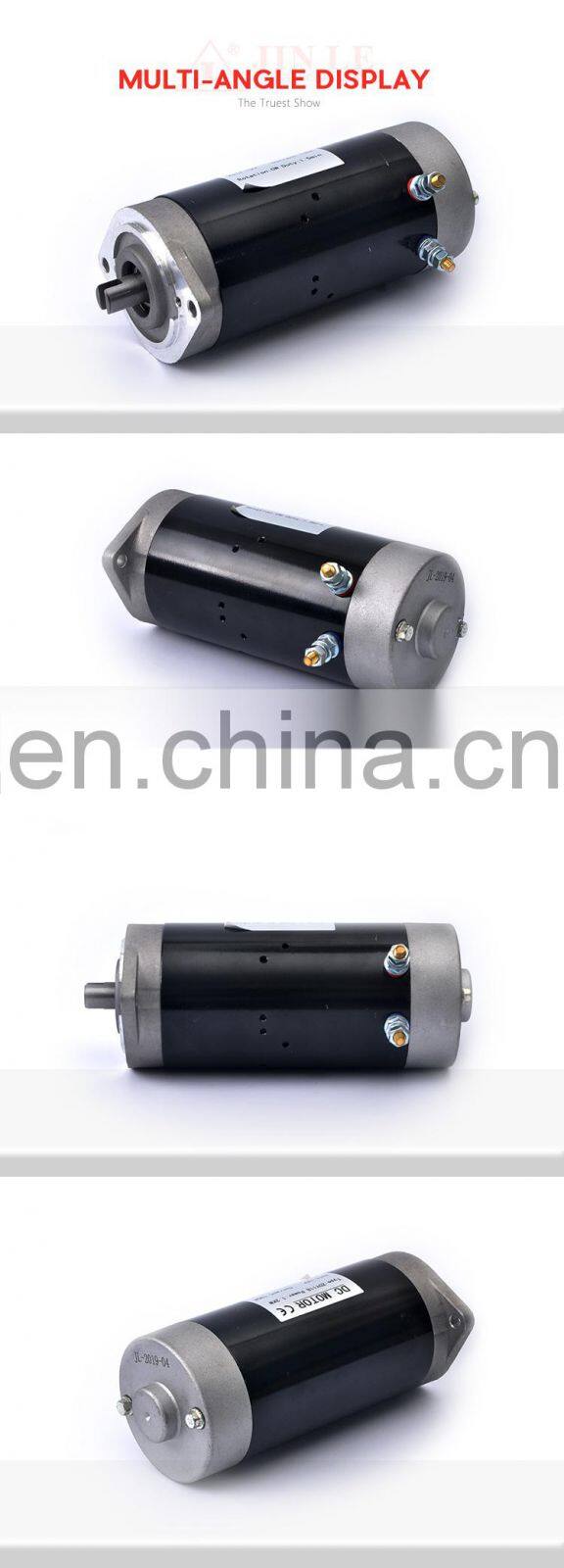

12v Hydraulic Pump dc Motor for Van Wing Door

12v Hydraulic Pump dc Motor for Van Wing Door photo-1
12v Hydraulic Pump dc Motor for Van Wing Door photo-2
12v Hydraulic Pump dc Motor for Van Wing Door photo-3
12v Hydraulic Pump dc Motor for Van Wing Door photo-4
12v Hydraulic Pump dc Motor for Van Wing Door photo-5
12v Hydraulic Pump dc Motor for Van Wing Door photo-6
12v Hydraulic Pump dc Motor for Van Wing Door photo-7
US$ 27 - 35 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
China
Model Number:
ZDY118
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Jinle
Place of Origin China
Model Number ZDY118
Certification CE
Torque 2N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Shunt Wound
Efficiency IE 4
Continuous Current(A) Current
Speed(RPM) 3200rpm
Commutation Brush

12v hydraulic pump dc motor for van wing door

Product Description

 Jinle hydraulic DC motors is mainly used for hydraulic power unit, forklift drive motor, automobile tail plate motor, van wing door motor, truck stamped system motor and truck canopy system motor etc. Consists of stator, 100% copper wire armature, commutor and carbon brush etc.



       Specifications of hydraulic dc motor :

Model

MaterialVoltagePowerSpeed

Rotation

Direction

O.D
ZDY118

100%

copper wire

12v 1.2kw 3200rpmCW80mm



 12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door

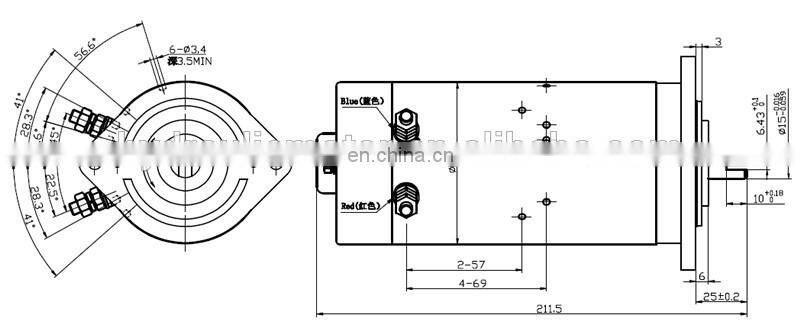

Outline Dimension of hydraulic dc motor ZDY11812v hydraulic pump dc motor for van wing door

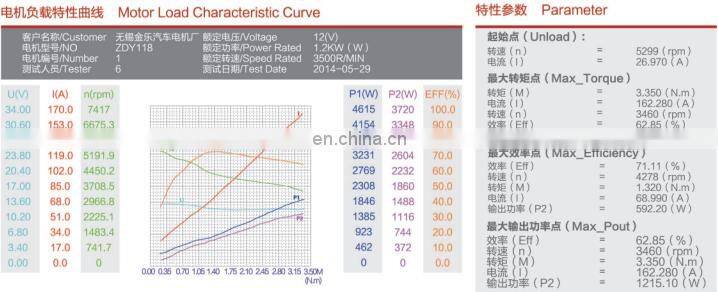

 Hydraulic dc motor ZDY118 load characteristic curve and parameter

 12v hydraulic pump dc motor for van wing doorAdvantage of our hydraulic dc motor

1) Low noise, easy brush replacement, 100% copper wire
2) Strictly control every production, inspection, packing link
3) Efficient and long continuous running time,one year warranty
4) OEM service avaliable

5) Customization available

6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option

8) High class professional R&D team and skilled workers

9) Factory established in 1996 with 20 years' manufacturing experience

10)Highly qualified service, able to solve any problem

 12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door12v hydraulic pump dc motor for van wing door

FAQ

1. Business Type

a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters

c. Employees: over 80 in office & workshops



2. Certificates

CE, ISO9001:2000 etc.



3. How long could we get the goods?

a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders



4. Quality Control



We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.

a. 100% inspection before packing

b. Spot inspection before shipment

 12v hydraulic pump dc motor for van wing door
