Home > Products > Hydraulic dc motors > 1HP dc motor 12V permanent magnet For Power Unit

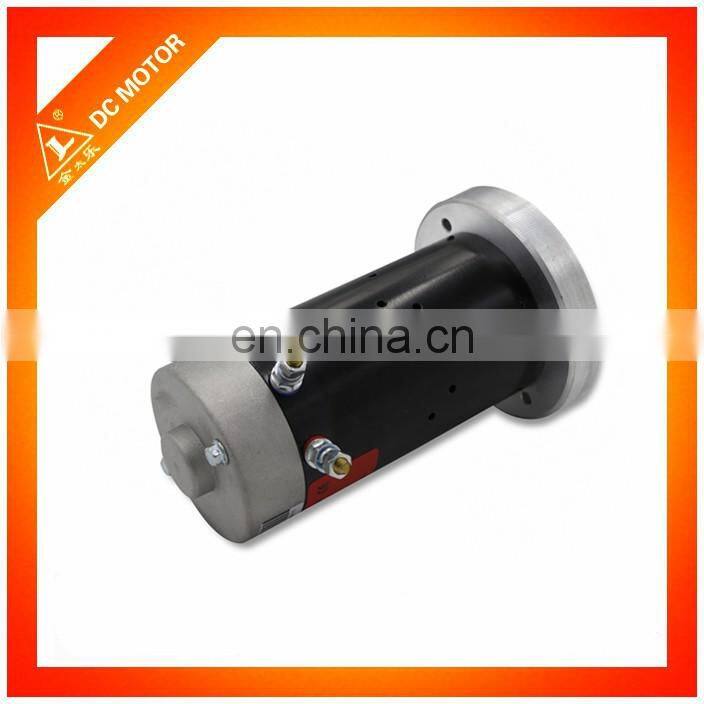

1HP dc motor 12V permanent magnet For Power Unit
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
Product Details
Brand Name: | Jinle | Place of Origin: | Jiangsu, China | Model Number: | MA08XXN |
Type: | Micro Motor | Certification: | CE | Torque: | 2NM |
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 4 |
Protect Feature: | Drip-proof | Voltage(V): | 12v | Output Power: | 800w |
Continuous Current(A): | 120A | Speed(RPM): | 3000RPM | Commutation: | Brush |
Product Description
1HP dc motor 12V permanent magnet For Power Unit
Specification of Hydraulic 1 HP 12V DC Motor Permanent:
Type | Voltage | Power | Speed | Rotation | O.D. | Torque | Duty | Weight |
MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 | 2.5kg |
MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 | 2.5kg |
Insulation Class: F
Protection Class: IP54
Features of Hydraulic 1 HP 12V DC Motor Permanent:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
