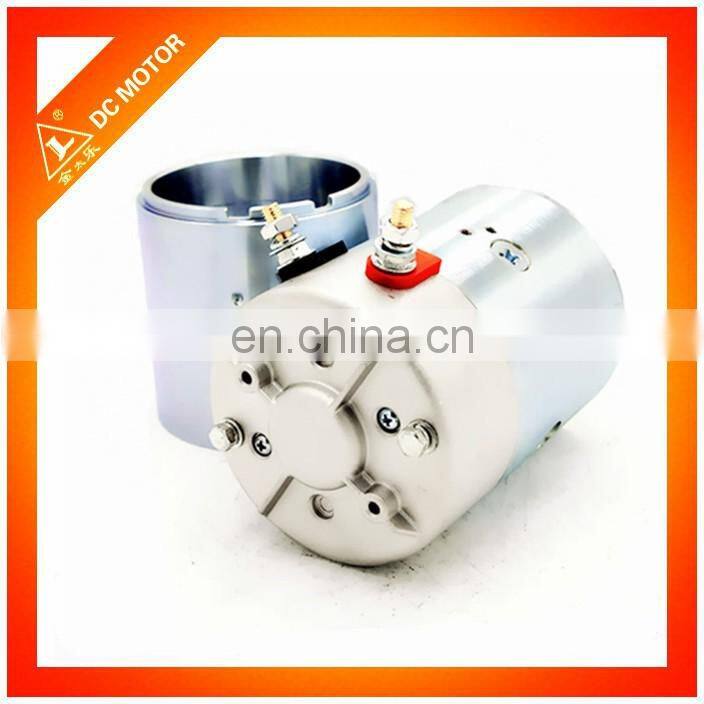

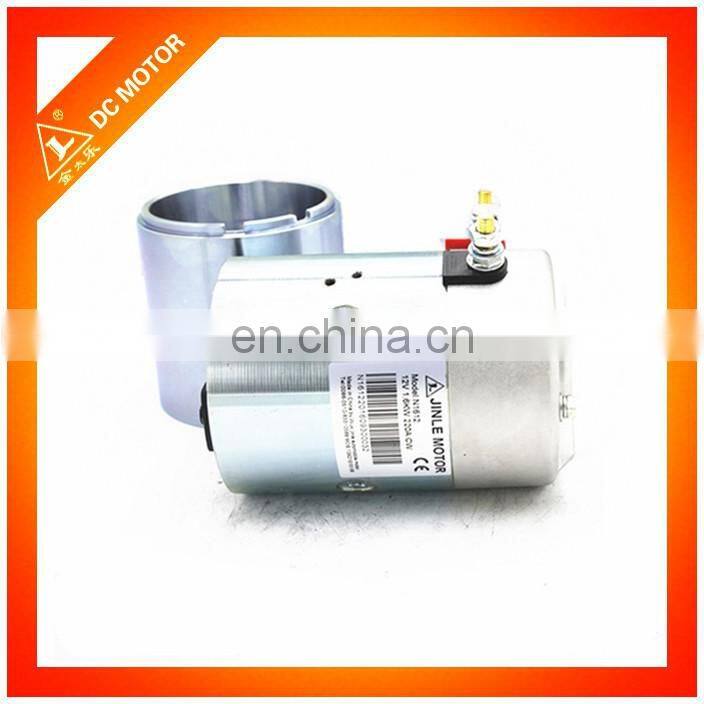

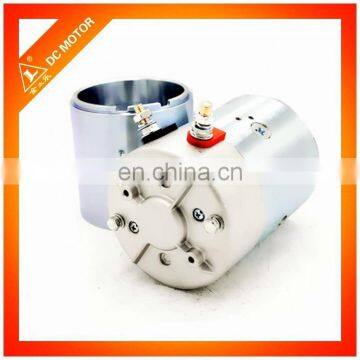

JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump

Wuxi Jinle Automobile Motor Factory
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-1
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-2
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-3
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-4
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-5
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-6
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump thumbnail-7
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-1
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-2
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-3
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-4
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-5
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-6
JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump photo-7
US$ 35 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
N1612
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number N1612
Type Micro Motor
Certification CE
Torque 6NM
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 12v
Output Power 1.6kw
Continuous Current(A) 120A
Speed(RPM) 2350rpm
Commutation Brush

JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump

Product Description

 Specifications of 12V 1.6KW DC motors:

1) Type: N1612



2) Voltage: 12V



3) Power: 1.6KW



4) Speed: 2350RPM



5) Rotation: CW

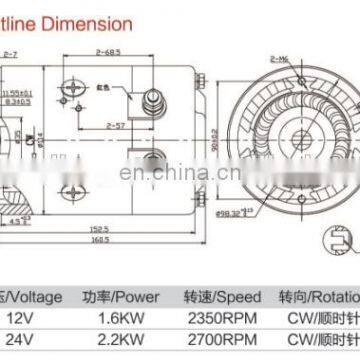

6) O.D. : 114mm



7) Operating mode: S3



8) Insulation Class: F



9) Protection Degree: IP 54



10) Torque:    6N.m







JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump

 JINLE Brand 12V 1.6KW DC Motor For Hydraulic PumpJINLE Brand 12V 1.6KW DC Motor For Hydraulic PumpJINLE Brand 12V 1.6KW DC Motor For Hydraulic PumpJINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump









TypeVoltagePowerSpeedRotaionO.D.Torque
W569212V1.6KW2500RPMCW114mm6N.m
W659912V1.7KW2720RPMCW114mm6N.m
W978912V1.6KW2500RPMCW114mm6N.m
ZD420148V2.0KW2700RPMCW114mm6N.m
ZD122312V2.0KW2800RPMCW114mm6N.m
ZD29324V2.2KW3000RPMCW114mm6N.m
ZD293024V2.2KW2700RPMCW114mm6N.m
ZD122112V2.0KW2900RPMCW114mm6N.m
ZD293124V2.0KW2600RPMCW114mm6N.m
ZD223A24V2.2KW2700RPMCW114mm6N.m
ZDY21124V0.8KW3650RPMCW80mm2N.m
ZDY21224V0.5KW2800RPMCW80mm2N.m
ZDY11212V0.5KW2300RPMCW80mm2N.m
ZDY11312V0.8KW3500RPMCW80mm2N.m
ZD2973A24V3.0KW3100RPMCW127mm10N.m
ZD237324V3.0KW2850RPMCW125mm10N.m
XQD-3C24V3.5KW3100RPMCW142mm10N.m
W879912V1.5KW2400RPMCCW114mm6N.m
W893512V1.5KW2460RPMCCW114mm6N.m
W895024V2KW2600RPMCCW114mm6N.m
W899912V1.6KW2500RPMCCW114mm6N.m
W940524V1.5KW2400RPMCCW114mm6N.m
ZD193A12V1.6KW2500RPMCCW114mm6N.m
ZD223A24V2.2KW2700RPMCCW114mm6N.m
ZD293A24V2.2KW3000RPMCCW114mm6N.m
QZD241124V1.1KW2160RPMBI-DIRECTIONAL127mm10N.m
QZD484148V4.0KW2030RPMBI-DIRECTIONAL170mm17N.m
W892312V1.4KW2250RPMBI-DIRECTIONAL114mm6N.m
W8930B12V1.5KW2380RPMBI-DIRECTIONAL114mm6N.m
W894112V1.5KW2400RPMBI-DIRECTIONAL114mm6N.m
W914412V1.5KW2150RPMBI-DIRECTIONAL114mm6N.m
W792312V1.2KW1700RPMBI-DIRECTIONAL114mm6N.m
125912V50W500RPMCW56mm0.5N.m
N246324V200W3000RPMBI-DIRECTIONAL63mm1N.m
ZDY11812V1.2KW3000RPMCW80mm2N.m
ZDY21824V1.2KW3000RPMCW80mm2N.m
ZDY41848V1.2KW3000RPMCW80mm2N.m
MA08XXN12V0.8KW3200RPMBI-DIRECTIONAL80mm2N.m
MB08XXN24V0.8KW3000RPMBI-DIRECTIONAL80mm2N.m
ZDY211S24V0.8KW3100RPMCCW80mm2N.m
N161212V1.6KW2350RPMCW114mm6N.m
N202424V2.2KW2700RPMCW114mm6N.m
ZD123012V1.6KW2350RPMCW114mm6N.m
ZD242024V2.2KW2700RPMCW114mm6N.m
ZD620260V2.0KW2600RPMCW114mm6N.m
ZD720272V2KW2600RPMCW114mm6N.m
MD1216012V1.6KW2700RPMCW114mm6N.m
ZD124112V1.6KW2350RPMCW114mm6N.m
ZD294124V2.2KW2700RPMCW114mm6N.m
N302424V3.0KW3000RPMCW127mm10N.m





Packaging & Shipping

 JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump





Our Services

 Jinle DC MOTOR

1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience





Certifications

     JINLE Brand 12V 1.6KW DC Motor For Hydraulic Pump













Company Information



Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.



We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.



So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.





FAQ



1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops



2. Certificates

CE, ISO9001 etc



3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders



4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
