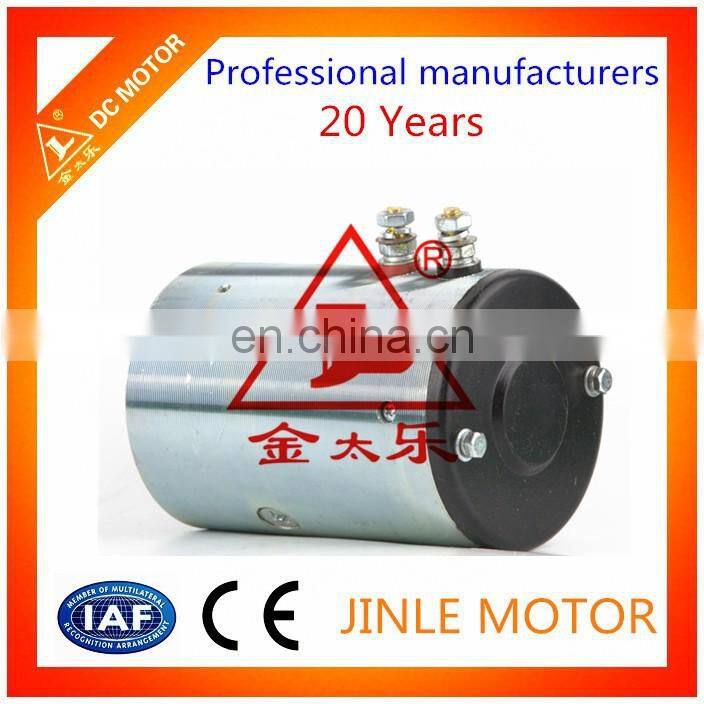

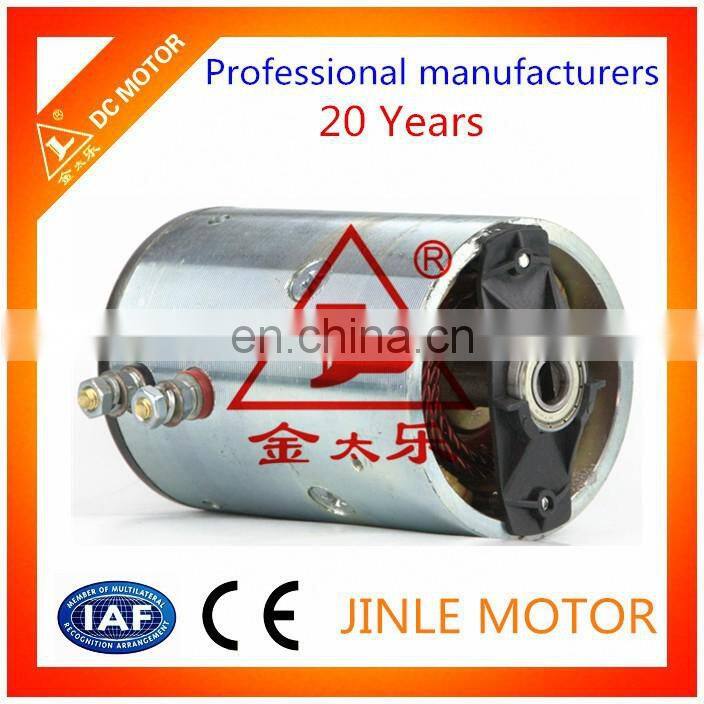

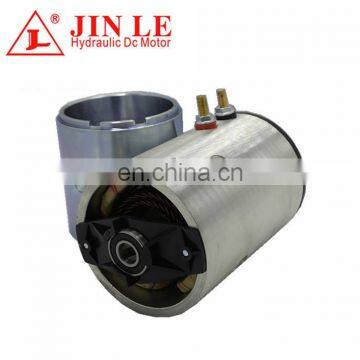

24v 2.2kw 3000rpm Ccw Hydraulic dc Motor for Pump

FOB Price

US$ 40 - 48 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Brand Name	Jinle		Place of Origin	Jiangsu, China
Model Number	ZD293A		Type	Micro Motor
Certification	CE		Torque	6NM
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance		Construction	Series Wound
Efficiency	IE 4		Protect Feature	Drip-proof
Voltage(V)	24v		Output Power	2.2kw, 2.2KW
Continuous Current(A)	120A		Speed(RPM)	3000RPM
Commutation	Brush

Product Description

24v 2.2kw 3000rpm ccw hydraulic dc motor for pump

Product Description

Specifications

Type	ZD293A
Voltage	24V
Power	2.2KW
Speed	3000RPM
Rotation	CCW
O.D.	114mm
Operating Mode	S3
Insulation	F

OHTER TYPES

Type	Voltage	Power	Speed	Rotaion	O.D.
W5692	12V	1.6KW	2500RPM	CW	114mm
W6599	12V	1.7KW	2720RPM	CW	114mm
W9789	12V	1.6KW	2500RPM	CW	114mm
ZD4201	48V	2.0KW	2700RPM	CW	114mm
ZD1223	12V	2.0KW	2800RPM	CW	114mm
ZD293	24V	2.2KW	3000RPM	CW	114mm
ZD2930	24V	2.2KW	2700RPM	CW	114mm
ZD1221	12V	2.0KW	2900RPM	CW	114mm
ZD2931	24V	2.0KW	2600RPM	CW	114mm
ZD223A	24V	2.2KW	2700RPM	CW	114mm
ZDY211	24V	0.8KW	3650RPM	CW	80mm
ZDY212	24V	0.5KW	2800RPM	CW	80mm
ZDY112	12V	0.5KW	2300RPM	CW	80mm
ZDY113	12V	0.8KW	3500RPM	CW	80mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2373	24V	3.0KW	2850RPM	CW	125mm
XQD-3C	24V	3.5KW	3100RPM	CW	142mm
Type	Voltage	Power	Speed	Rotaion	O.D.
W8799	12V	1.5KW	2400RPM	CCW	114mm
W8935	12V	1.5KW	2460RPM	CCW	114mm
W8950	24V	2KW	2600RPM	CCW	114mm
W8999	12V	1.6KW	2500RPM	CCW	114mm
W9405	24V	1.5KW	2400RPM	CCW	114mm
ZD193A	12V	1.6KW	2500RPM	CCW	114mm
ZD223A	24V	2.2KW	2700RPM	CCW	114mm
ZD293A	24V	2.2KW	3000RPM	CCW	114mm
Type	Voltage	Power	Speed	Rotaion	O.D.
QZD2402	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2409	24V	0.9KW	2150RPM	BI-DIRECTIONAL	126mm
QZD2411	24V	1.1KW	2160RPM	BI-DIRECTIONAL	127mm
QZD2412	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2422	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2445	24V	4.5KW	1750RPM	BI-DIRECTIONAL	180mm
QZD4840	48V	4.8KW	1750RPM	BI-DIRECTIONAL	218mm
QZD4841	48V	4.0KW	2030RPM	BI-DIRECTIONAL	170mm
W8923	12V	1.4KW	2250RPM	BI-DIRECTIONAL	114mm
W8930B	12V	1.5KW	2380RPM	BI-DIRECTIONAL	114mm
W8941	12V	1.5KW	2400RPM	BI-DIRECTIONAL	114mm
W9144	12V	1.5KW	2150RPM	BI-DIRECTIONAL	114mm
W7923	12V	1.2KW	1700RPM	BI-DIRECTIONAL	114mm

Packaging & Shipping

Our Services

1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience

Certifications

Company Information

Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.

We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.

FAQ

1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates

CE, ISO9001 etc

3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
