Home > Electrical & Electronics > Electric Motor > DC Motor > JINLE Brand CE Certified 24V Motor DC With 100% Copper Wire
US$ 45 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
China
Model Number:
ZD293A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic 1KW Motor 24V DCUS$ 140 - 150MOQ: 1 Piece -
Factory Selling Brush Electric Motor Hydraulic DCUS$ 45 - 50MOQ: 1 Piece
-
100% Copper Wire 2KW Motor for Electric Forklift DCUS$ 45 - 50MOQ: 1 Piece
-
Factory Price 1500 Watt Motor DCUS$ 45 - 50MOQ: 1 Piece
-
Forklift 1500 Watt DC Brush MotorUS$ 45 - 50MOQ: 1 Piece
Brand Name
Jinle
Place of Origin
China
Model Number
ZD293A
Type
Micro Motor
Certification
CE
Torque
6N.m
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Series Wound
Efficiency
IE 4
Protect Feature
Drip-proof
Speed(RPM)
3000RPM
Commutation
Brush
Product Description

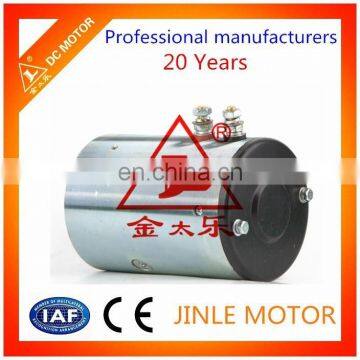

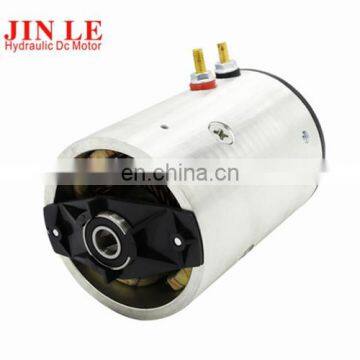

JINLE Brand CE Certified 24V Motor DC with 100% Copper Wire
Model: ZD293A
Parameters:
| Model | Voltage(V) | Power(KW) | Speed(RPM) | Rotation | O.D(MM) | Duty |
| QZD2402 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2409 | 24 | 0.9 | 2150 | Bi-directional | 126 | S1 |
| QZD2411 | 24 | 1.1 | 2160 | Bi-directional | 127 | S1 |
| QZD2412 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2422 | 24 | 2.2 | 1750 | Bi-directional | 164 | S1 |
| QZD2445 | 24 | 4.5 | 1750 | Bi-directional | 180 | S1 |
| QZD4840 | 48 | 4.8 | 1750 | Bi-directional | 218 | S1 |
| QZD4841 | 48 | 4 | 2030 | Bi-directional | 170 | S1 |
| ZD2973A | 24 | 3 | 3100 | CW | 127 | S2 |
| ZD2973 | 24 | 3 | 3100 | CW | 127 | S2 |
| XQD-3C | 24 | 4 | 3100 | CW | 142 | S2 |
| W5692 | 12 | 1.6 | 2500 | CW | 114 | S3 |
| W6599 | 12 | 1.7 | 2720 | CW | 114 | S3 |
| W8799 | 12 | 1.5 | 2400 | CCW | 114 | S3 |
| W8923 | 12 | 1.4 | 2250 | Bi-directional | 114 | S3 |
| W8930B | 12 | 1.5 | 2380 | Bi-directional | 114 | S3 |
| W8935 | 12 | 1.5 | 2460 | CCW | 114 | S3 |
| W8941 | 12 | 1.5 | 2400 | Bi-directional | 114 | S3 |
| W8950 | 24 | 2 | 2600 | CCW | 114 | S3 |
| W8999 | 12 | 1.6 | 2500 | CCW | 114 | S3 |
| W9144 | 12 | 1.5 | 2150 | Bi-directional | 114 | S3 |
| W9405 | 24 | 1.5 | 2400 | CCW | 114 | S3 |
| W9789 | 12 | 1.6 | 2500 | CW | 114 | S3 |
| ZD193A | 12 | 1.6 | 2500 | CCW | 114 | S3 |
| ZD4201 | 48 | 2 | 2700 | CW | 114 | S3 |
| ZD223A | 24 | 2.2 | 2700 | CCW | 114 | S3 |
| ZD1223 | 12 | 2 | 2800 | CW | 114 | S3 |
| ZD293A | 24 | 2.2 | 3000 | CCW | 114 | S3 |
| ZD293 | 24 | 2.2 | 3000 | CW | 114 | S3 |
| ZD2930 | 24 | 2.2 | 2700 | CW | 114 | S3 |
| ZD1221 | 12 | 2 | 2900 | CW | 114 | S3 |
| ZD2931 | 24 | 2 | 2600 | CW | 114 | S3 |
| W7923 | 12 | 1.2 | 1700 | Bi-directional | 114 | S3 |
| ZD223 | 24 | 2.2 | 2700 | CW | 114 | S3 |
| ZDY113 | 12 | 0.8 | 3500 | CW | 80 | S3 |
| ZD2373 | 24 | 3 | 2850 | CW | 125 | S3 |
Product advantages:
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
Certifications
Packaging & Shipping
Company Information
Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.
We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.
So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.
Contact Information
FAQ
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
