BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike photo-1

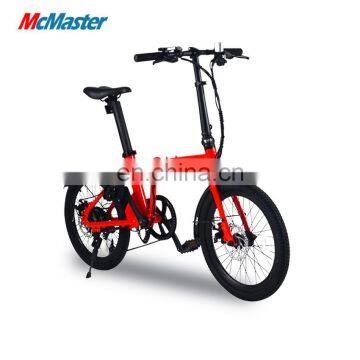

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike photo-2

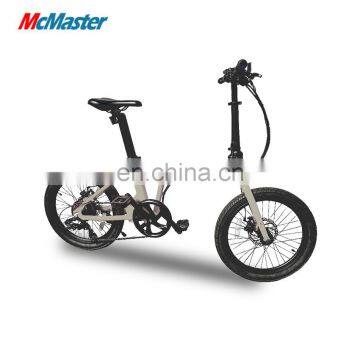

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike photo-3
BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike photo-4

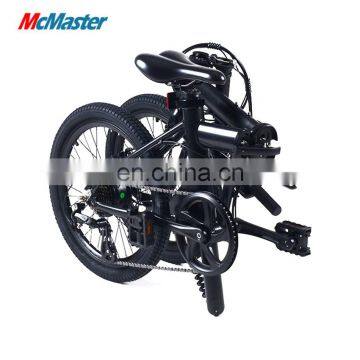

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike photo-5
US$ 350 - 610 MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BEBHM20BM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Mcmaster
Place of Origin Jiangsu, China
Model Number BEBHM20BM
Voltage 36V
Motor Brushless
Power Supply Lithium Battery
Foldable Yes
Max Speed 30-50km/h
Range per Power 31 - 60 km
Frame Material Aluminum Alloy
Wattage 251 - 350w

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike





 BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike

Product Name BEBHM20BM 20inch 250W(350w) brushless Motor 36V 5.2ah (7ah)collapsible bike
Material Aluminiumm alloy frame, Lithium battery
Function Fold up typre battery

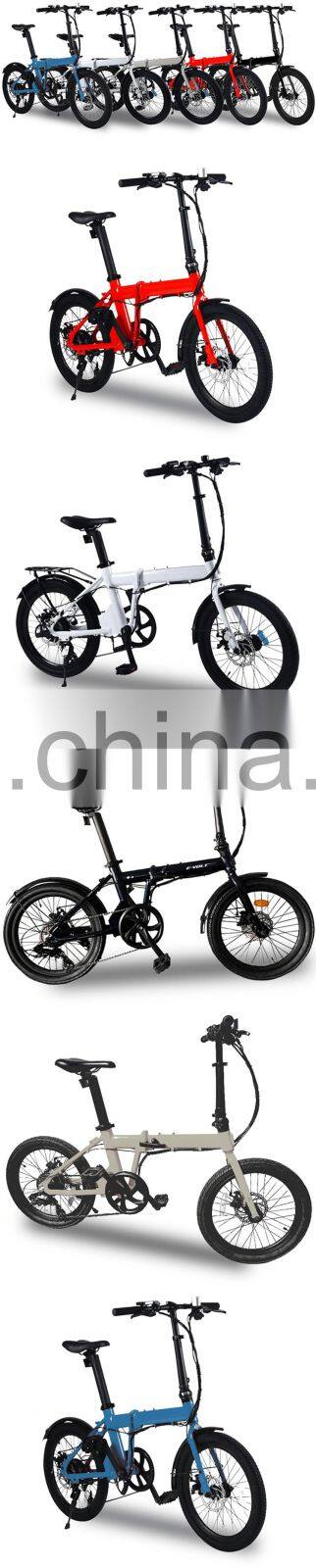

Colour Red / White / Black / Light Grey
Wheel Size 16 inch / 20 inch
Package one unit one box.  With spare parts and repair tools inside.
Battery China made Lithium battery 36V 5.2ah (Samsung battery 7ah for option)
Bike frame 3 step easy folding
Motor 250W(350W option) brushless high speed wheel motor
Display Clear LCD display
Brake High quality Disc brakes
Patent Seat post hidden battery
Handle Bar Aluminum alloy handlebar
Charger We will send the charger plug according to different countries demand
Charging time 3 hours
warranty 1 year



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike





BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



 BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



Basic Information
Expand Size 1500*580*1100mm Package Size 1510*270*730mm(standard)

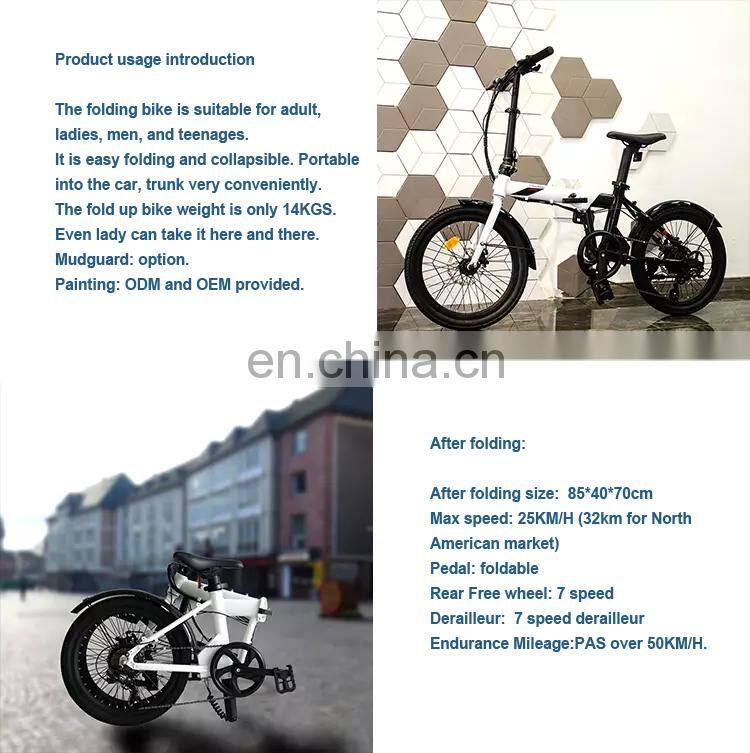

Folding Size 850*405*700mm 850*405*700mm(folding)
Net Weight 17.5 kgs Gross Weight 25 kgs
Cycling System 5 PAS +Cruise Wheel Diameter 20 inch
Endurance Mileage PAS ≥25 kms Max Speed 25 km/h
Standard Load 100 kgs Charging Time About 3 h
Color Black,red,white

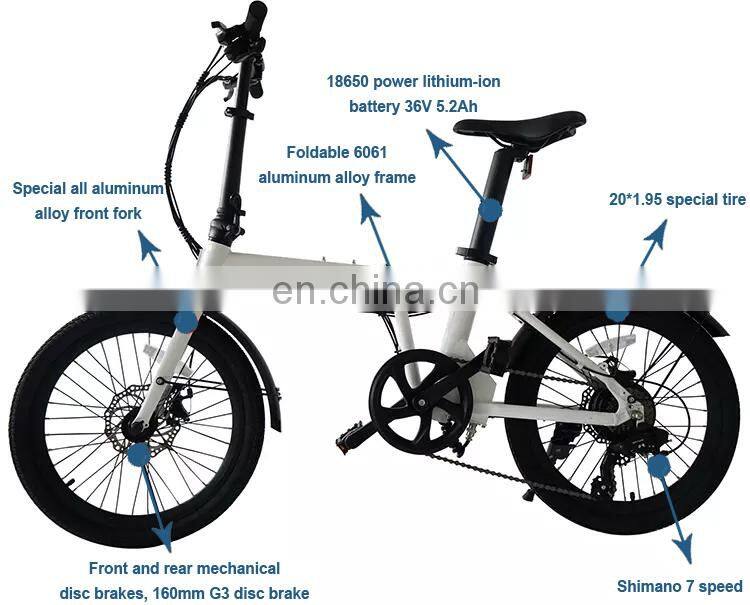

Configuration
Frame Special aviation aluminum alloy frame Front Fork Special all aluminum alloy front fork
Battery 36V  5.2Ah BMS Patent seat tube battery system
Handlebar Aluminum alloy handlebar Handle stem Adjustable aluminum alloy
Handle Grip High-density EVA shock-absorbing and non-slip comfortable handle Brake Handle All aluminum alloy disc brake special brake lever
Motor 250W brushless high speed motor Saddle Ergonomic comfort saddle
Display KUNTENG LCD Smart Display Brake Front and rear mechanical disc brakes, 160mm G3 Disc brake
Controller Kunteng Sine wave controller Tire 20*1.95 special tire
Rims Double-layer aluminum alloy disc brake cutter ring 13G 36H Rear Free Wheel SHIMANO 7 Speed
Gear Crank Prowheel 48T Derailleur (R) SHIMANO 7 Speed
Handle (R) MIRCOSHIFT 7S/P Chain KMC special chain
Rear Hub Sigma all aluminum alloy disc brake hub Pedal Folding non-slip pedal

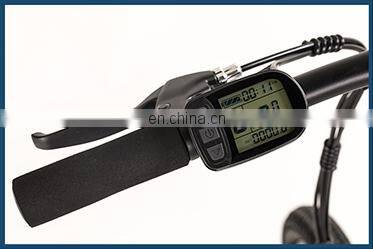

 BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric BikeLCD display

5 lever PAS 2 mode riding style

Speed: 25KM-32KM/Hour as per different countries demands.

Multi-function LCD display, combine 5 class PAS and cruise system If you need some exercise, you can ride at pedals mode. If won't consume energy, at cruise control mod. The sensor could detect every intention precisely.

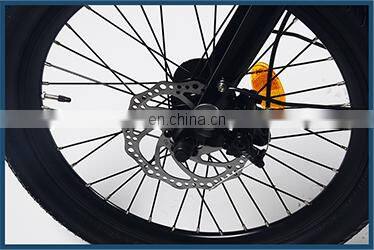

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric BikeDisc Brake

Front and Rear Disc brake

160mm G3 disc brake

Ensure the rider with safe riding felling.

Front and rear disc break keep you safe from any emergency with a break distance within 3 meters. Also e-bike lever is another safe keeper on this bike you can find, it shut down the power system right away if you take the break.



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric BikeBattery

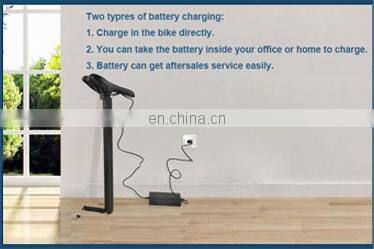

To make E-bike neat and unique ,we created seat post lithium battery as our power system.Most people won’t recognize it’s an ebike at their first sight. And BMS system is also important . It keeps your battery safe from over-charging,over outlet and high temperature. Also ,BMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it in the bike or separately in your room.

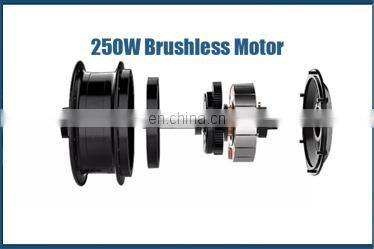

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric BikeMotor

1.Customized 250W high speed geared brushless motor

2.Weight only 2.2KG but with 40 N.M torque, So you can uphill over 18°. It’s so powerful that you don’t have to worry about hills or against wind without any sweat. What’s more, with a build-in clutch, you will never feel any magnetic resistance when ride without any power. it’s a pure, comfortable bike.



 BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike

BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



Bubble bag+EPE foam+inner box+outer 7 layers corrugated cartons.

Packing Size:133*230*68cm G.W 23 KG.

Container Load:115 pcs/20" GP



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike



BEBHM20BM 20 Inch 36V Foldable Electric Bicycle With LCD Display, Portable Hidden Lithium Battery Electric Bike
